Description

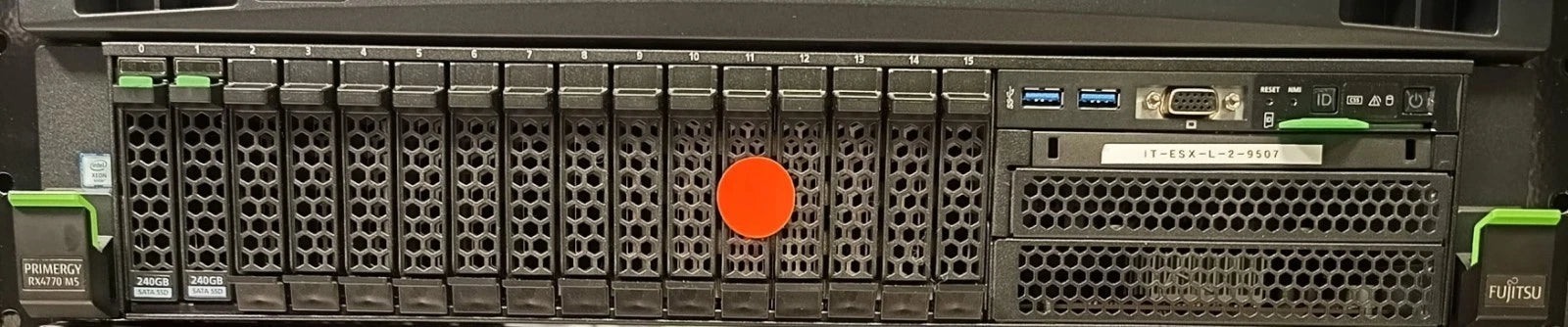

Fujitsu PRIMERGY RX4770 M5 2U rack server with dual 240GB SSDs, 10GbE NIC, RAID controller, PCIe risers, and redundant 1600W PSUs. Enterprise-grade performance.
| Specification | Details |
|---|---|
| Brand | Fujitsu |
| Model | PRIMERGY RX4770 M5 |
| Form Factor | 2U Rackmount |
| Processor | Not Installed (supports Intel Xeon Scalable CPUs) |
| Memory | Not Installed (supports DDR4 ECC Registered DIMMs) |
| Storage | 2 × Samsung 240GB SATA SSDs (MZ7KH240HAHQ-00005) |
| Networking | Intel X557-T2 Dual-Port 10GbE OCP NIC |
| RAID Controller | 8-Port RAID with 1GB Cache (P/N: D3216-A23) |
| Expansion | 2 × PCIe Riser Cards (P/N: A3C40209286, A3C40209287) |
| Cooling | 2 × Heatsinks (P/N: A3C40202266) |
| Power Supply | 2 × 1600W Platinum Redundant PSUs (P/N: A3C40195707) |
| Management | iRMC S5 Integrated Remote Management |
Product Features
-
Enterprise-class 2U rackmount server designed for mission-critical workloads
-
Supports 4-socket Intel Xeon Scalable CPUs (not included in this config)
-
Pre-installed with 2 × 240GB Samsung enterprise-grade SSDs
-
High-speed networking with dual-port 10GbE Intel X557-T2 OCP NIC
-
8-port RAID controller with 1GB cache for advanced storage management
-
Expandable architecture with 2 PCIe riser cards
-
Includes dual 1600W Platinum hot-swap power supplies for maximum uptime
-
Built-in iRMC S5 remote management for complete control from anywhere
General Product Information

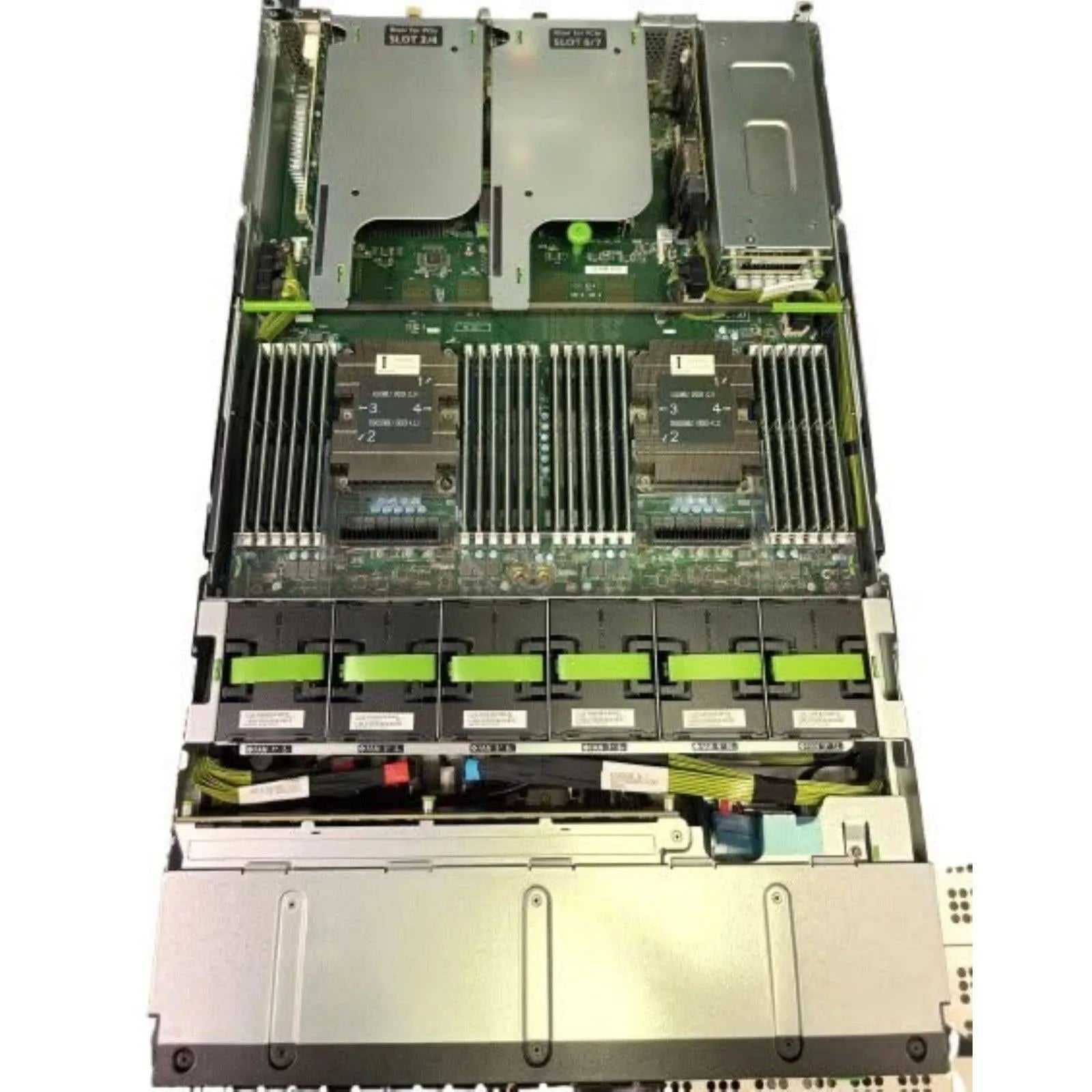

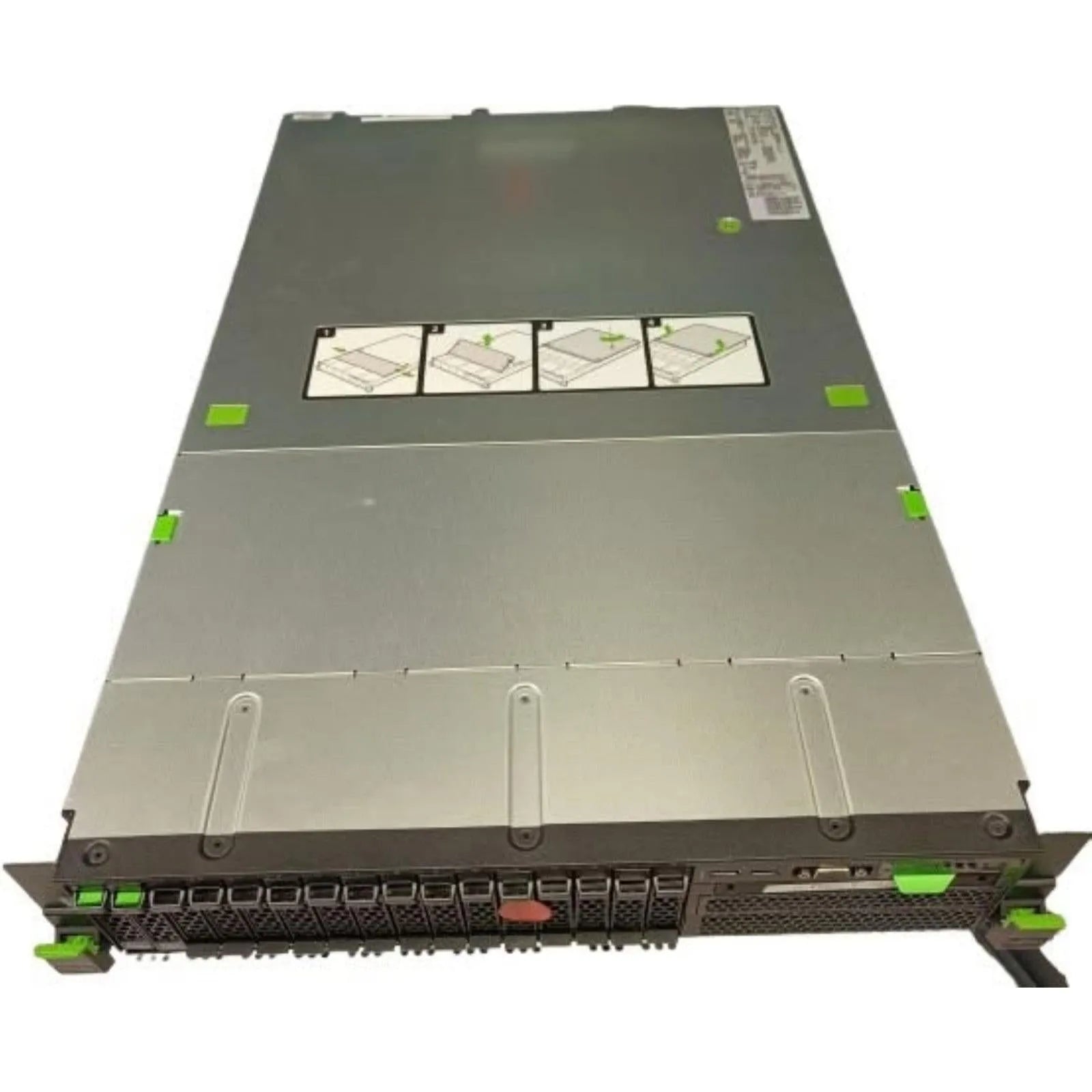

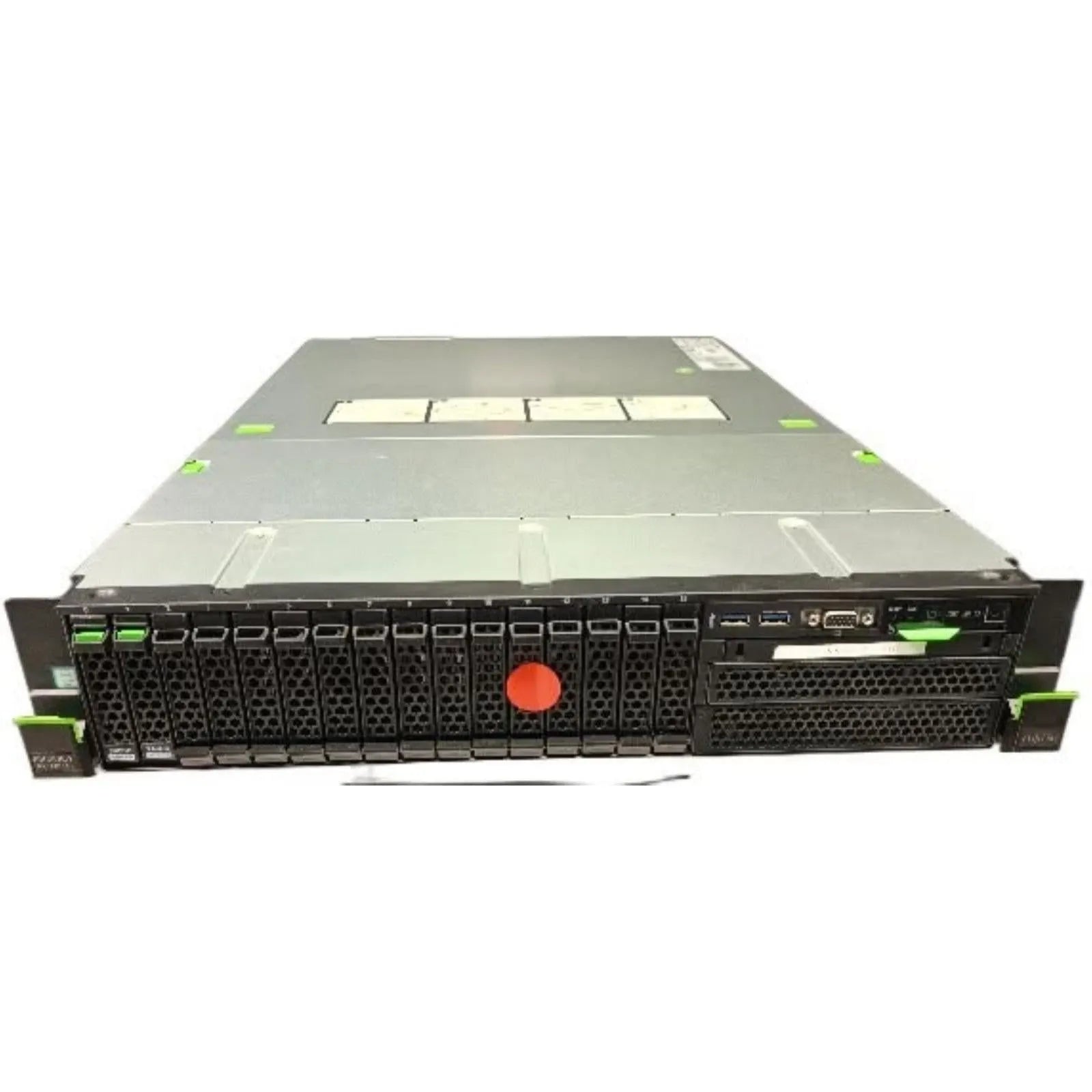

The Fujitsu PRIMERGY RX4770 M5 is a scalable 2U enterprise rackmount server engineered for high-performance computing, virtualization, and mission-critical business applications. Supporting up to four Intel Xeon Scalable processors and large memory footprints, the RX4770 M5 is built to power the most demanding IT environments.
This configuration is delivered as a flexible barebones system, pre-installed with 2 × Samsung 240GB SATA SSDs for reliable storage. It includes an Intel X557-T2 dual-port 10GbE OCP NIC for high-speed networking, along with an 8-port RAID controller (1GB cache) to manage enterprise storage workloads with efficiency and redundancy.
The server also features 2 PCIe riser cards for expansion, dual heatsinks for CPU-ready cooling, and dual 1600W Platinum redundant power supplies for energy efficiency and resilience. With Fujitsu’s iRMC S5 management module, IT administrators gain full remote control for monitoring, updates, and troubleshooting.
Whether deployed as a database server, virtualization host, SAP HANA platform, or large-scale analytics engine, the Fujitsu PRIMERGY RX4770 M5 provides the performance, scalability, and reliability needed in modern data centers.
Technical Specifications Table
| Category | Specification |
|---|---|
| Brand | Fujitsu |
| Model | PRIMERGY RX4770 M5 |
| Form Factor | 2U Rackmount |
| CPU Support | Up to 4 × Intel Xeon Scalable processors (not included) |
| Memory Support | DDR4 ECC Registered DIMMs (capacity up to 6TB depending on config) (not included) |
| Storage | 2 × Samsung 240GB SATA SSDs (MZ7KH240HAHQ-00005) |
| RAID Controller | 8-Port RAID with 1GB Cache (D3216-A23) |
| Networking | Intel X557-T2 Dual-Port 10GbE OCP NIC |
| Expansion Slots | PCIe Gen3 via riser cards (A3C40209286, A3C40209287) |
| Cooling | 2 × CPU heatsinks (A3C40202266) + redundant fans |
| Power Supply | 2 × 1600W Platinum PSUs (hot-swappable, redundant) |
| Management | Fujitsu iRMC S5, IPMI, SNMP |
| Operating Systems | VMware ESXi, Oracle Linux, RHEL, SUSE, Windows Server, Hyper-V |
Compatible Products
-
Intel Xeon Scalable CPUs (Platinum, Gold, Silver series)
-
DDR4 ECC Registered DIMM memory kits
-
Fujitsu-certified hot-swap storage drives (SAS/SATA/NVMe)
-
Enterprise switches from Cisco, Arista, or Juniper
-
VMware vSphere, Microsoft Hyper-V, Red Hat Virtualization
-
SAP HANA and enterprise analytics software
Ideal Use Cases
-
Data center virtualization (VMware, Hyper-V, Oracle VM)
-
Enterprise databases (Oracle, SQL Server, SAP HANA)
-
Big data and analytics workloads
-
Cloud computing environments
-
High-performance computing clusters
-
Large-scale business applications requiring high uptime
Comparison Angle
The RX4770 M5 builds on Fujitsu’s PRIMERGY legacy with greater expandability, Intel Xeon Scalable processor support, and DDR4 memory architecture. Compared to earlier RX-series models, it delivers higher networking throughput with 10GbE, improved storage performance with SAS/SATA/NVMe, and energy efficiency with Platinum-rated 1600W PSUs.
Cross-Sell / Upsell Suggestions
-
Intel Xeon Scalable processors (Platinum/Gold/Silver)
-
DDR4 ECC Registered memory upgrades
-
Enterprise-class SAS or NVMe SSDs
-
Fujitsu-certified RAID expansion modules
-
Rackmount accessories (rails, cable management)
-
Compatible enterprise switches and storage arrays
