Description
Oracle ZFS Storage ZS5-ES with 40GbE dual-port HCA, 8 & 16-port SAS-3 HBAs, PCI-E risers, cluster heartbeat assembly, dual 600W PSUs. Enterprise storage.
Product Features
-
Enterprise-grade Oracle ZFS Storage ZS5-ES system.
-
40GbE dual-port HCA adapter for high-speed networking.
-

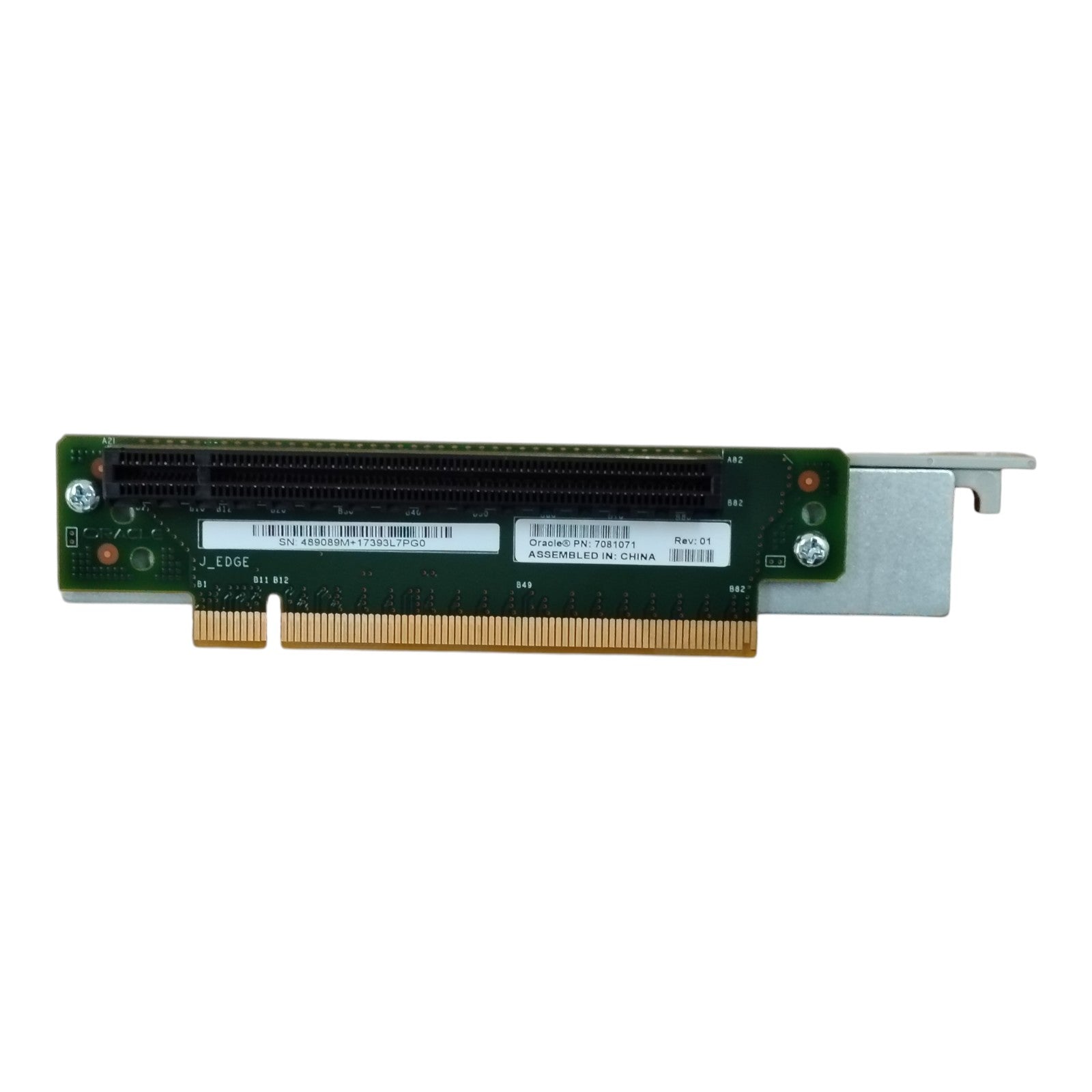

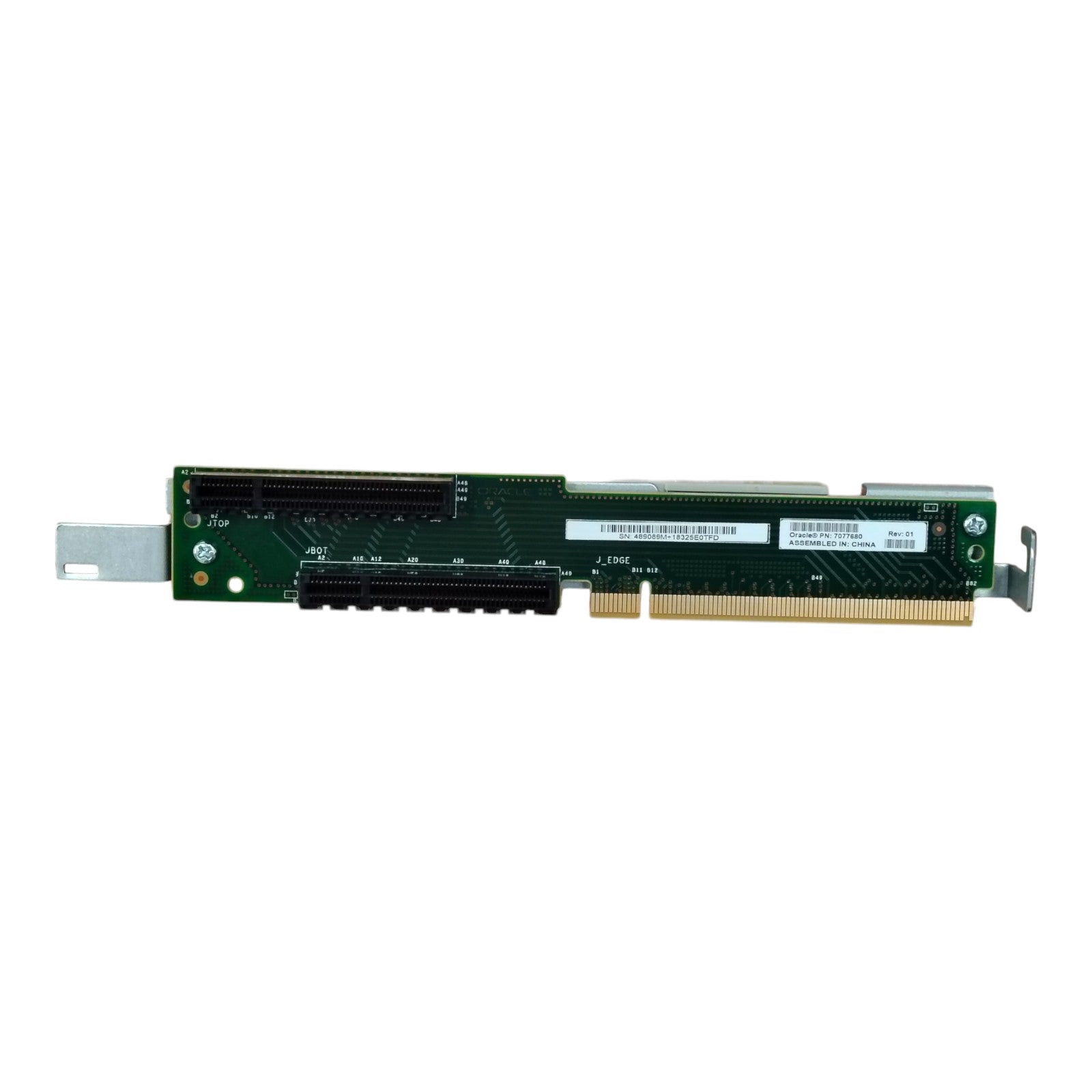

Multiple PCI-E riser cards for flexible expansion.
-

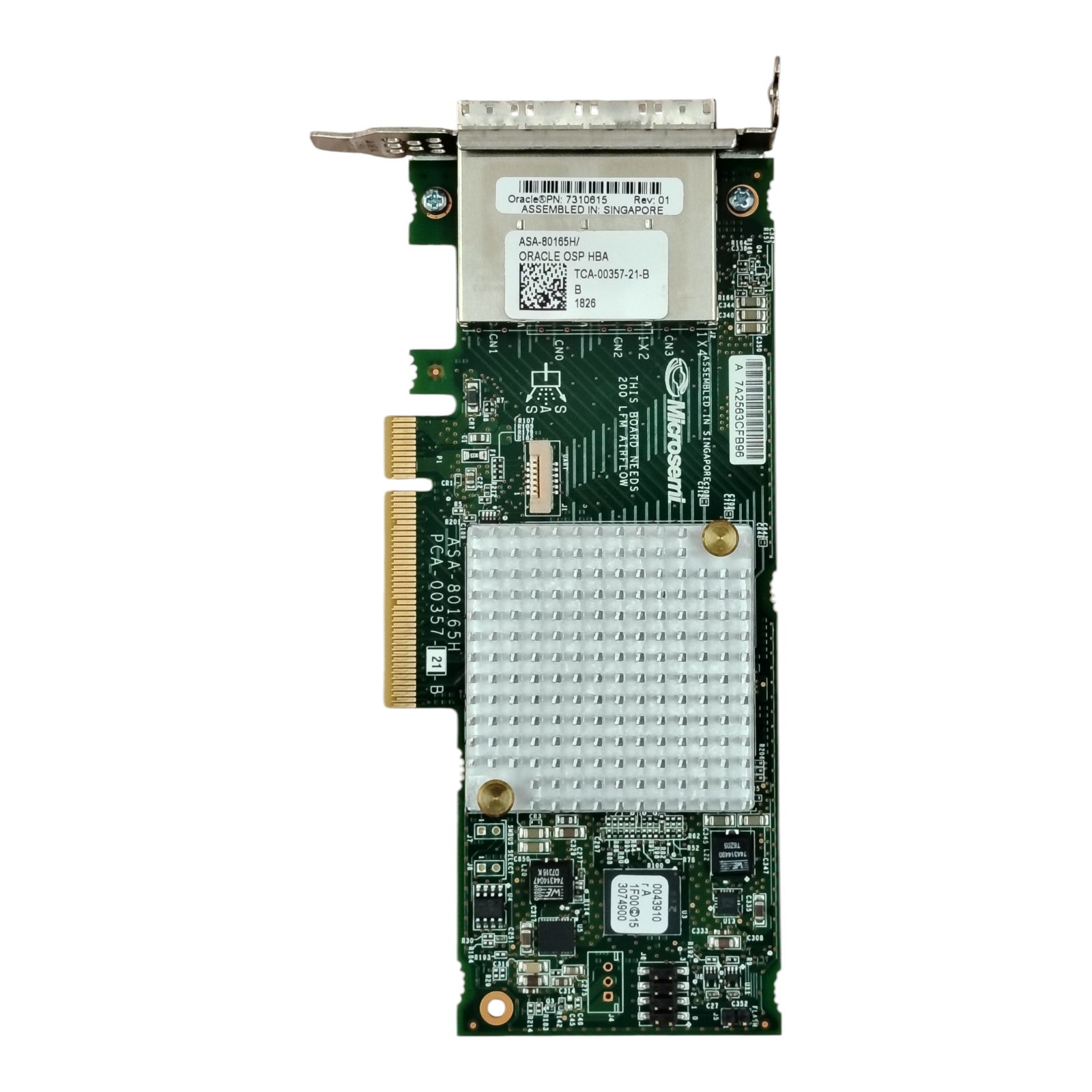

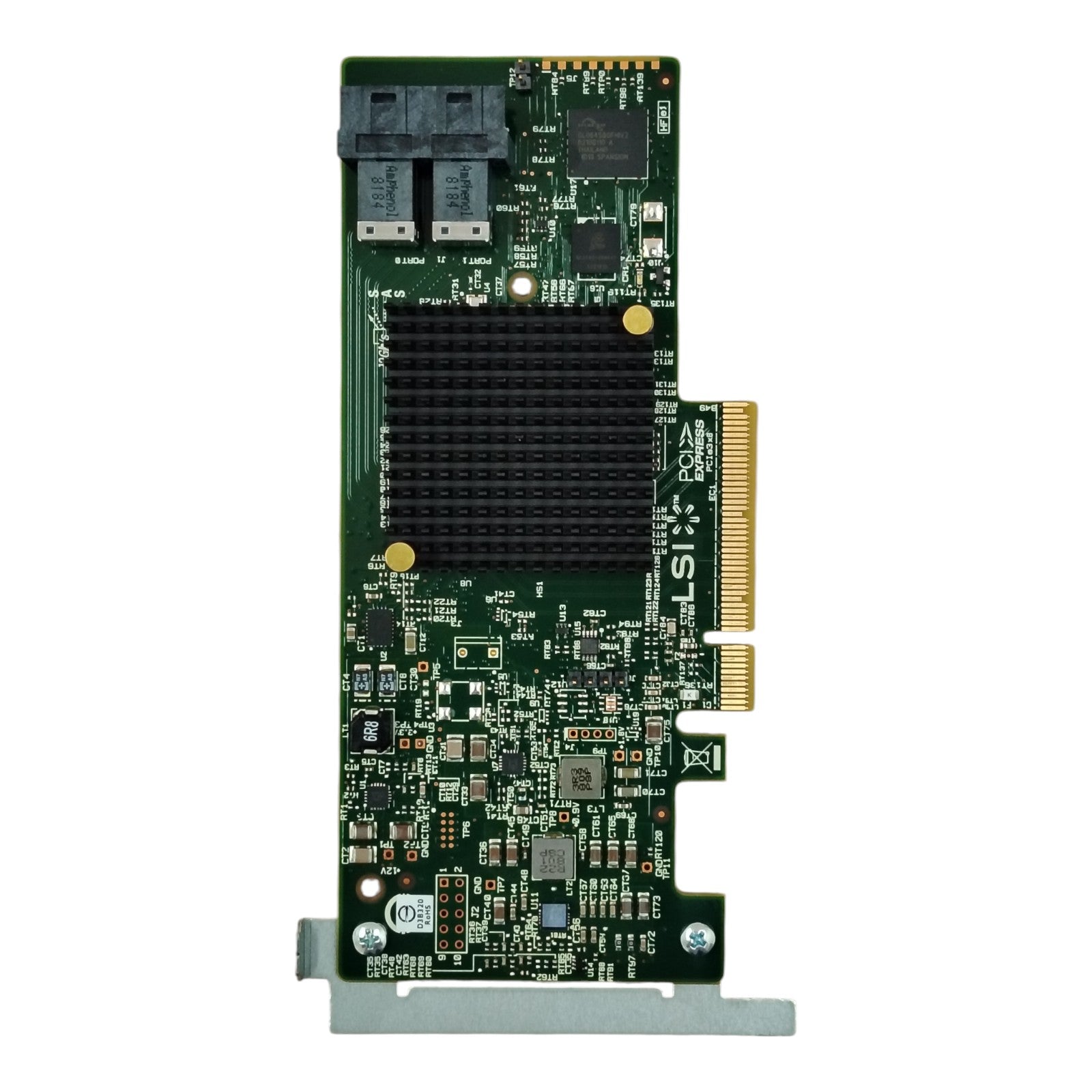

8-port & 16-port SAS-3 HBA adapters for robust storage connectivity.
-
Cluster heartbeat assembly supports high availability and failover.
-
Dual 600W redundant PSUs for reliable 24/7 operations.
-
Optimized for enterprise SAN/NAS storage scaling.
-
Rackmount form factor designed for modern data centers.
General Product Information

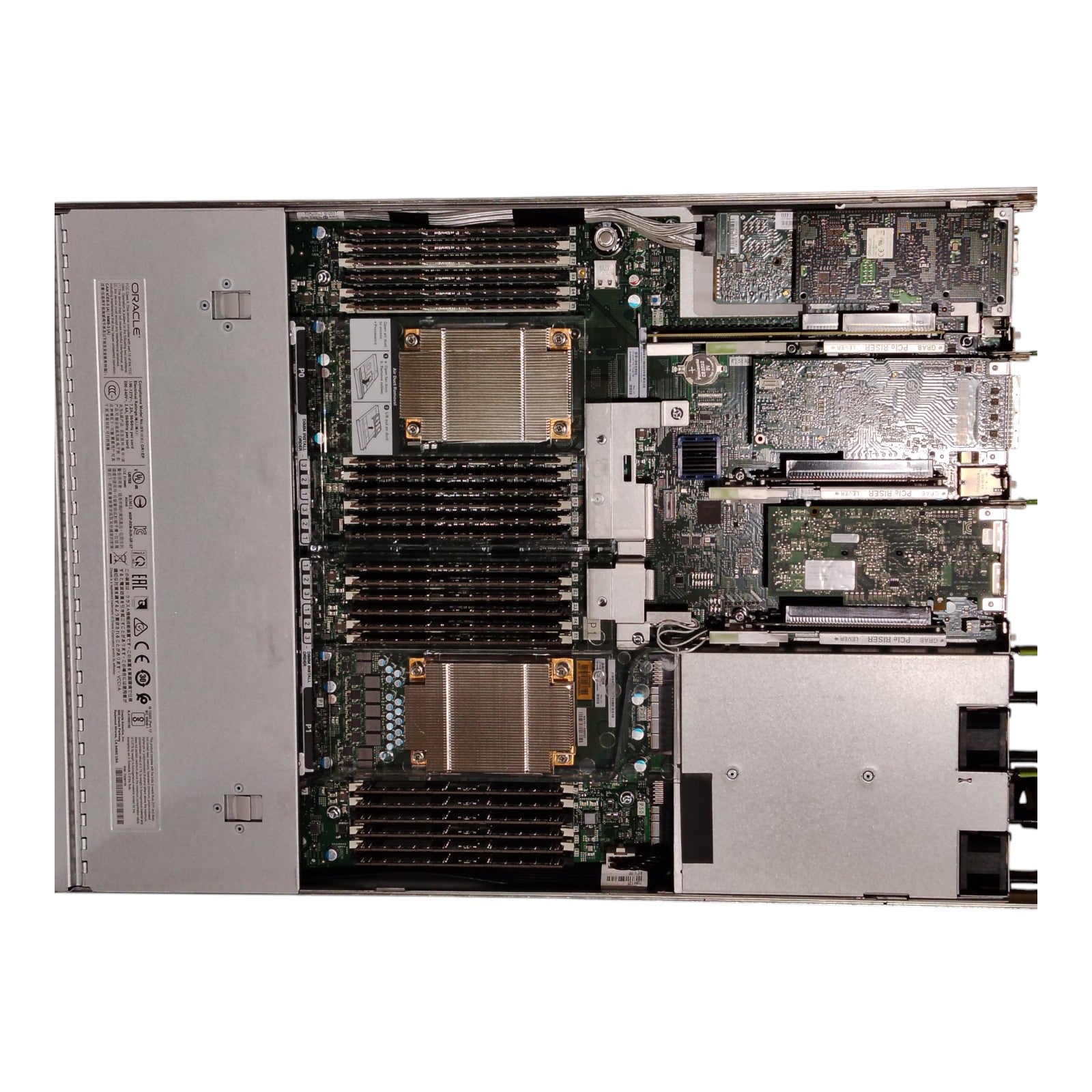

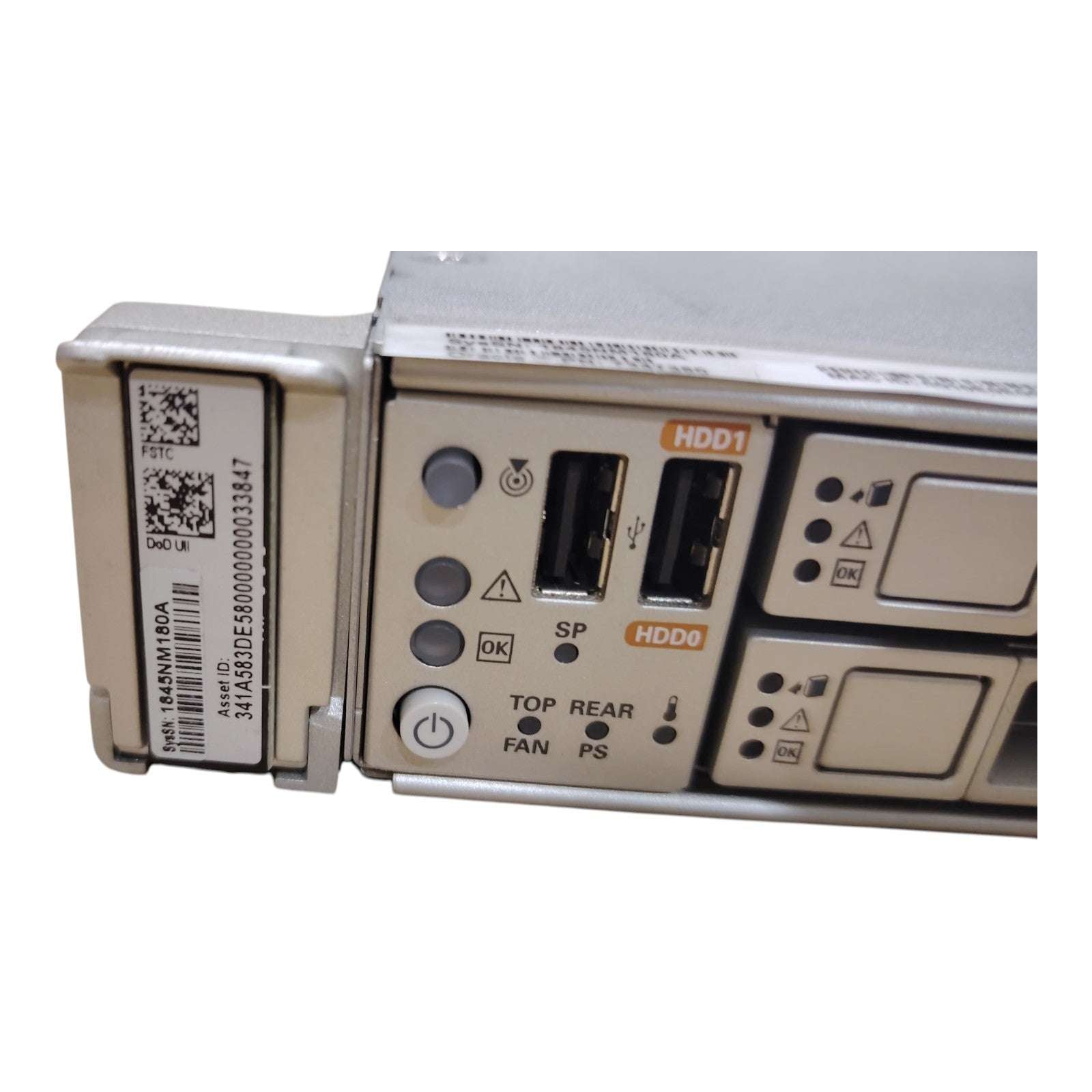

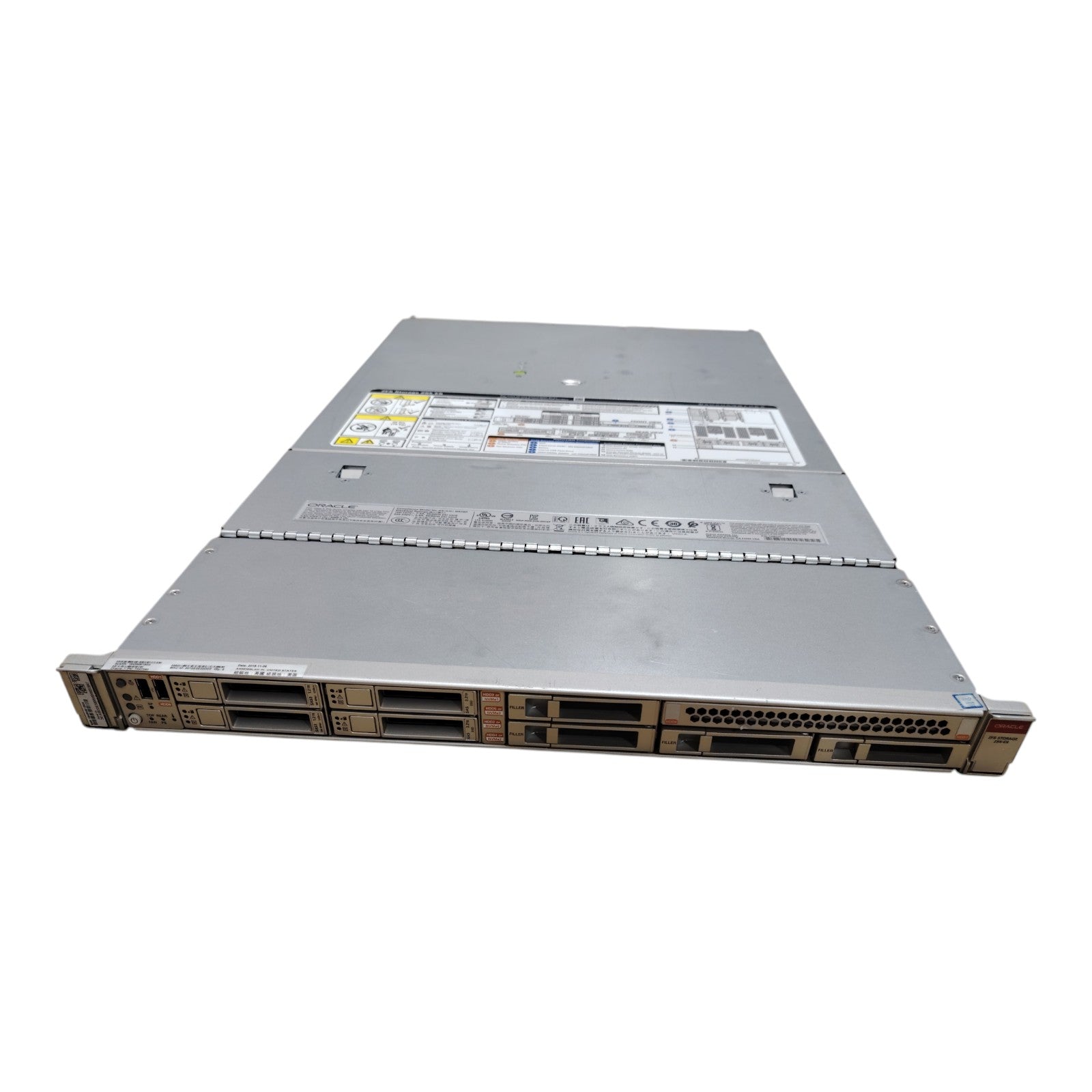

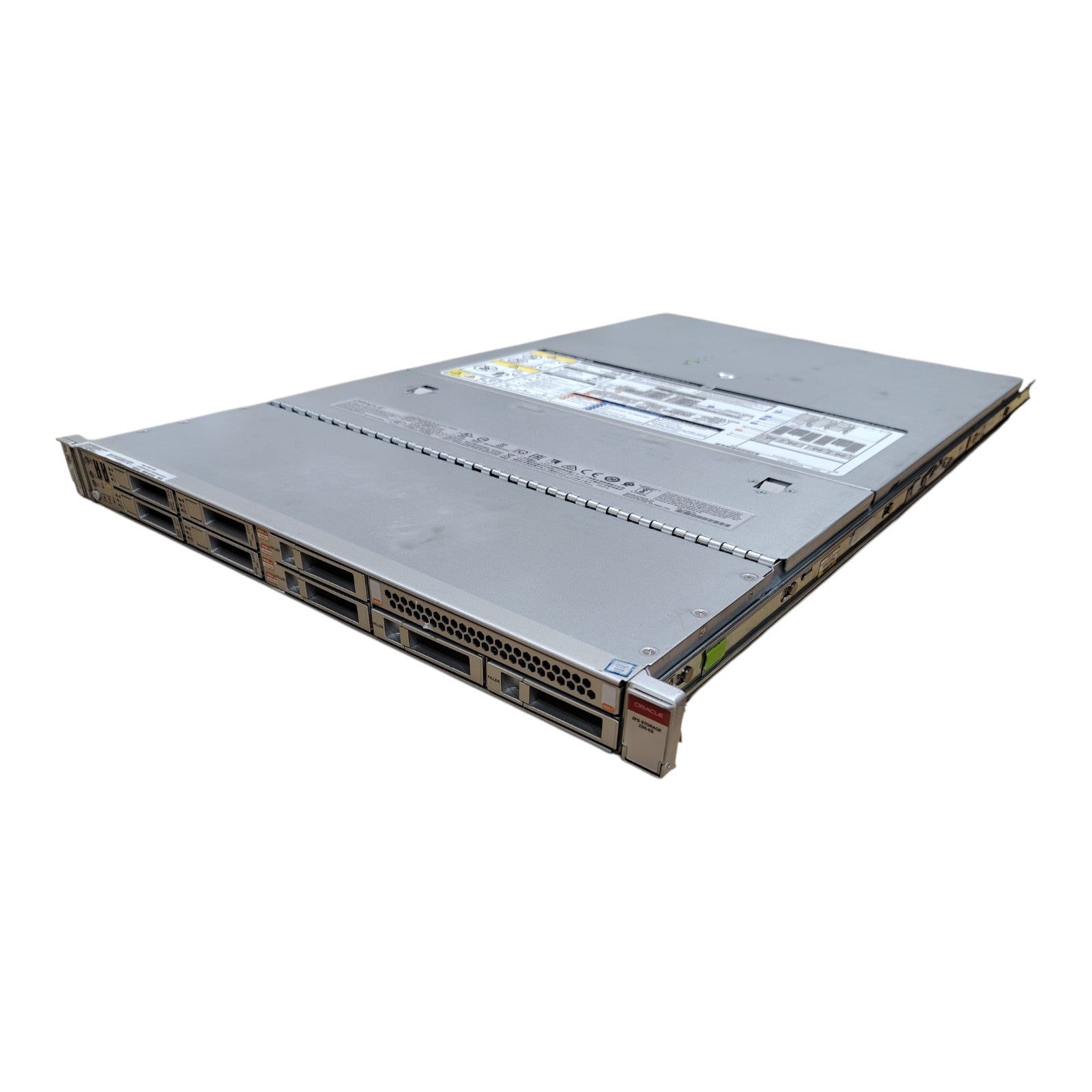

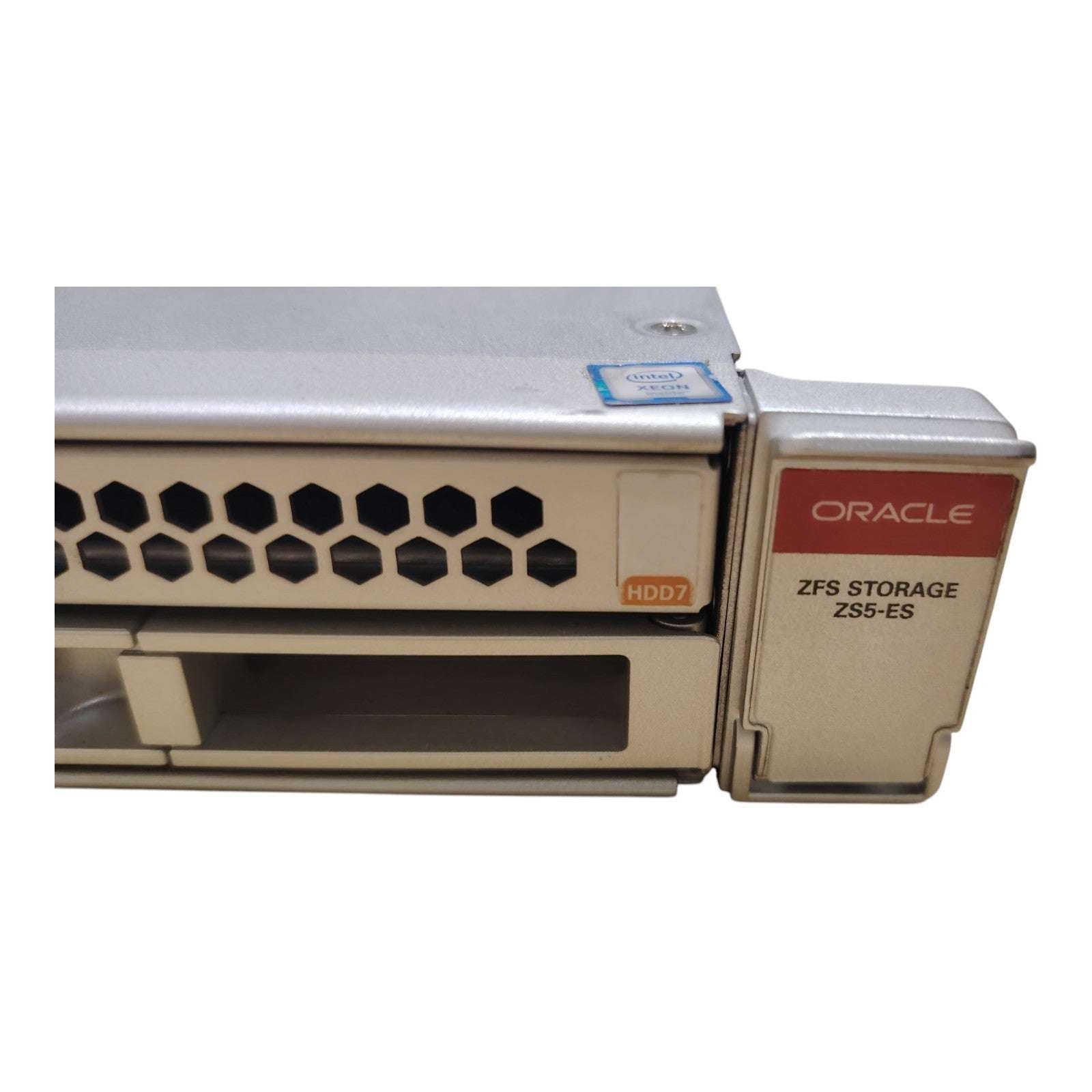

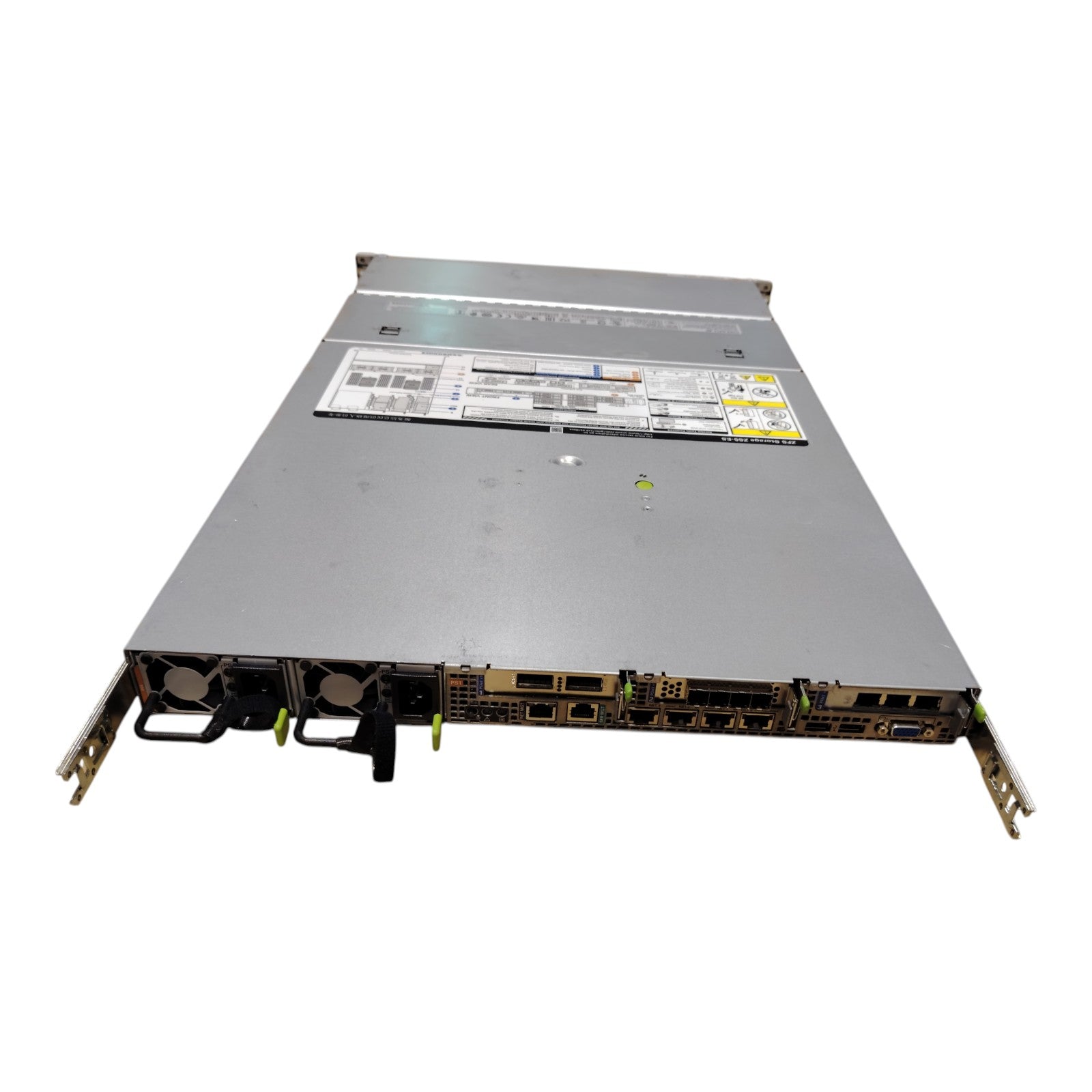

The Oracle ZFS Storage ZS5-ES is a high-performance, enterprise-class rackmount storage solution built for demanding data center and enterprise environments. Designed to support Oracle ZFS storage infrastructures, it integrates advanced hardware components to deliver scalability, reliability, and speed.

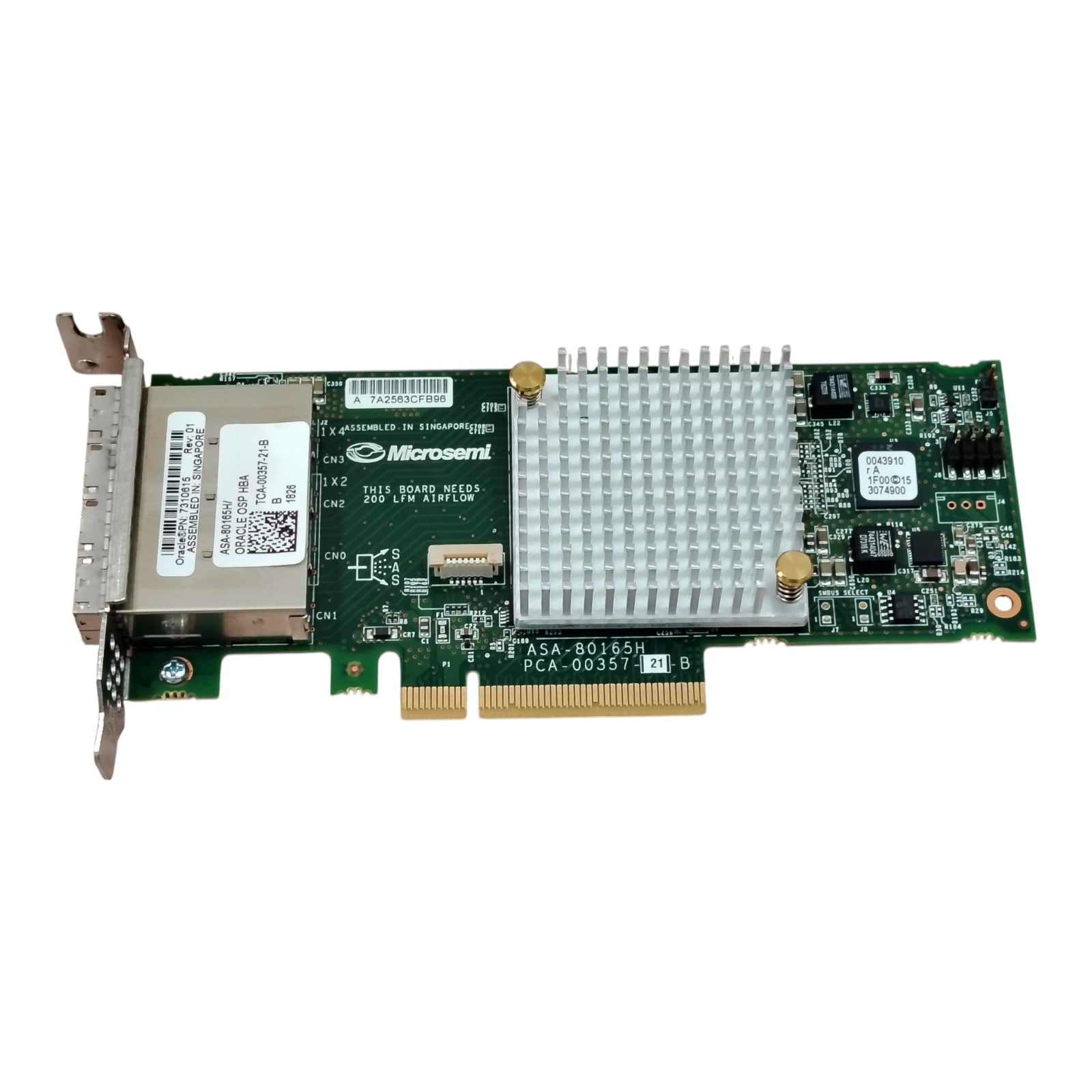

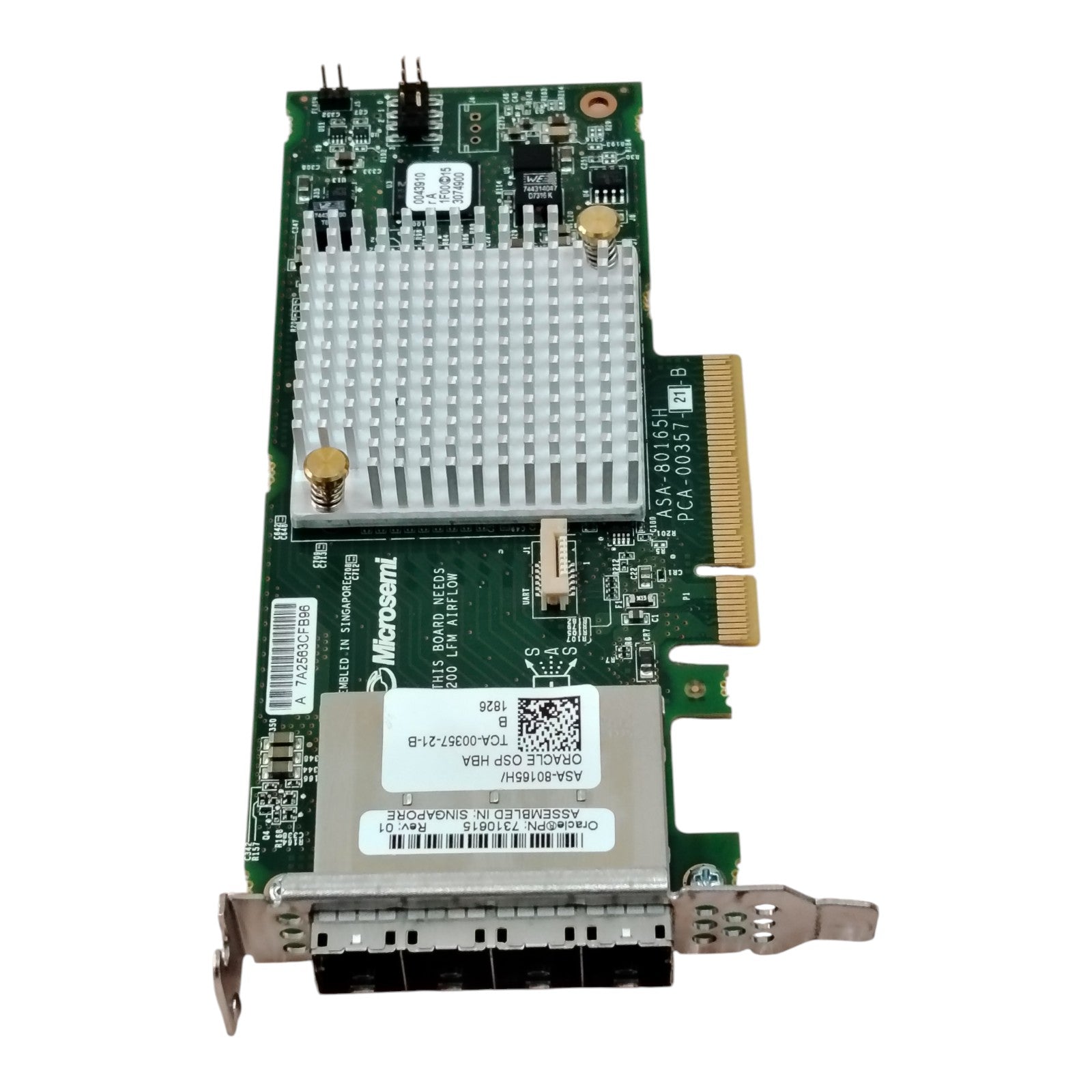

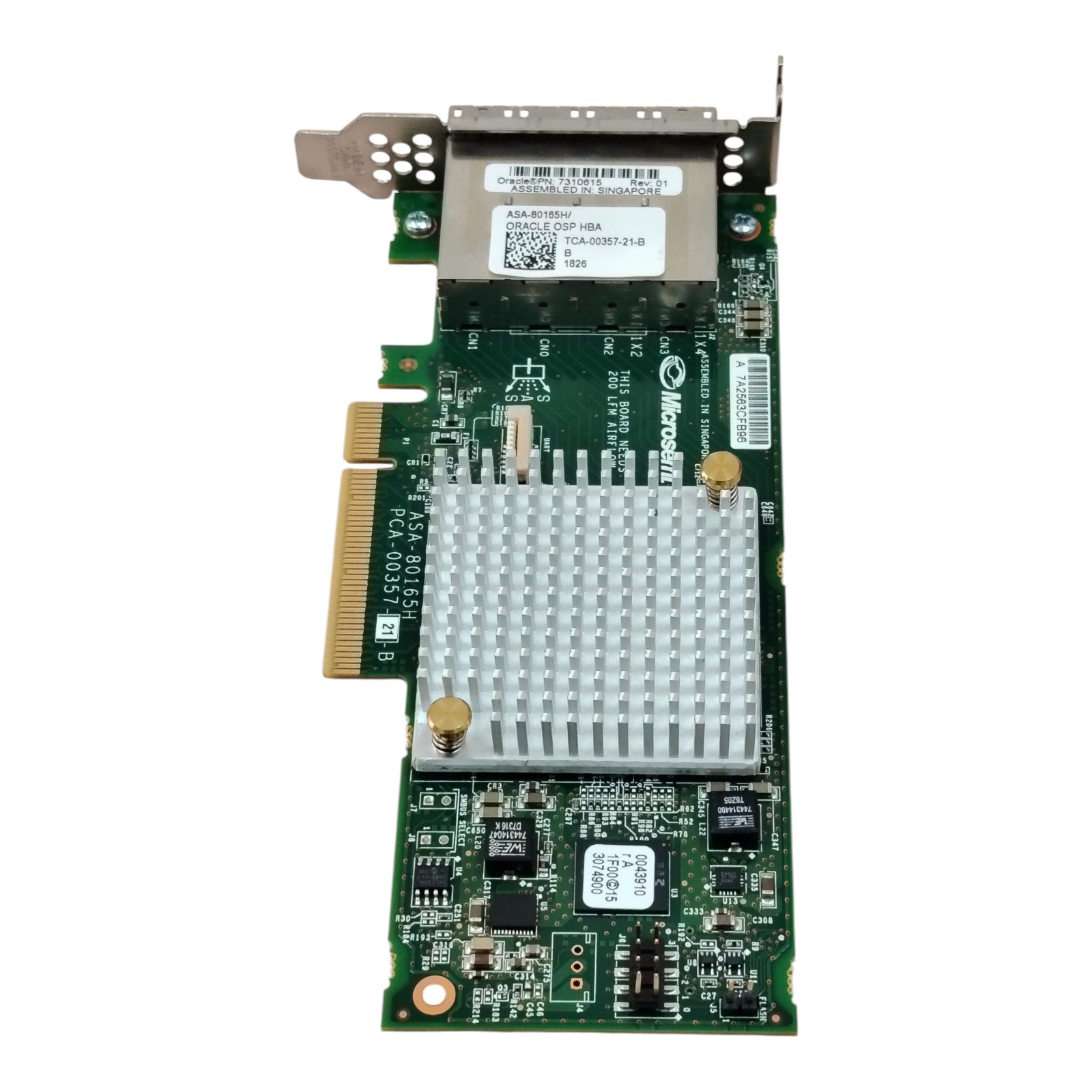

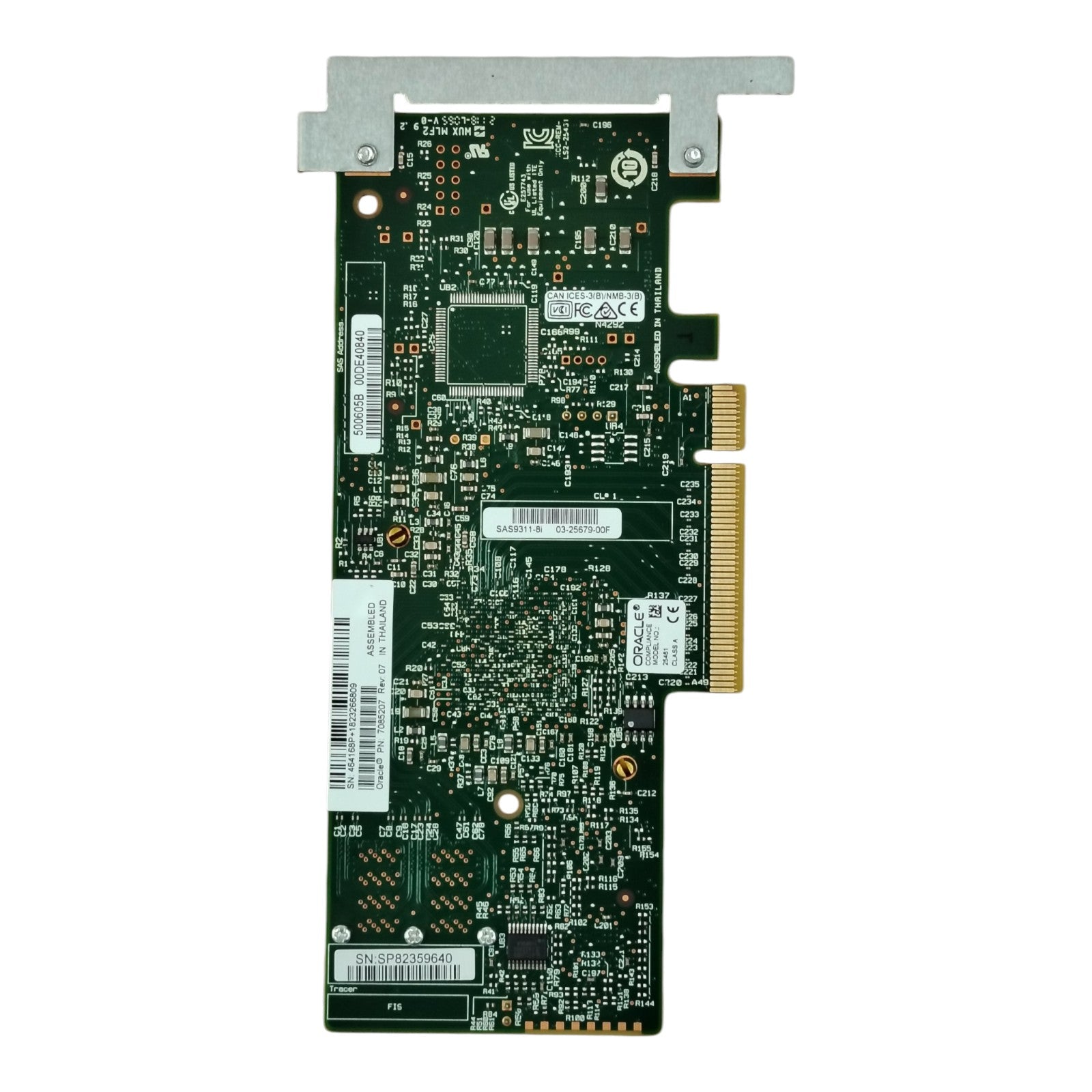

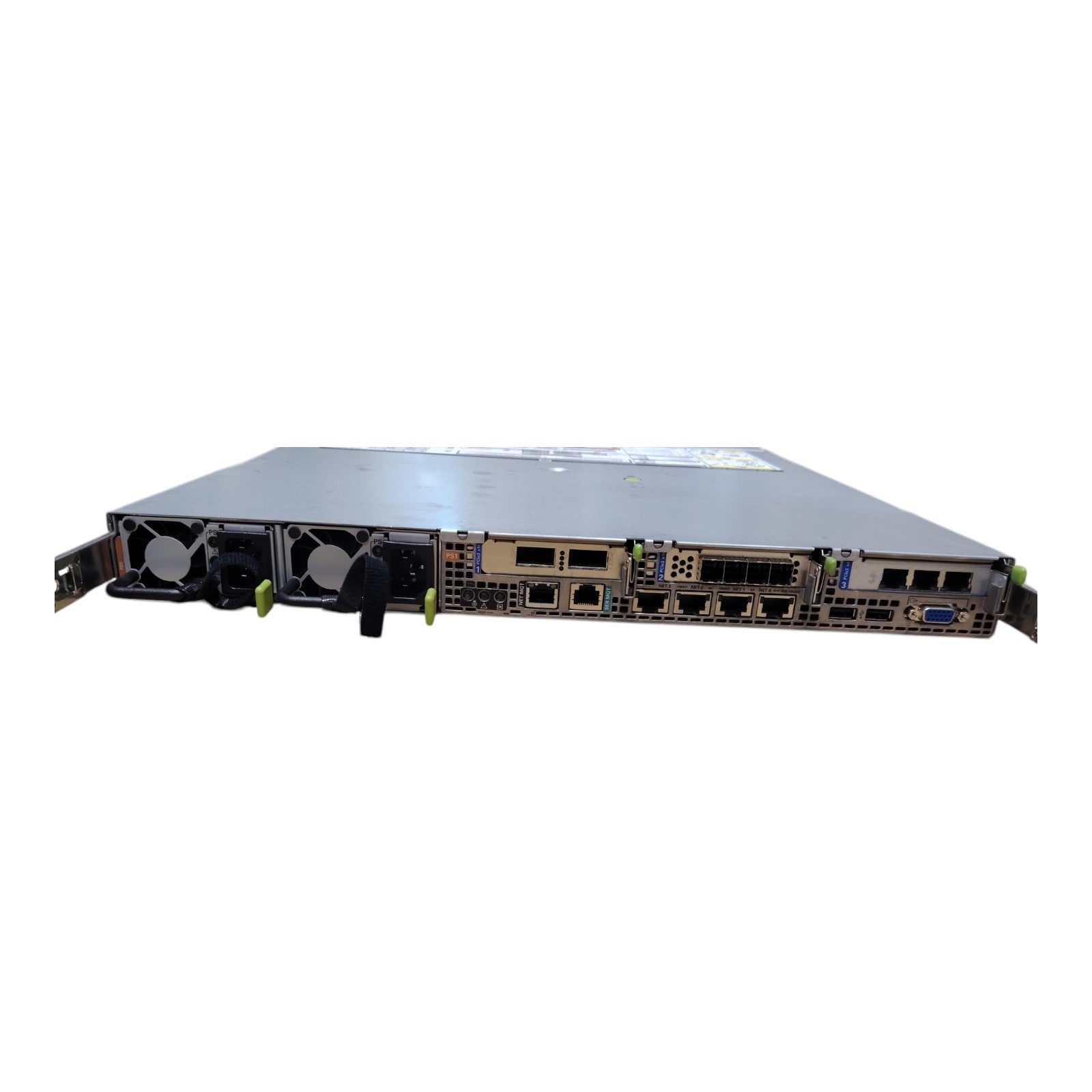

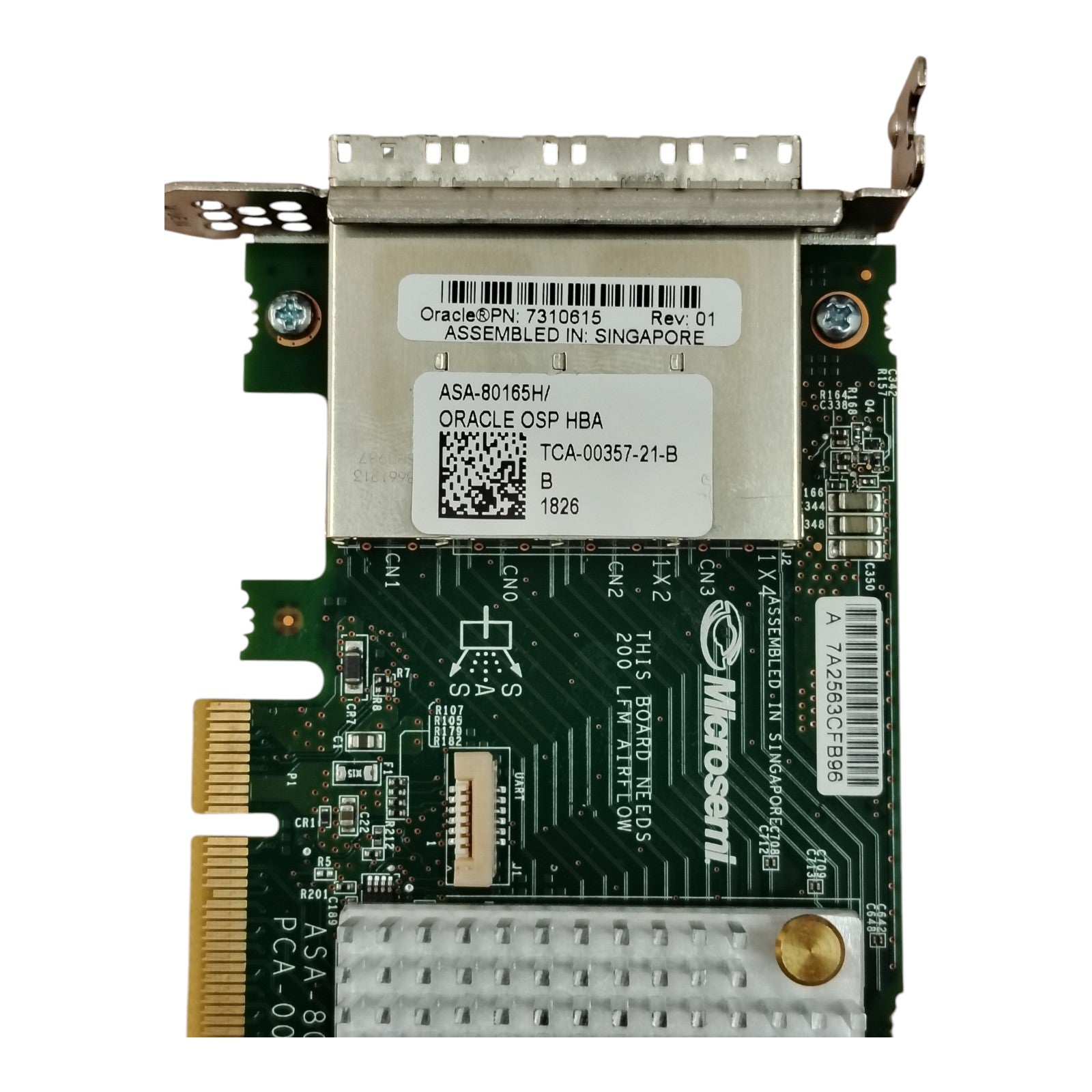

This system is equipped with a 40GbE dual-port HCA adapter, enabling ultra-fast networking for large-scale workloads. Storage connectivity is enhanced with both an 8-port 12Gbps SAS-3 HBA and a 16-port SAS-3 PCI-E HBA, providing the flexibility and performance required for high-volume data operations.

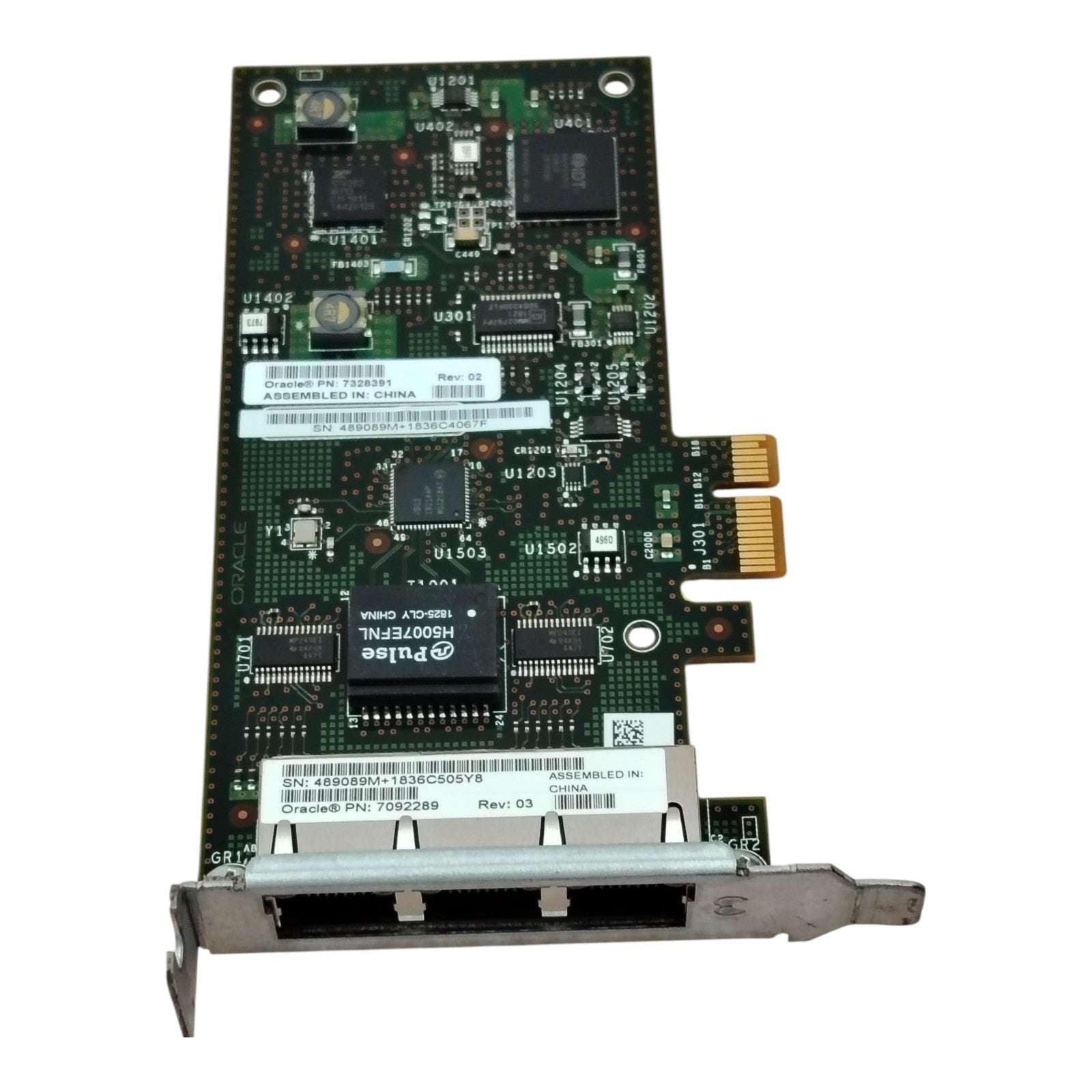

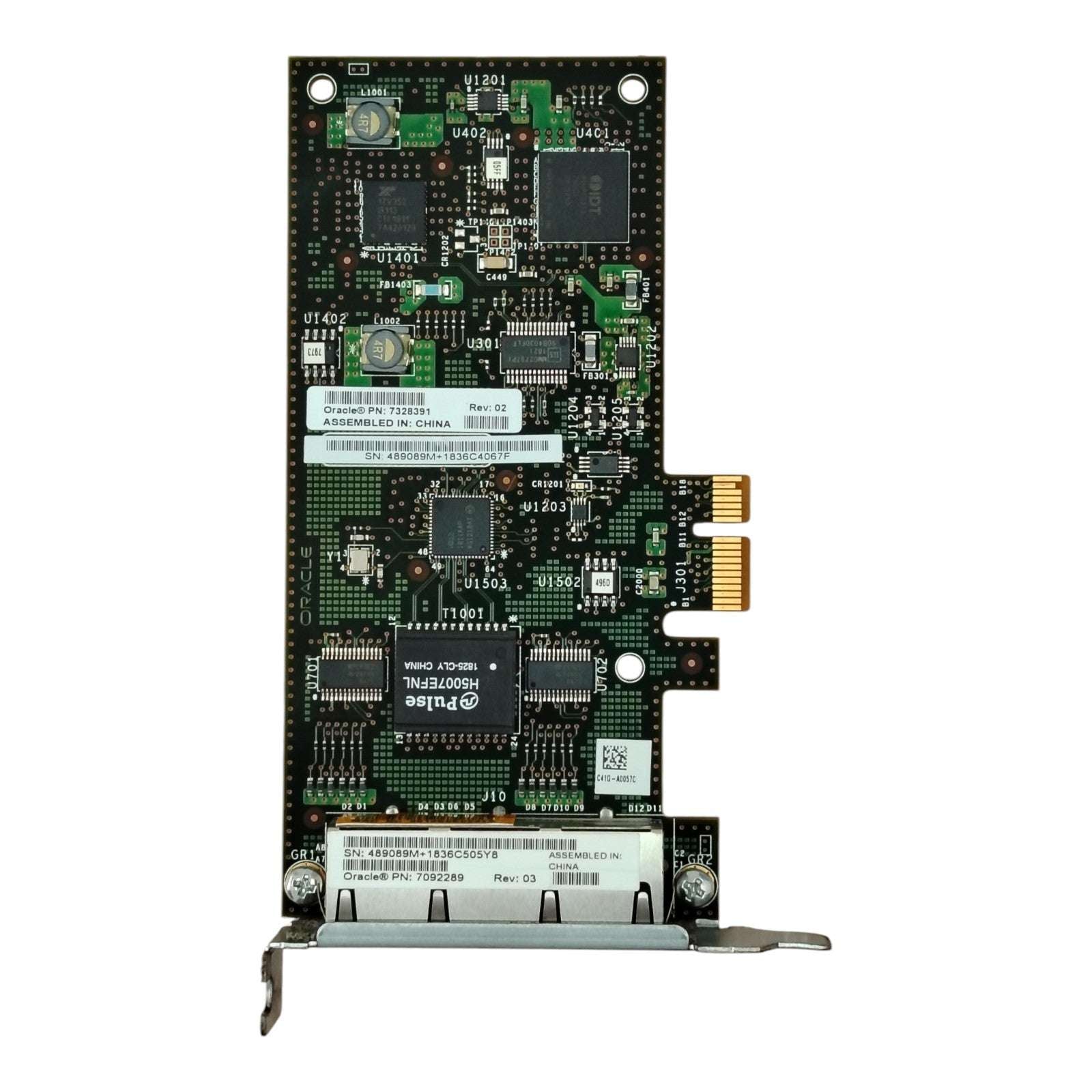

For enterprise resiliency, the ZS5-ES includes an Oracle cluster heartbeat assembly (PN: 7328391), ensuring seamless clustering and failover capabilities. Dual 600W redundant power supplies (PN: 7352197) and integrated cooling with two heatsinks ensure reliable, uninterrupted operations.

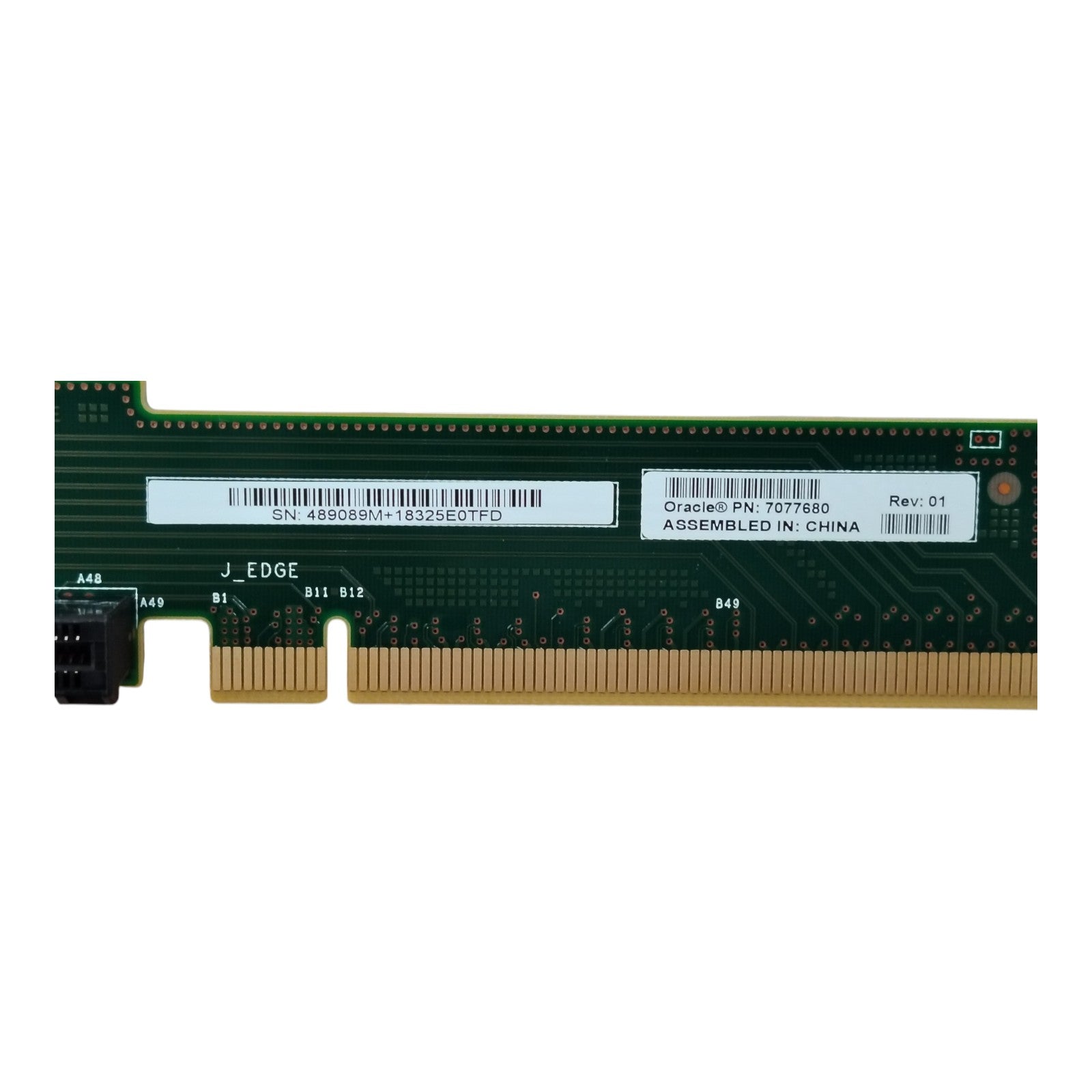

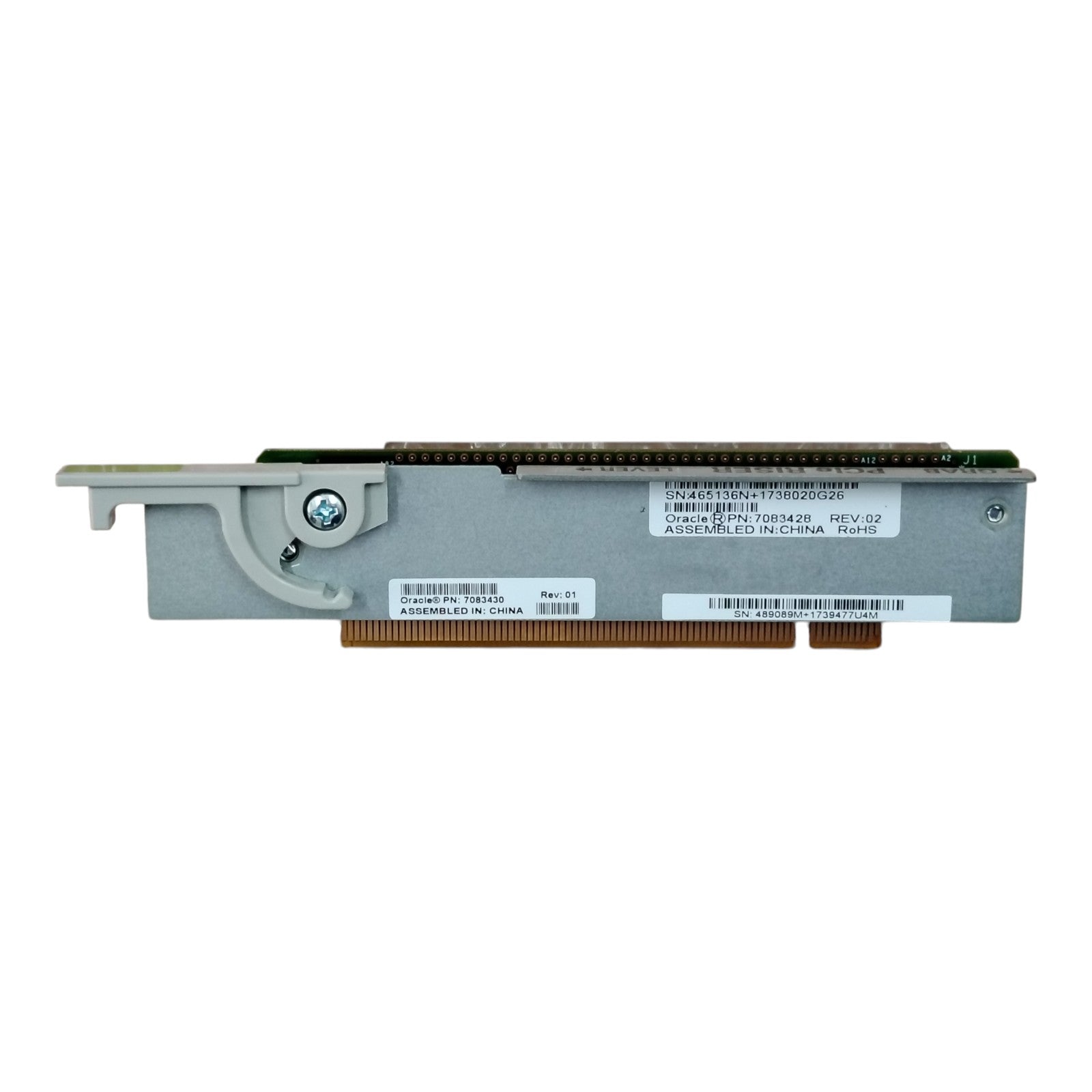

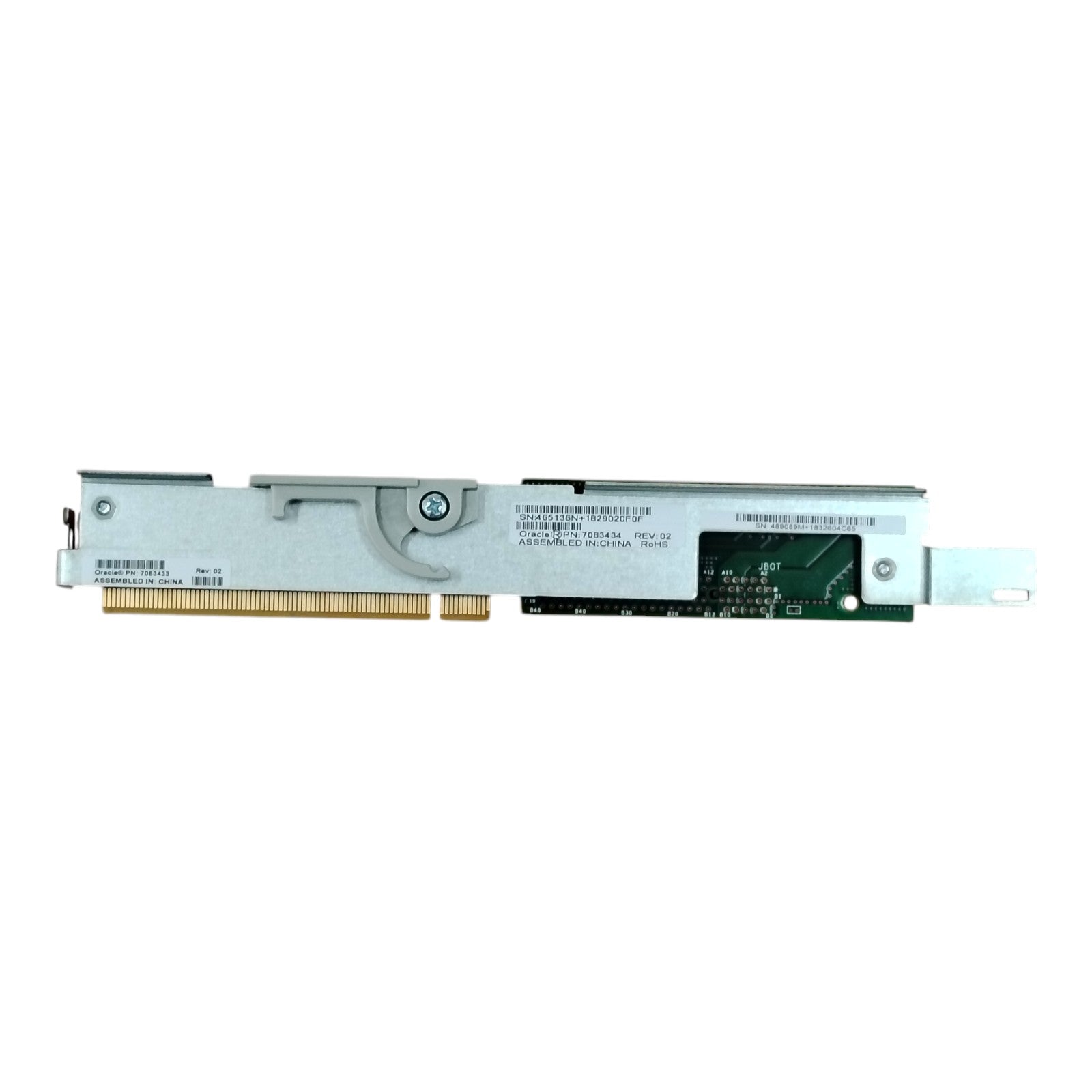

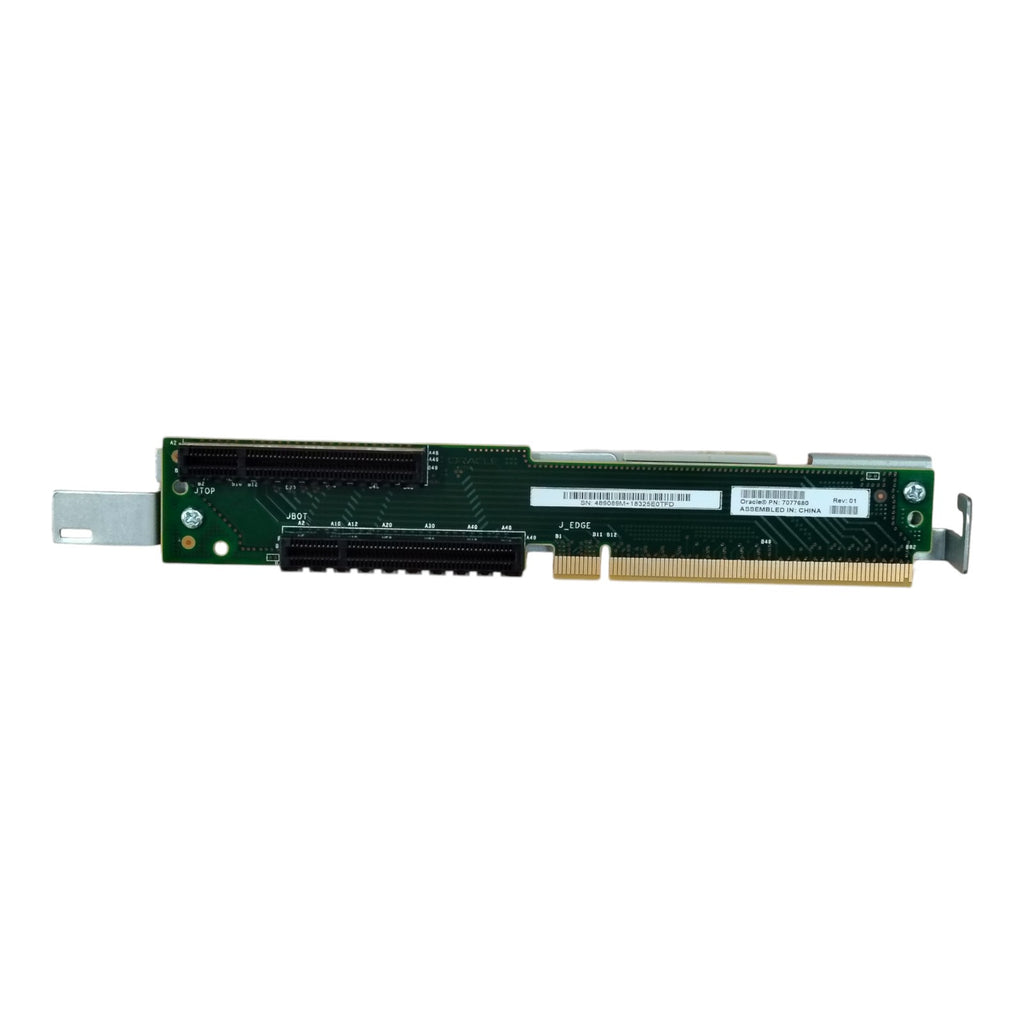

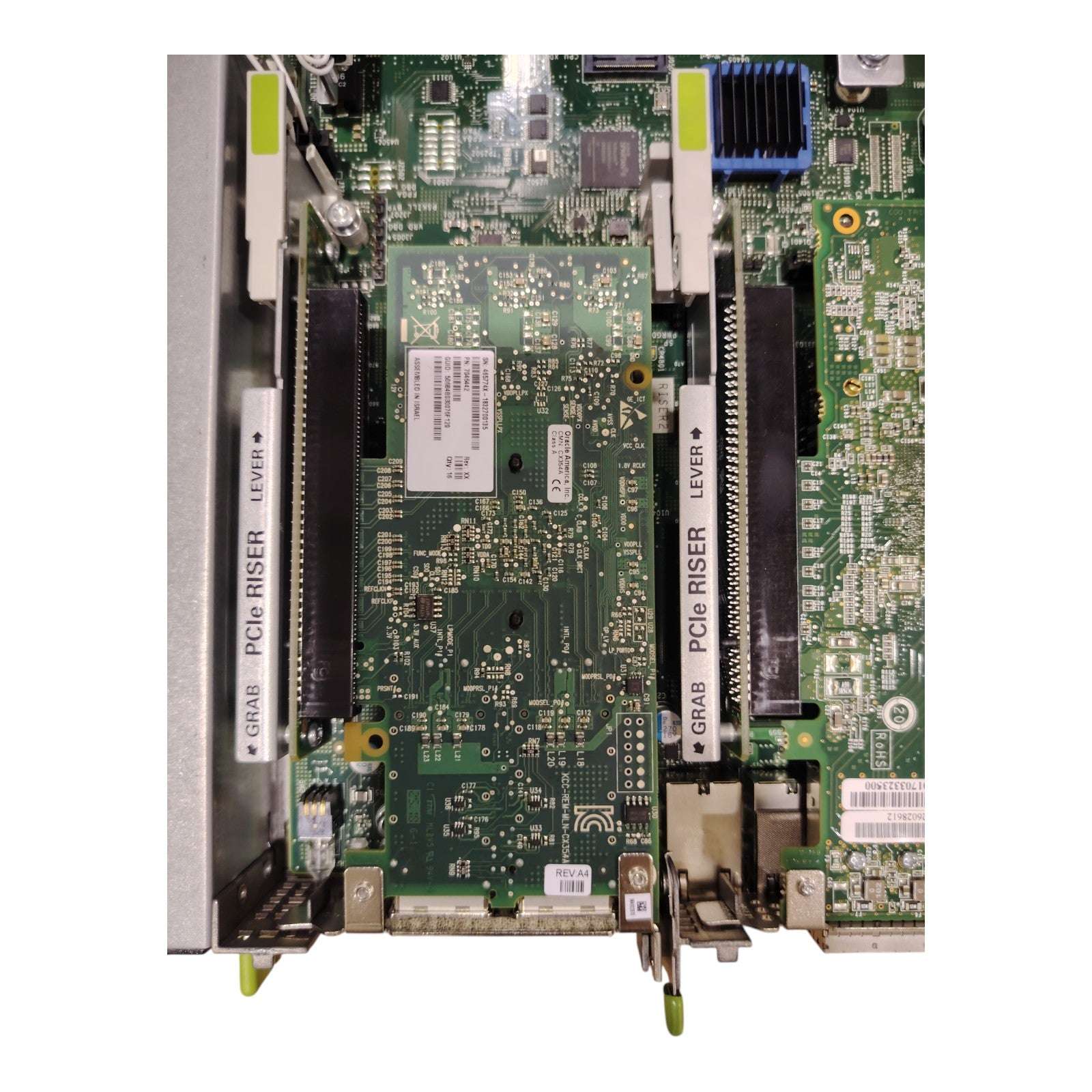

With 3 PCI-E riser cards, the ZS5-ES offers expansion flexibility, making it adaptable for growing enterprise storage demands. Whether used for virtualization, cloud storage, backup, or enterprise SAN environments, the Oracle ZFS ZS5-ES is engineered to handle mission-critical workloads with efficiency and reliability.
Technical Specifications Table
| Category | Specification |
|---|---|
| Brand | Oracle |
| Model | ZFS Storage ZS5-ES |
| Form Factor | Rackmount (Enterprise-class) |
| Networking | 1 × 40GbE Dual-Port HCA Adapter |

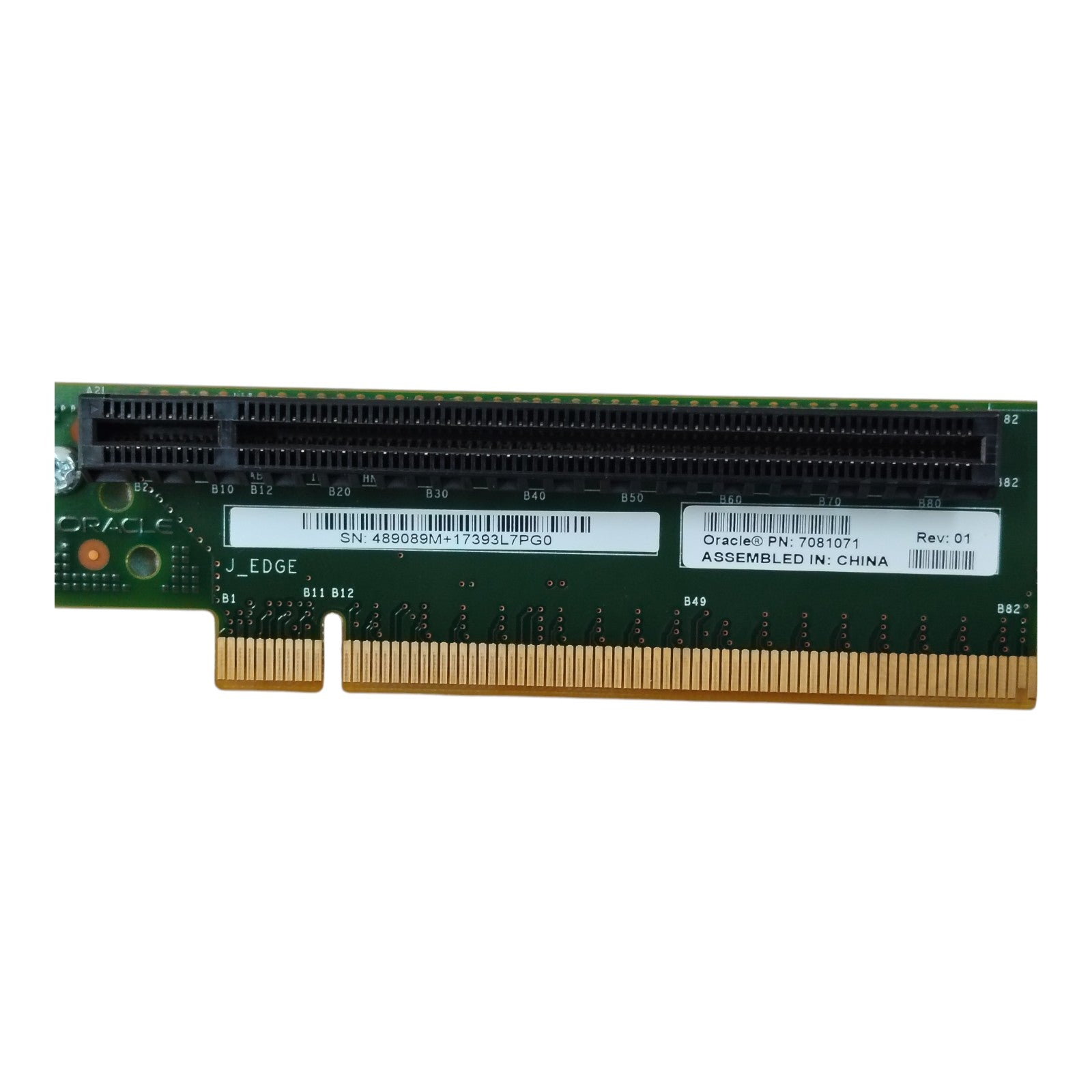

| Expansion | 3 × PCI-E Riser Cards |

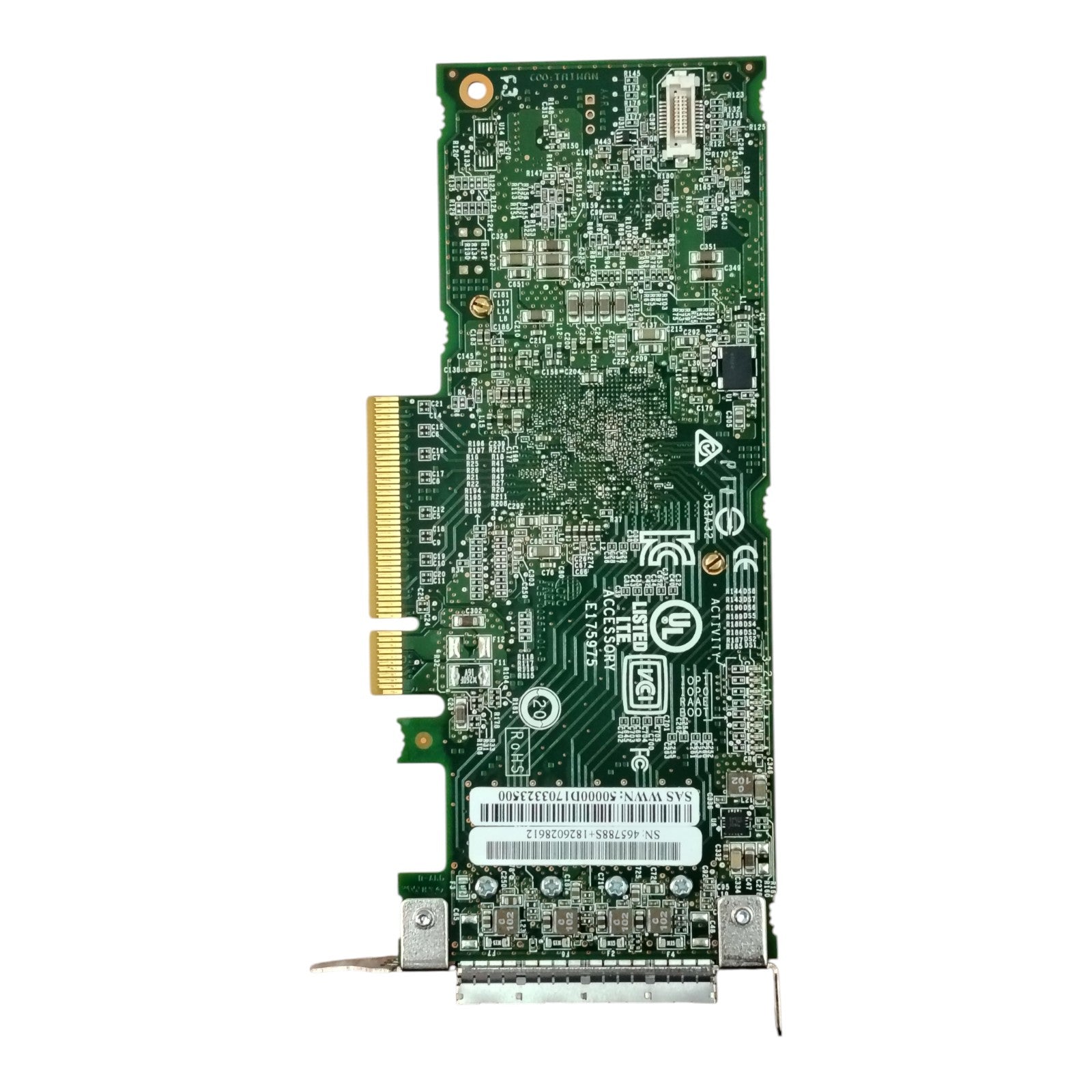

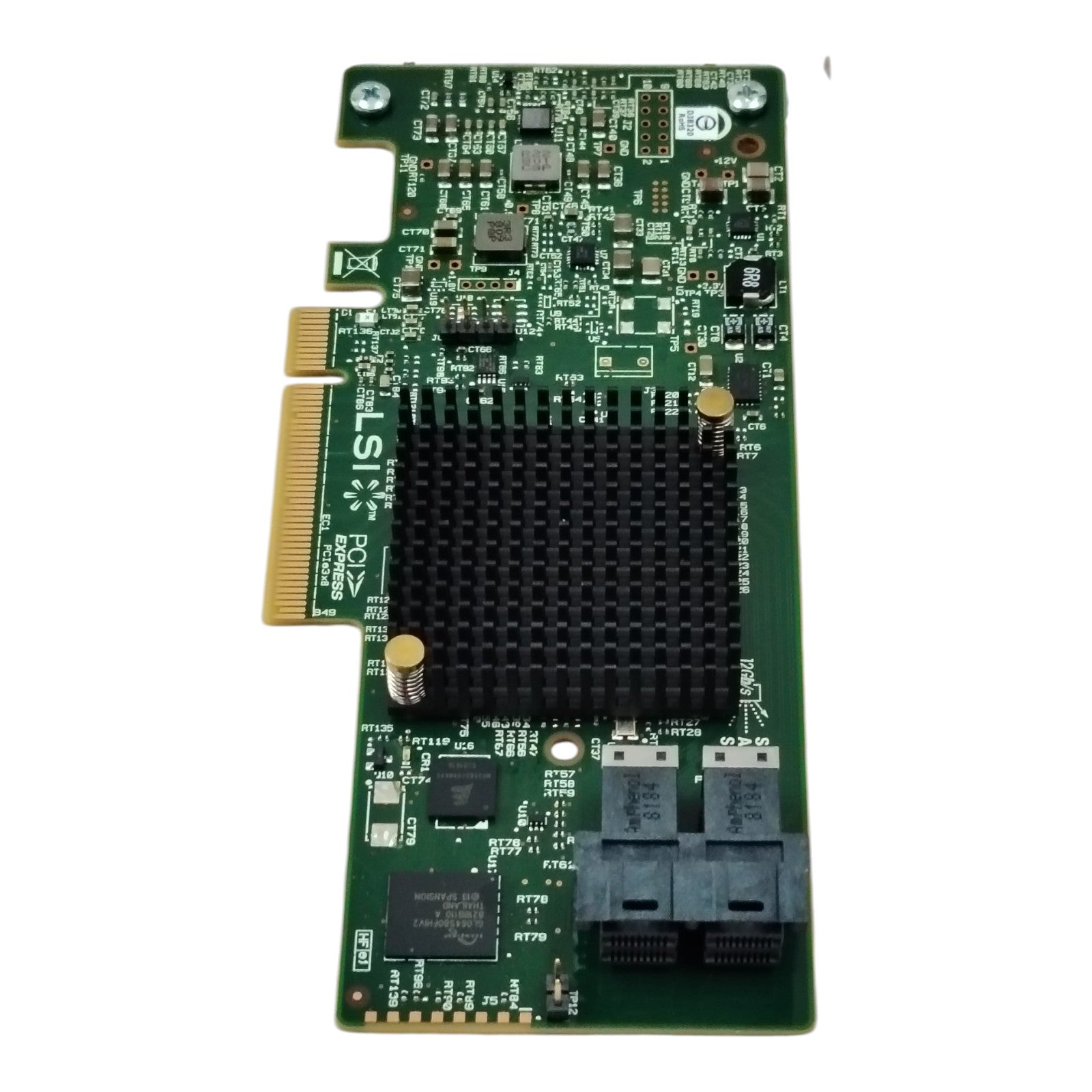

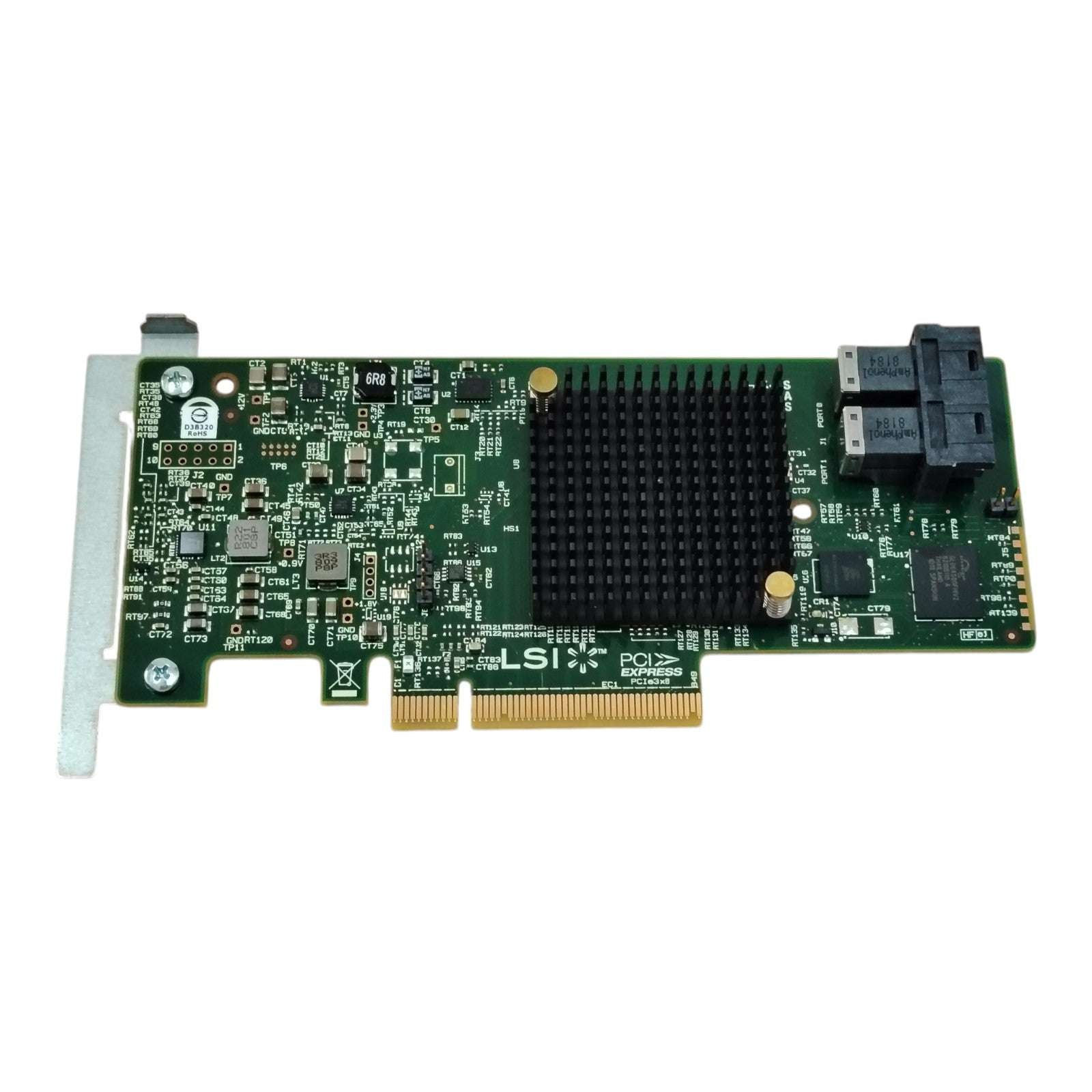

| Storage Controllers | 1 × 8-Port 12Gbps SAS-3 HBA 1 × 16-Port 12Gbps SAS-3 PCI-E HBA |

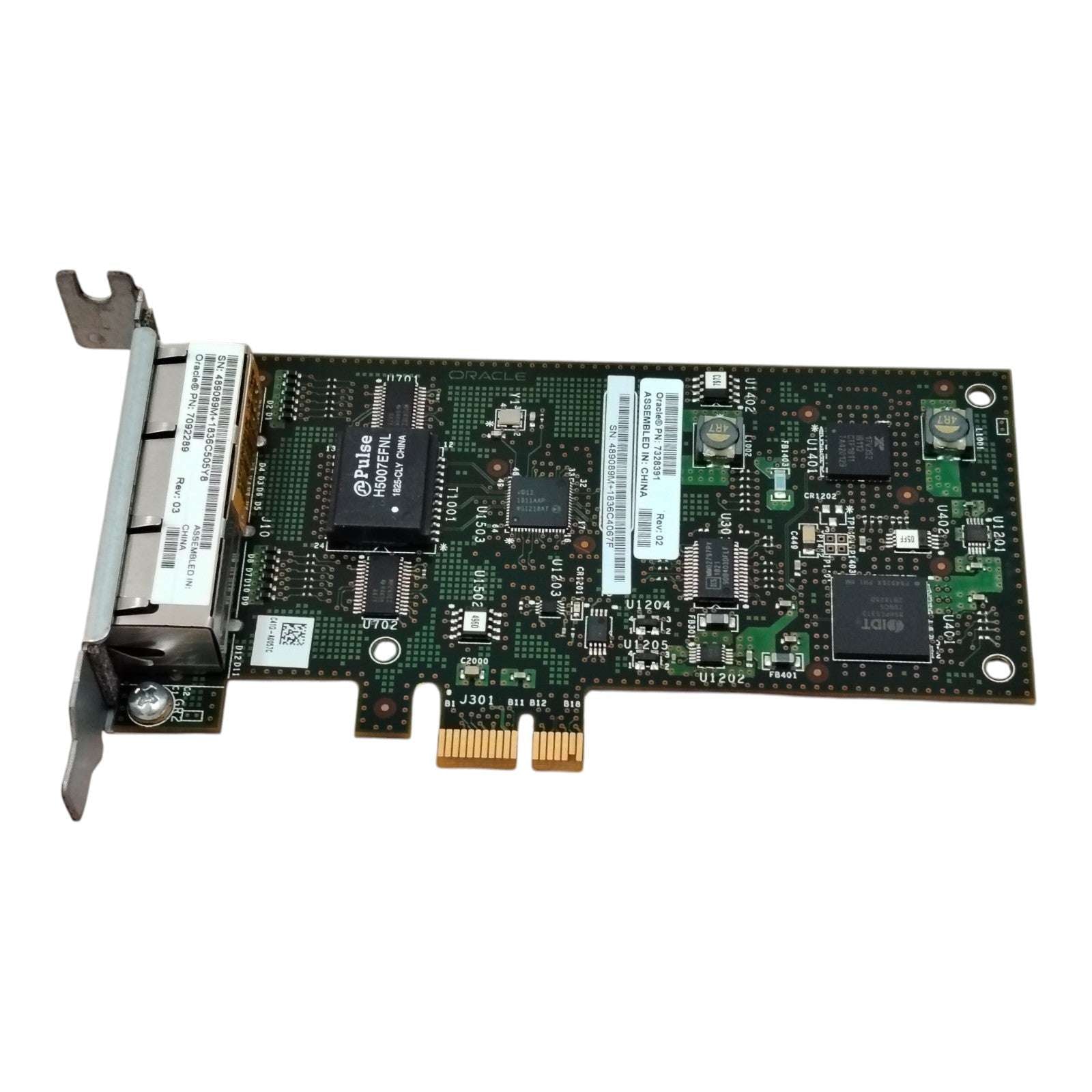

| Clustering | Oracle Cluster Heartbeat Assembly (PN: 7328391) |

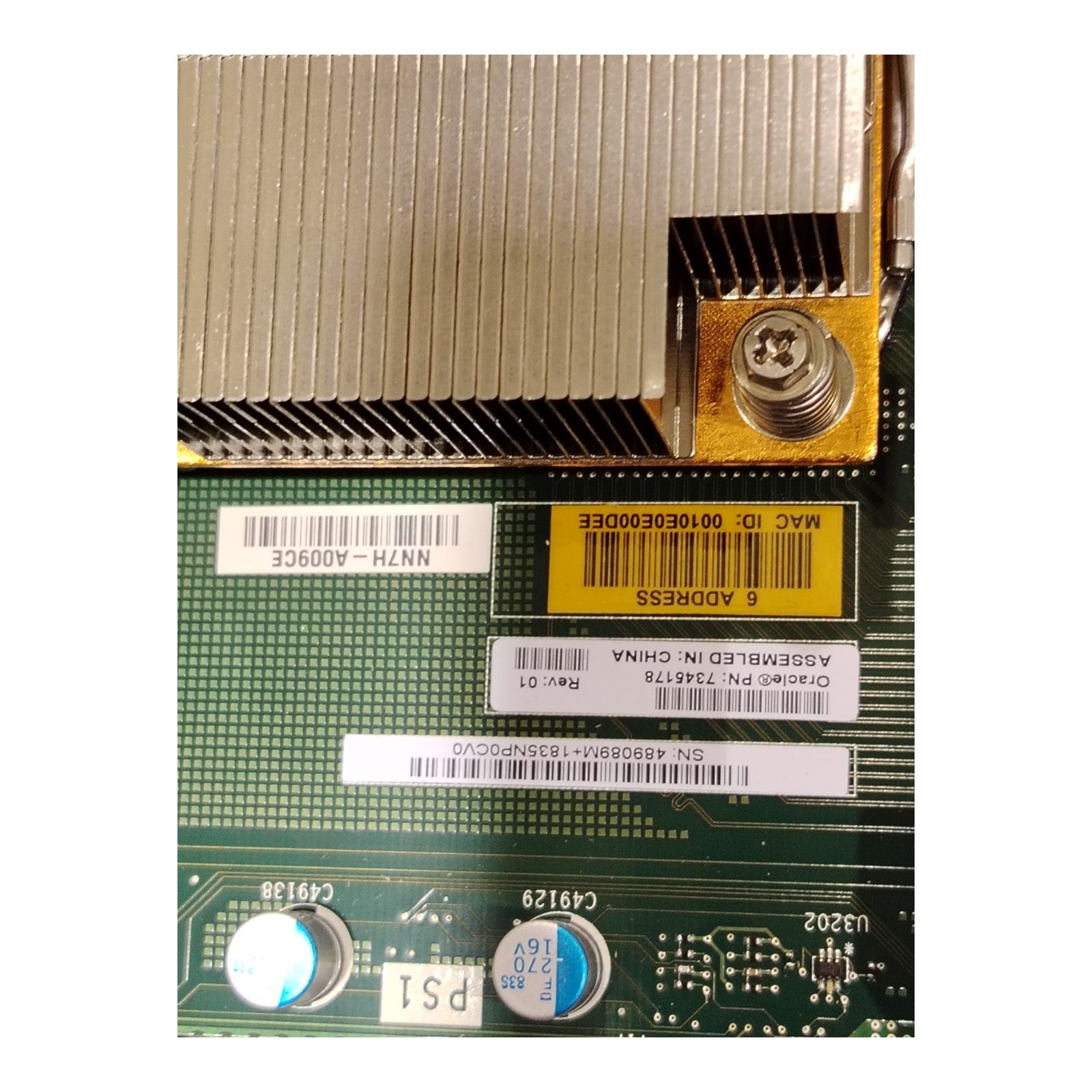

| Cooling | 2 × Heatsinks |

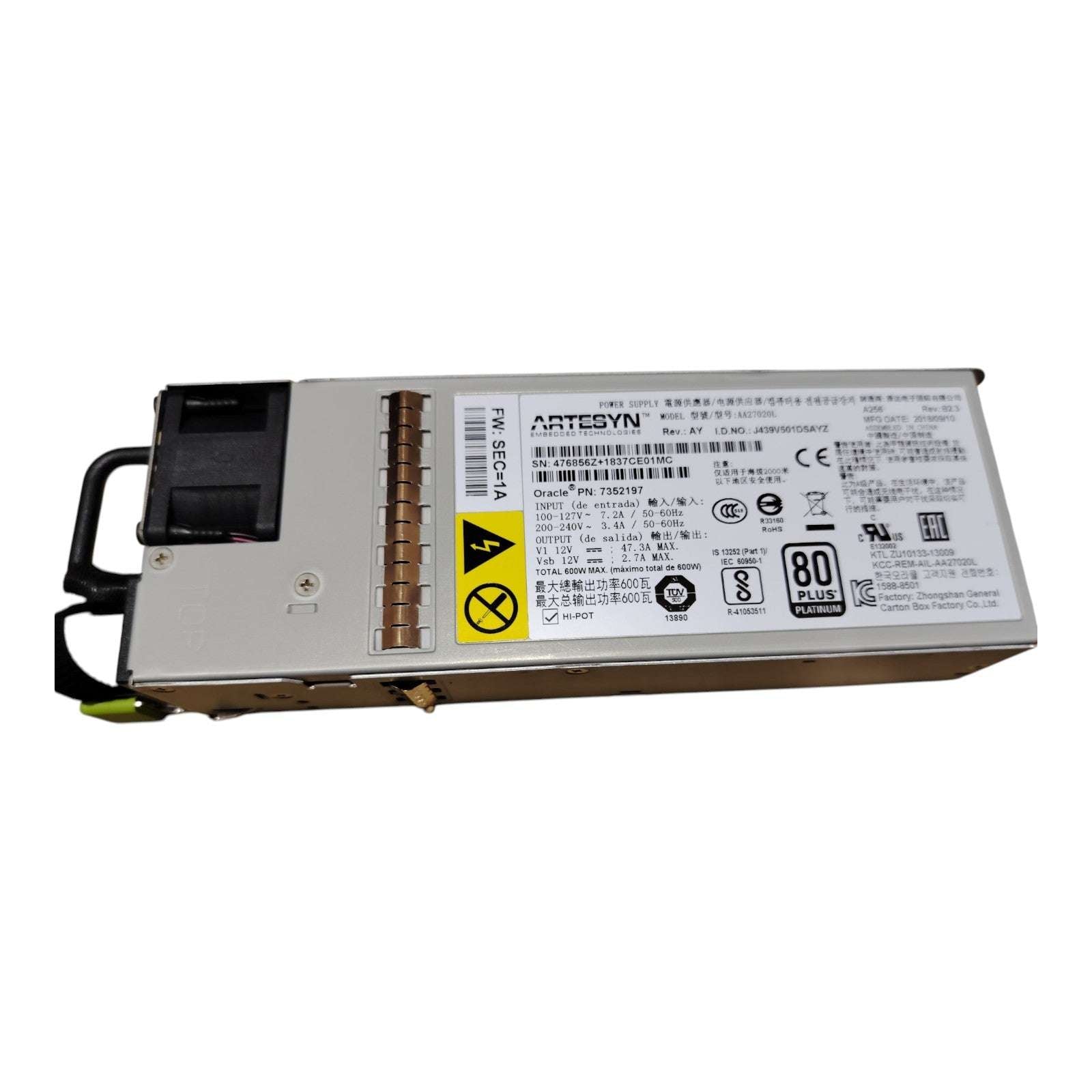

| Power Supply | 2 × 600W Redundant Oracle PSUs (PN: 7352197) |
| Connectivity | SAS-3 / PCI-E / 40GbE |
| Redundancy | Cluster-ready, redundant power & cooling |
| Use Case | Enterprise ZFS storage, SAN/NAS solutions |
Compatible Products
-
Oracle ZFS Storage Appliances (ZS5-2, ZS7 series)
-
Oracle Cloud Infrastructure (OCI) solutions
-
Enterprise SAN switches (Cisco, Brocade, Arista)
-
VMware vSphere, Microsoft Hyper-V, Oracle VM
-
Linux (Oracle Linux, RHEL, SUSE), Windows Server, Solaris
Ideal Use Cases
-
Enterprise SAN/NAS storage expansion
-
High-performance virtualization clusters
-
Big data analytics and cloud workloads
-
Enterprise database hosting (Oracle DB, SQL, SAP HANA)
-
Data backup, archival, and disaster recovery
Comparison Angle
The Oracle ZFS Storage ZS5-ES improves upon prior ZFS models with 40GbE high-speed networking, advanced SAS-3 connectivity, and clustering support. Compared to earlier units, it delivers greater expansion options with PCI-E risers and more robust high-availability features, making it one of the most resilient and scalable enterprise storage systems available.
