Description

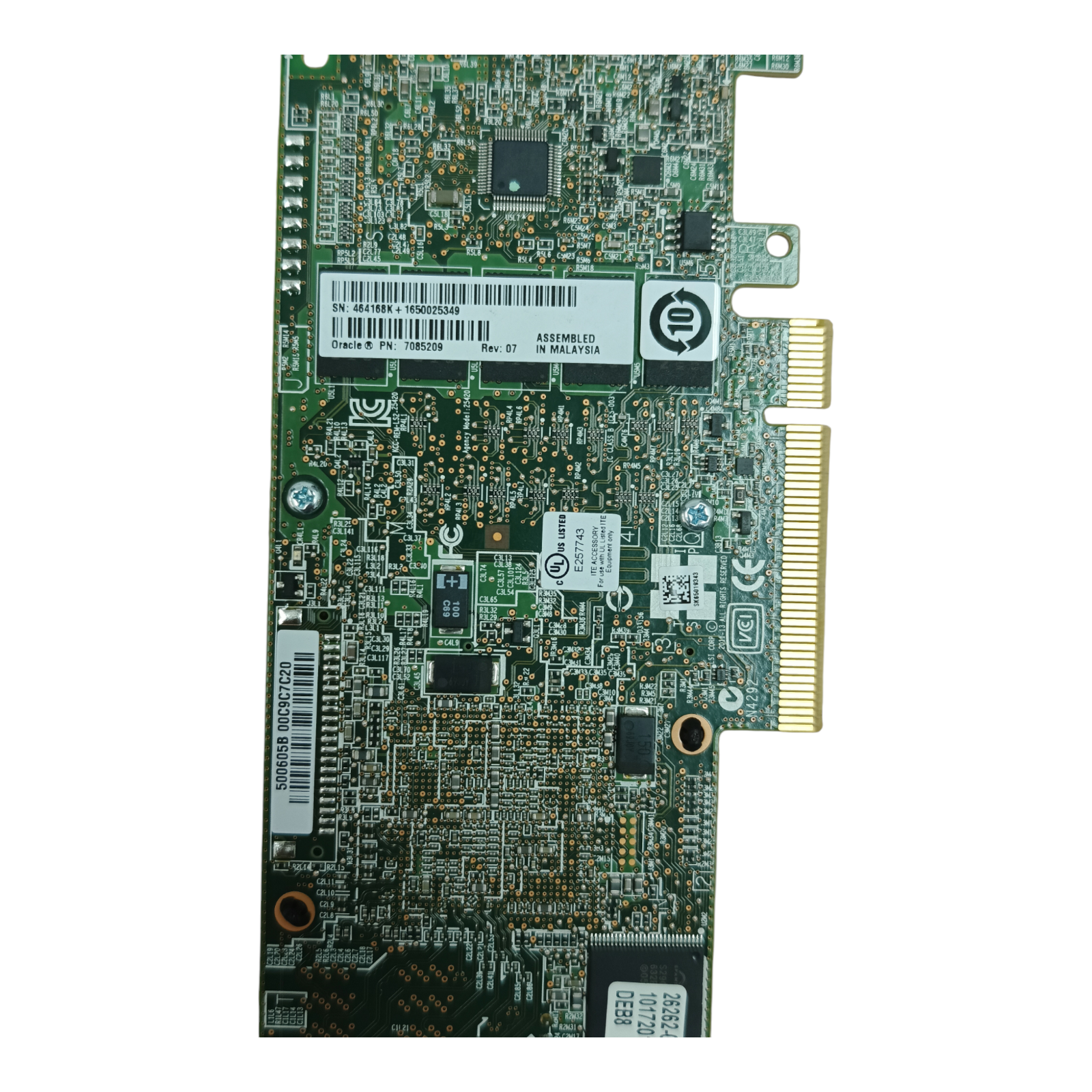

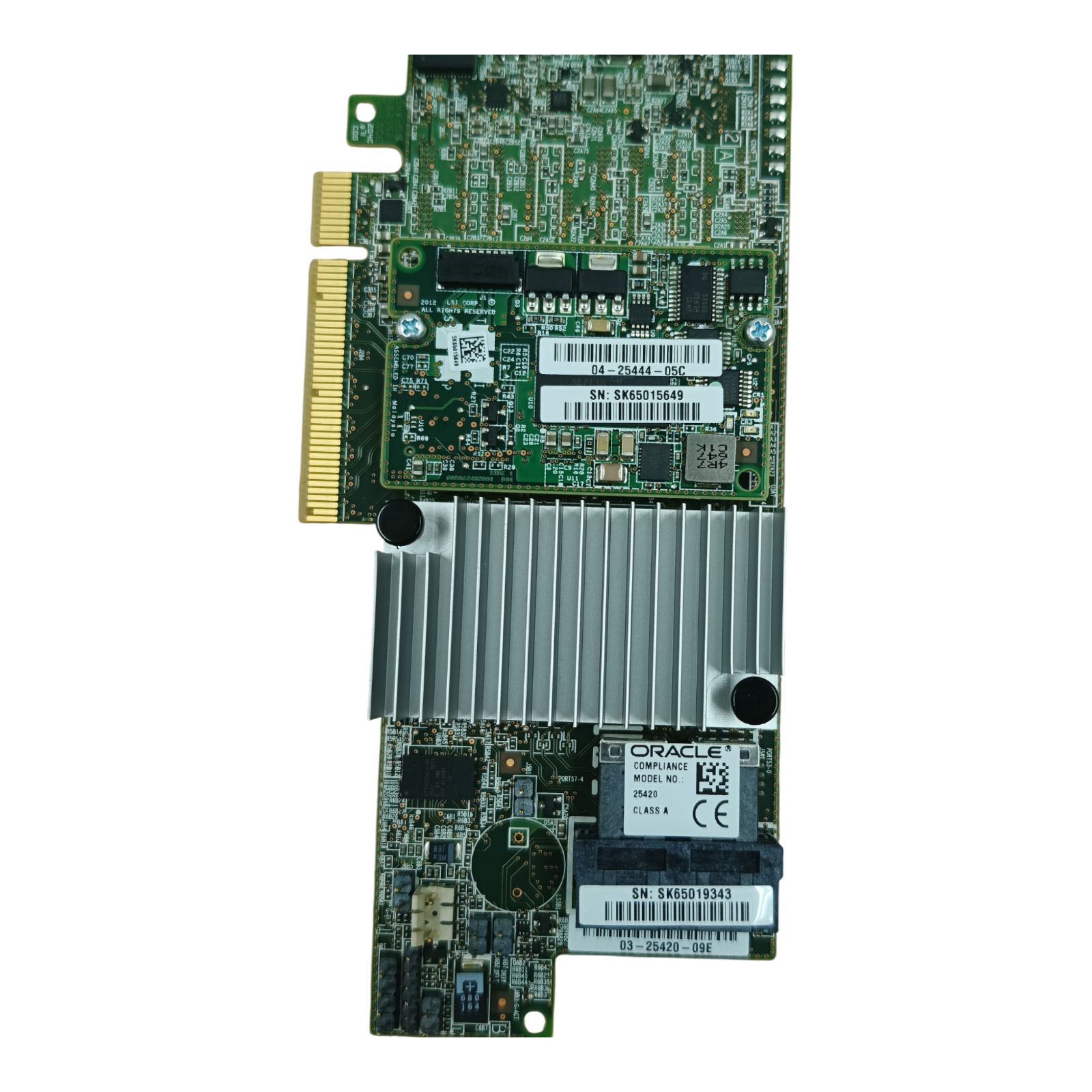

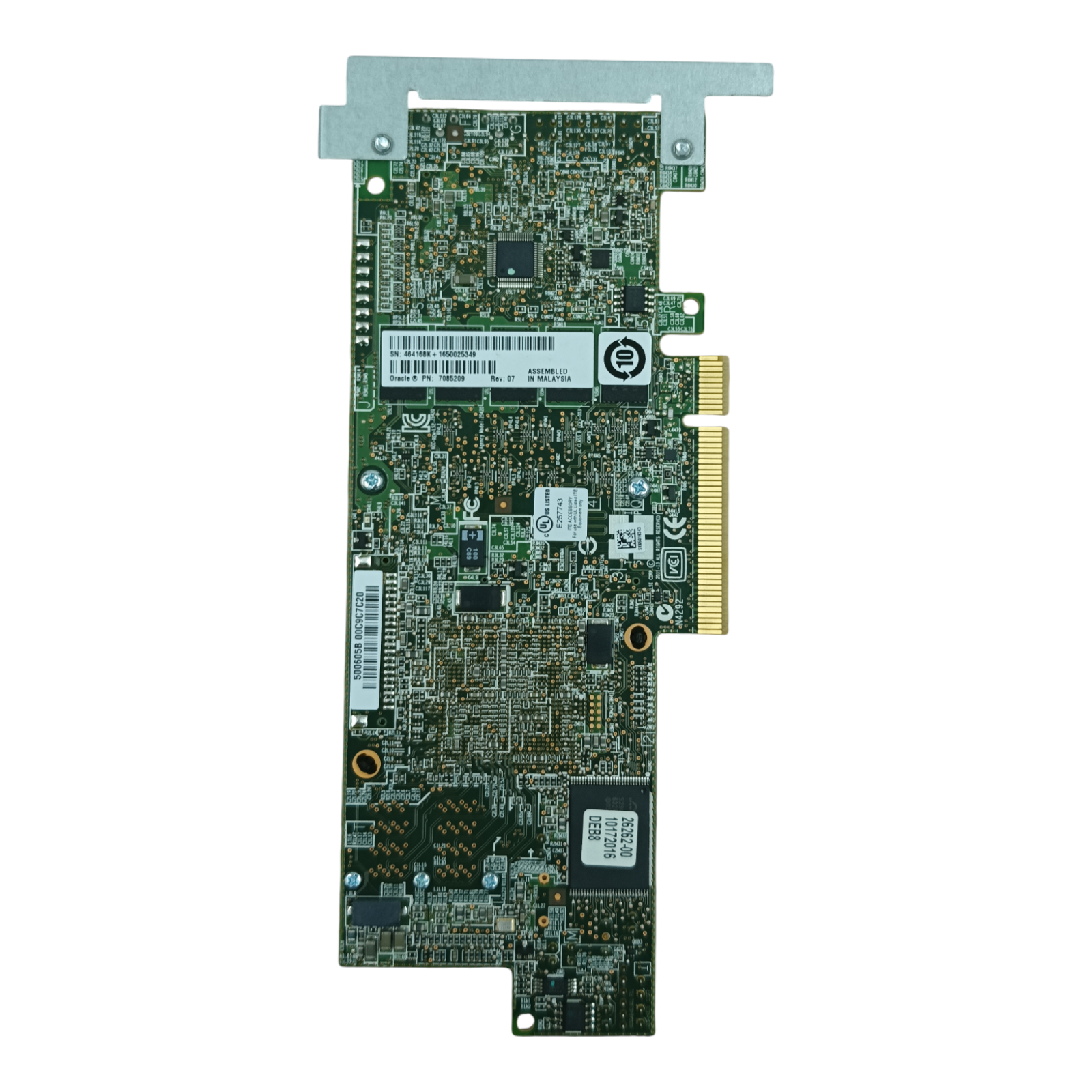

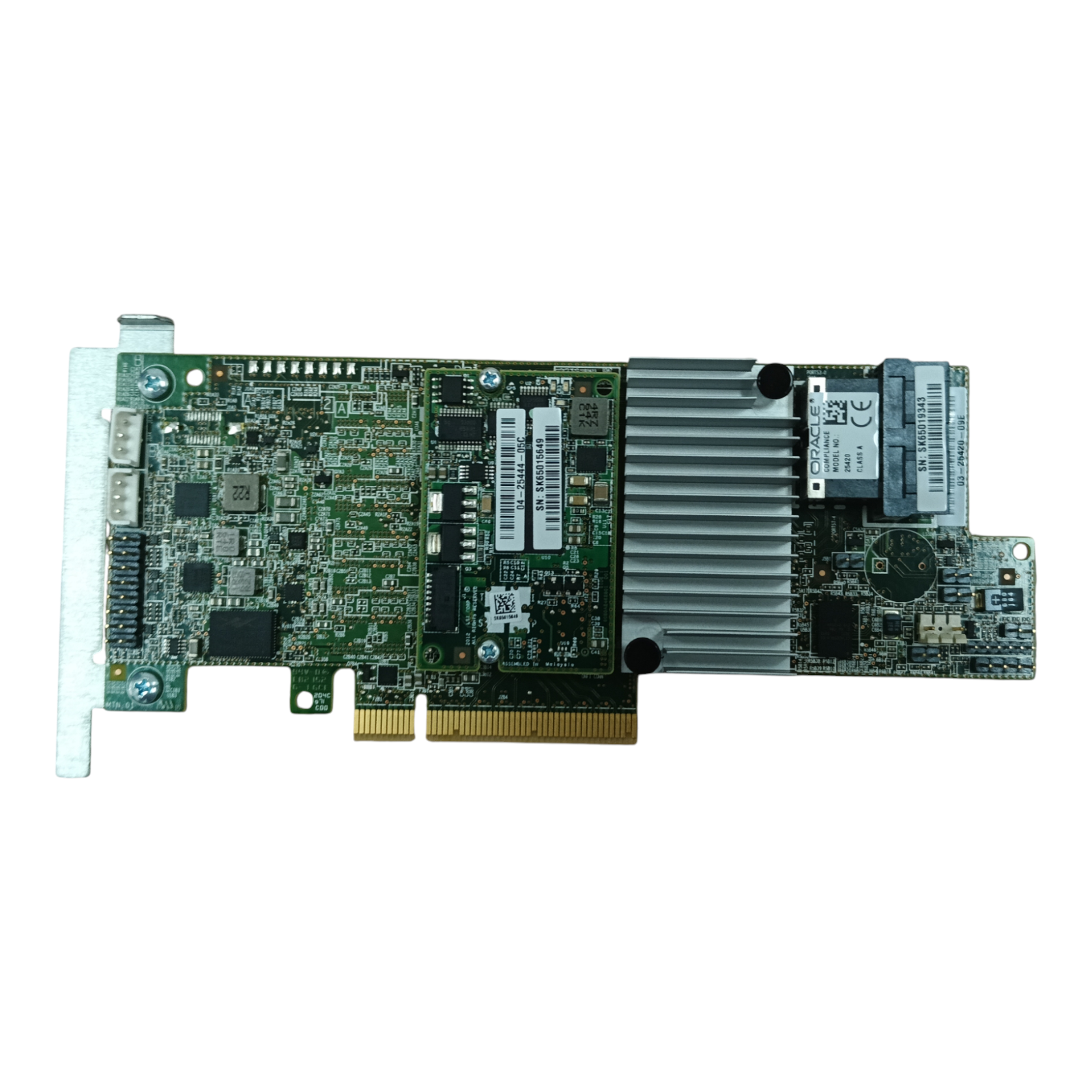

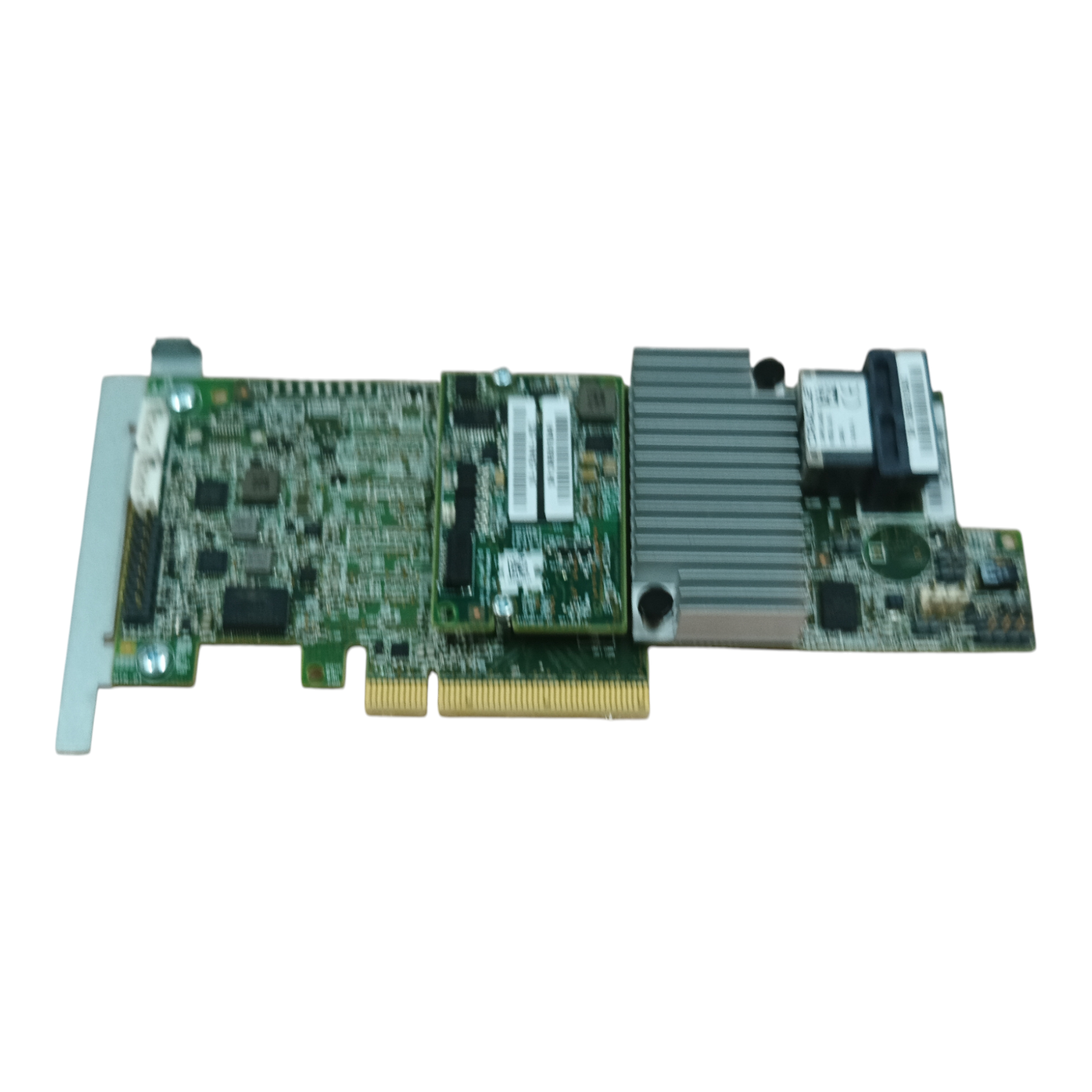

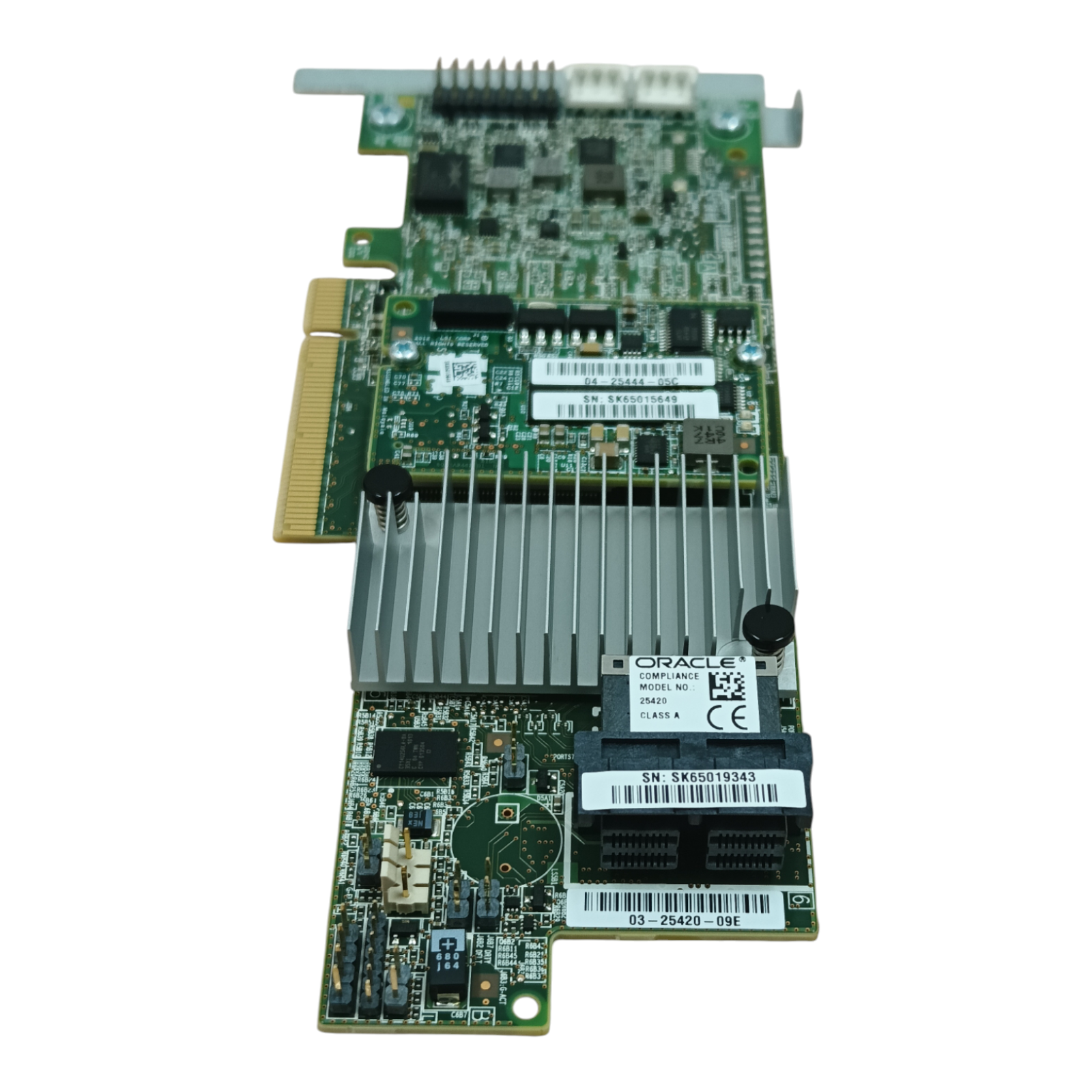

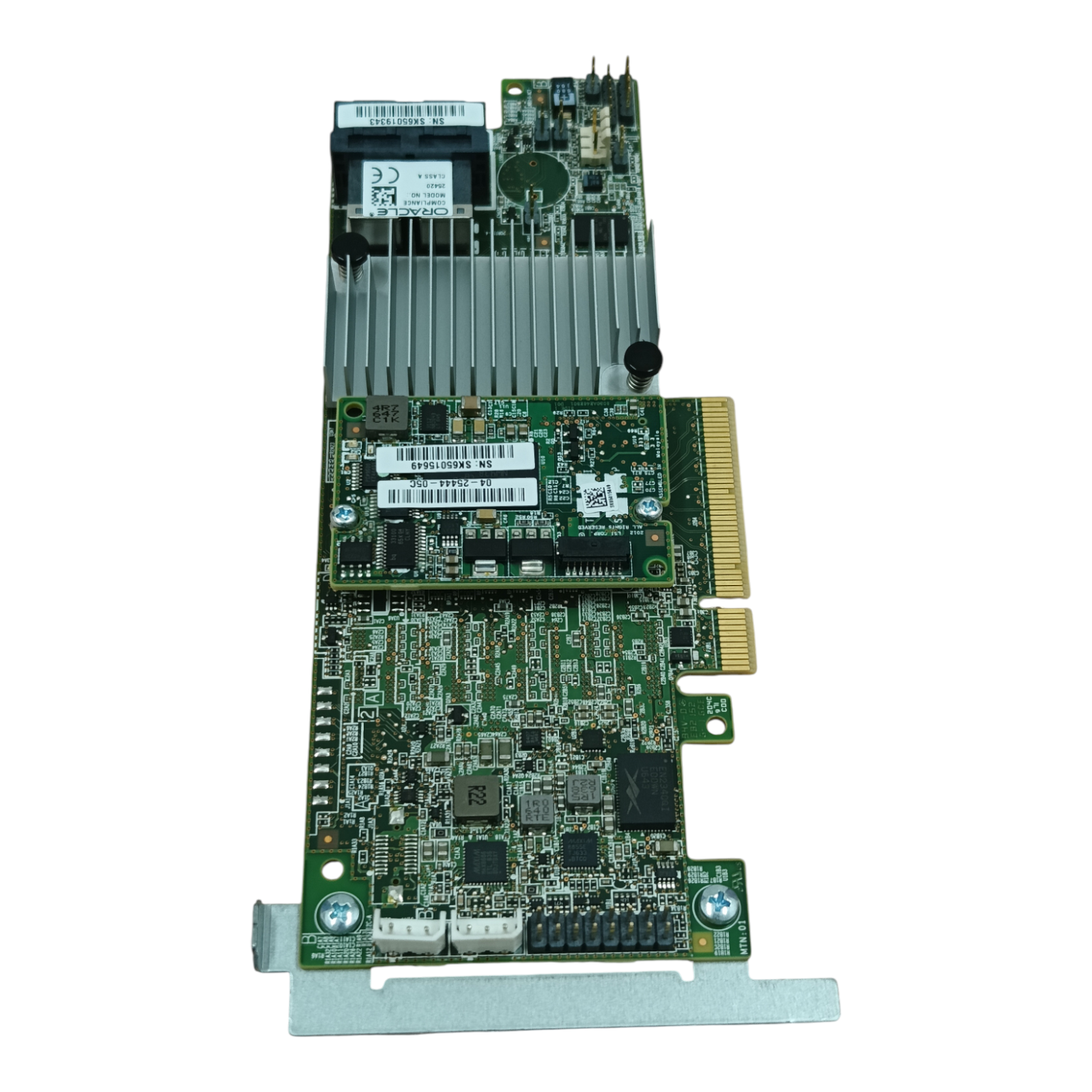

Oracle 7085209 SAS3 9361-8i RAID Card with 8-Port 12Gb/s SAS, PCIe 3.0, and enterprise reliability. Optimize Oracle X5-2 servers with high-speed storage.
| Specification | Detail |
|---|---|
| Brand | Oracle |
| Part Number (P/N) | 7085209 |
| Model | SAS3 9361-8i |
| Serial Number | 4641168X+1560025349 (example) |
| Revision | Rev: 07 |
| Interface | PCIe 3.0 |
| Ports | 8 internal SAS ports |
| Speed | SAS3 12Gb/s |
| Supported Drives | HDDs & SSDs (SAS/SATA) |
| Form Factor | PCIe RAID Controller |
| Certifications | UL, FCC, CE, RoHS |
| Assembled In | Malaysia |
Product Features
-
Oracle-certified RAID controller for enterprise X5-2 servers.
-
8 internal SAS3 ports supporting 12Gb/s throughput.
-
High-performance RAID 9361-8i chipset for reliable storage control.
-
Supports multiple RAID levels (0, 1, 5, 6, 10, 50, 60).
-
PCIe 3.0 interface ensures low latency and high bandwidth.
-
Designed for Oracle enterprise servers and storage arrays.
-
Robust build quality, enterprise-grade reliability.
General Product Information
The Oracle 7085209 SAS3 9361-8i RAID Controller is an enterprise-grade storage controller designed for Oracle X5-2 servers and compatible Oracle platforms. Featuring 8 SAS3 internal ports with 12Gb/s bandwidth, this RAID card delivers outstanding speed and reliability for data-intensive workloads, virtualization environments, and high-performance storage arrays.
With support for multiple RAID levels including 0, 1, 5, 6, 10, 50, and 60, it provides both performance optimization and data redundancy. Leveraging a PCIe 3.0 interface, it ensures maximum data throughput with minimal latency, making it ideal for mission-critical enterprise applications.
Built and certified by Oracle, this RAID controller integrates seamlessly into Oracle Sun/Netra/Enterprise server ecosystems, ensuring full compatibility and long-term reliability.
Whether you’re running large-scale databases, virtualization clusters, or storage consolidation projects, the Oracle 7085209 delivers the speed, stability, and scalability enterprise IT teams demand.
Technical Specifications Table
| Category | Details |
|---|---|
| Brand | Oracle |
| Part Number | 7085209 |
| Model | SAS3 9361-8i |
| RAID Support | 0, 1, 5, 6, 10, 50, 60 |
| Interface | PCIe 3.0 |
| Ports | 8 internal SAS3 |
| Bandwidth | 12Gb/s SAS per port |
| Drive Support | SAS and SATA HDDs/SSDs |
| Cache | Up to 1GB onboard (depending on variant) |
| Form Factor | PCIe RAID card |
| Revision | Rev 07 |
| Certifications | UL, FCC, CE, RoHS |
| Assembly Location | Malaysia |
| Warranty | Vendor limited warranty |
Compatible Products
-
Oracle X5-2 servers (certified)
-
Oracle Sun Fire and Netra servers supporting PCIe RAID cards
-
Compatible with enterprise SAS backplanes (12Gb/s)
-
Supports Linux (RHEL, CentOS, Ubuntu), Windows Server editions, VMware ESXi
-
Works with Oracle Solaris
Ideal Use Cases
-
Enterprise Servers – Mission-critical workloads.
-
Data Centers – High-speed, redundant storage.
-
Virtualization – VMware/Hyper-V clusters.
-
Database Hosting – Oracle, SQL, PostgreSQL, MySQL.
-
Cloud Infrastructure – Reliable storage backbone.
Comparison Angle
Unlike legacy SAS2 RAID controllers, the Oracle 7085209 SAS3 9361-8i offers double the bandwidth (12Gb/s vs. 6Gb/s) and greater efficiency in handling SSD-accelerated storage arrays. Compared to third-party cards, Oracle’s official certification guarantees seamless server integration, firmware compatibility, and long-term stability.
Cross-Sell / Upsell Suggestions
-
Oracle-certified SAS HDDs/SSDs (12Gb/s).
-
Oracle Sun memory upgrades (ECC DDR4 RAM).
-
Replacement Oracle server caddies & trays.
-
Battery backup unit (BBU) for RAID cache protection.
-
Higher capacity RAID cards (16-port variants).
