Description

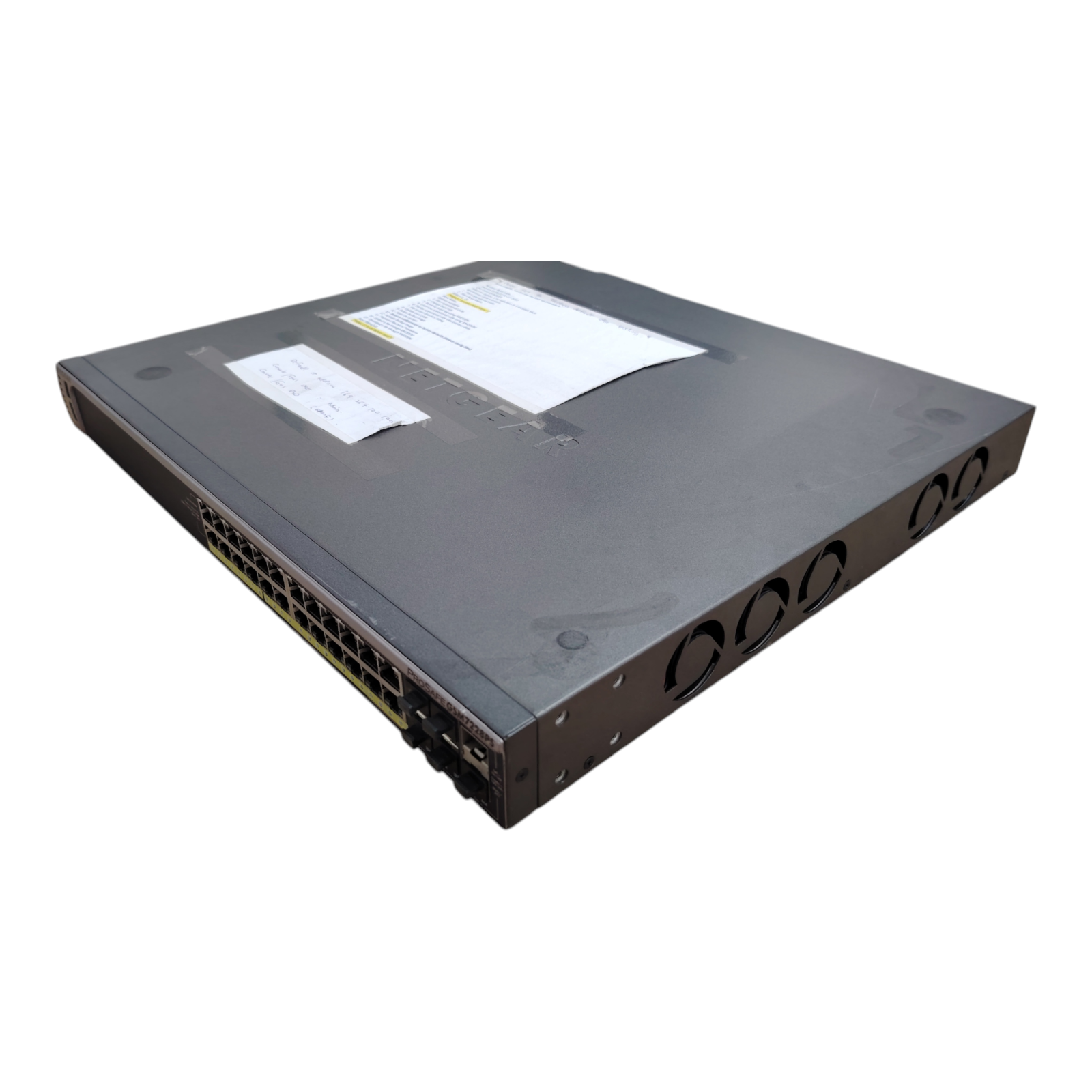

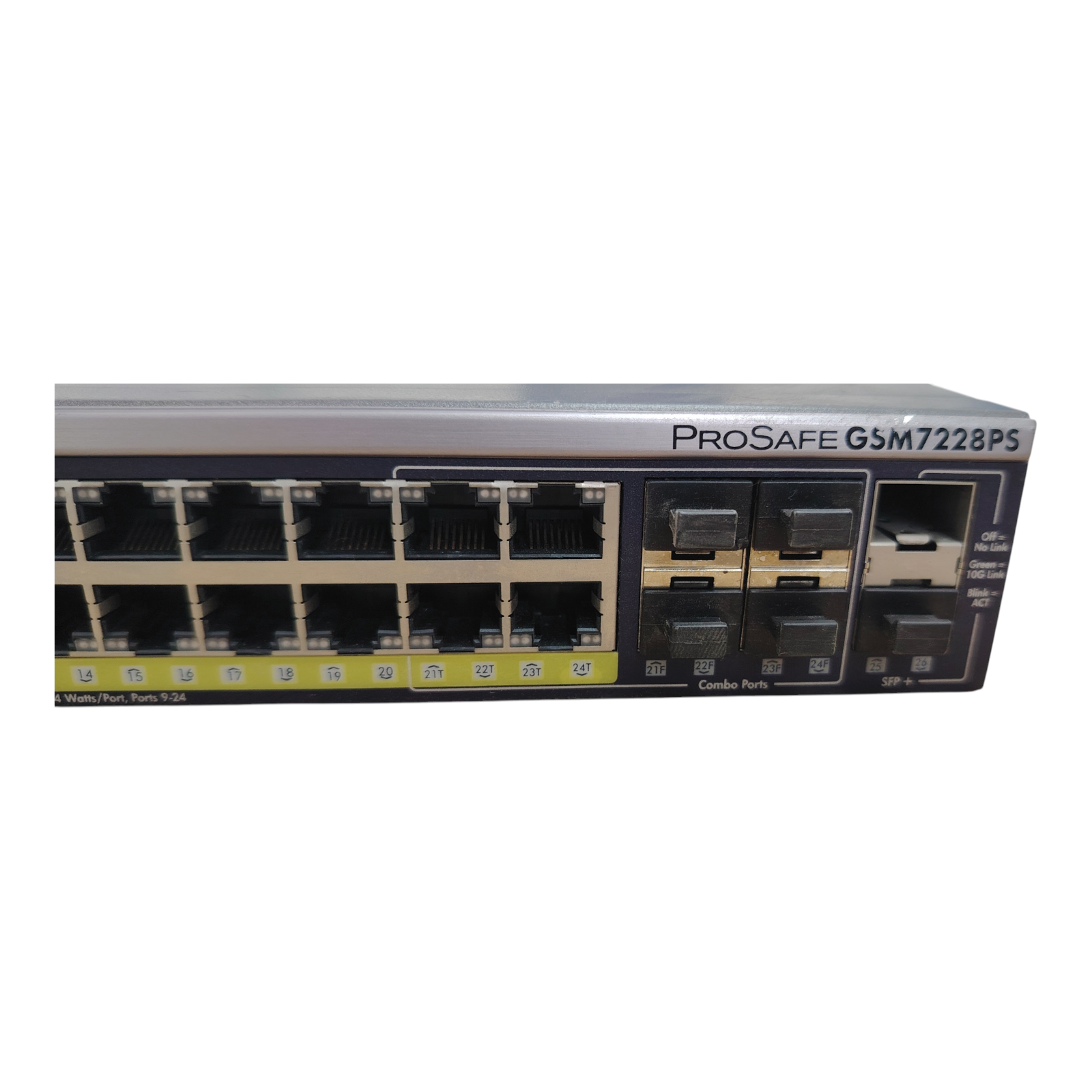

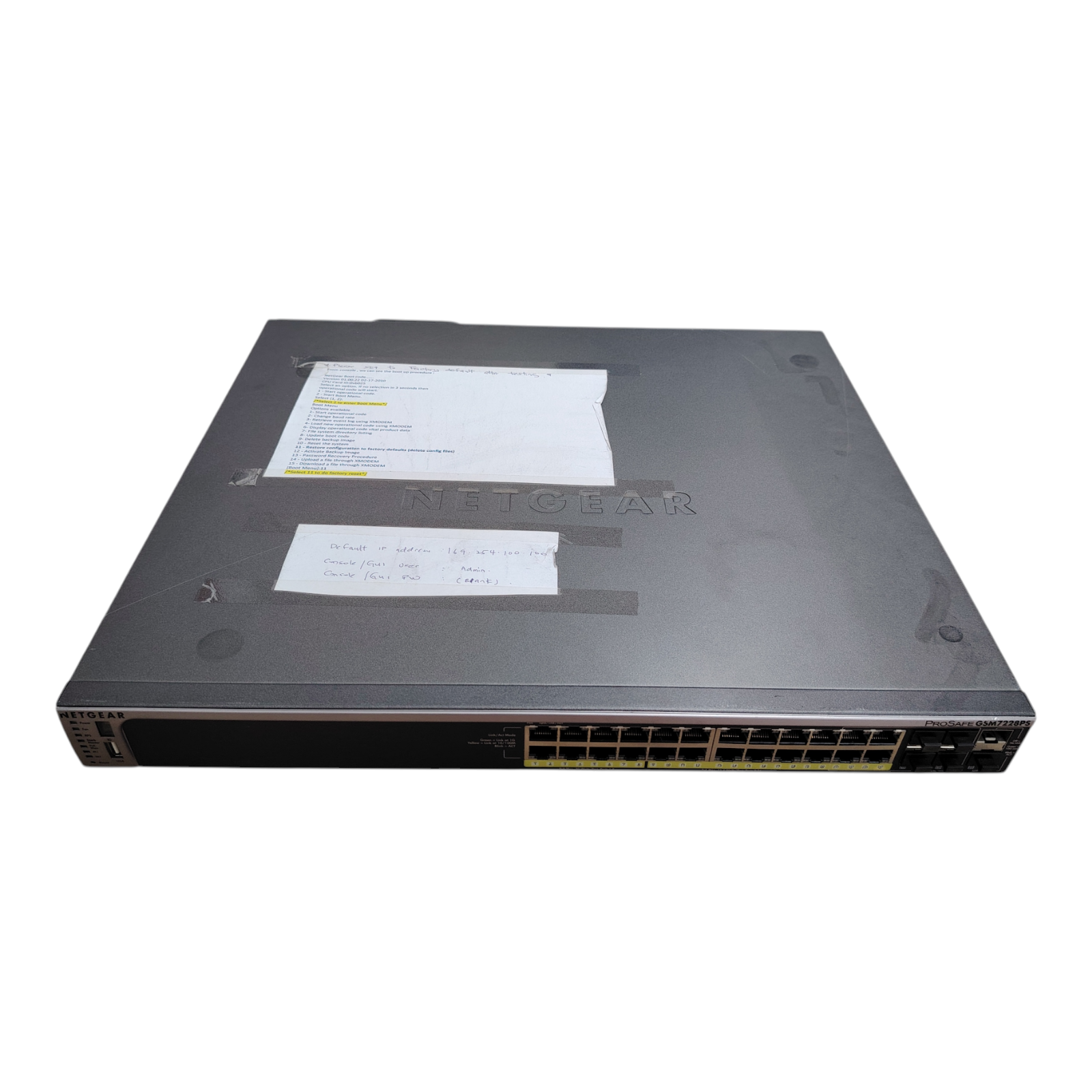

NETGEAR GSM7228PS 24-Port PoE Gigabit Managed Switch with 4 SFP and 2 SFP+ uplinks. Reliable, scalable, and ideal for SMB PoE deployments.
| Specification | Details |
|---|---|
| Brand | NETGEAR |
| Model | GSM7228PS |

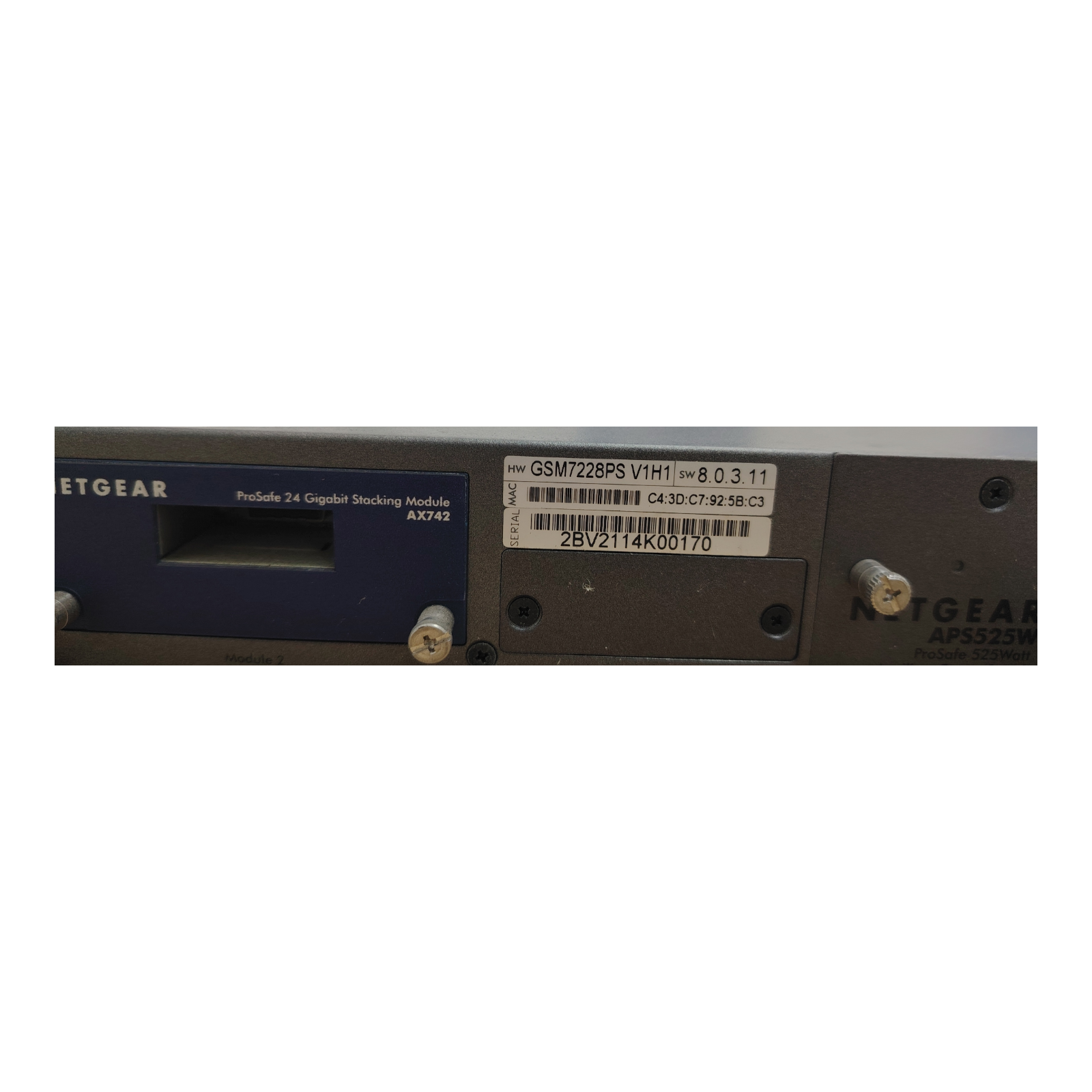

| Hardware Version | V1H1 |
| Software Version | 8.0.3.11 |
| Ports | 24 × 10/100/1000 Mbps RJ-45 PoE |
| Expansion | 4 × Shared SFP, 2 × Dedicated SFP+ |
| Power Supply | APS525W (ProSafe 525W module) |
| Stacking Module | AX742 (ProSafe 24 Gigabit Stacking Module) |
| Serial Number (Example) | 2BV2114K00170 |
| MAC Address (Example) | C4:3D:C7:92:5B:C3 |
| Form Factor | 1U Rack-Mountable |
| Class | Managed, Enterprise-grade |
Product Features
-
24 Gigabit PoE ports for IP phones, wireless APs, and surveillance cameras
-
4 SFP combo slots for fiber connectivity
-
2 SFP+ 10GbE uplink ports for high-speed aggregation
-
Fully managed Layer 2 switch with some Layer 3 Lite features
-
Web GUI, CLI, and SNMP for flexible management
-
525W power supply ensures reliable PoE delivery
-
Rack-mountable 1U design for enterprise and SMB networks
-
Ideal for converged networks requiring PoE and uplink scalability
General Product Information
The NETGEAR GSM7228PS is a 24-Port Gigabit PoE Managed Switch designed for small to medium-sized businesses that need scalable, secure, and high-performance networking. Featuring 24 Gigabit RJ-45 ports with Power over Ethernet (PoE), it is perfect for powering devices like IP phones, wireless access points, and IP surveillance cameras, eliminating the need for separate power adapters.
For network expansion, the switch includes 4 SFP combo ports and 2 dedicated 10GbE SFP+ uplinks, allowing seamless integration into larger enterprise networks and high-speed backbones. The built-in APS525W 525W power module ensures consistent PoE power delivery across connected devices.
As a fully managed switch, the GSM7228PS provides Web GUI, CLI, and SNMP management options, along with advanced features such as VLANs, QoS, IGMP snooping, and limited Layer 3 Lite routing. This makes it versatile enough to handle demanding business applications while keeping traffic optimized and secure.
The AX742 stacking module enables multiple switches to operate as a single logical unit, simplifying management and scaling network capacity. Its 1U rackmount form factor makes it easy to deploy in server rooms and network racks.
The NETGEAR GSM7228PS is the ideal choice for businesses seeking a cost-effective enterprise-grade switch that combines PoE, fiber uplinks, and 10GbE scalability.
Technical Specifications Table
| Category | Specification |
|---|---|
| Brand | NETGEAR |
| Model | GSM7228PS |
| Product Line | ProSafe Managed Switch |
| Ports | 24 × 10/100/1000 Mbps RJ-45 PoE |
| Uplinks | 4 × SFP Combo, 2 × SFP+ 10GbE |
| Switching Capacity | 128 Gbps (typical for GSM7228PS series) |
| Forwarding Rate | ~95 Mpps |
| Power Supply | APS525W (525W) |
| Stacking Support | AX742 Stacking Module |
| Layer Support | Layer 2 with Layer 3 Lite features |
| Management | Web GUI, CLI, SNMP |
| Form Factor | 1U Rack-Mountable |
| Power Input | Auto-ranging 100–240V AC |
| Cooling | Integrated fan cooling |
| Hardware Version | V1H1 |
| Software Version | 8.0.3.11 |
Compatible Products
-
NETGEAR SFP/SFP+ transceivers (fiber modules)
-
NETGEAR AX742 Stacking Module for scalability
-
Enterprise servers (Dell, HPE, Lenovo ThinkSystem)
-
Wireless APs and VoIP phones (PoE-enabled)
-
NAS storage and surveillance systems
-
Compatible with Windows Server, Linux, VMware ESXi
Ideal Use Cases
-
Office and enterprise LAN backbone
-
Small-to-medium business networks
-
VoIP phone deployments with PoE
-
Wi-Fi AP deployments with centralized power
-
IP surveillance systems requiring PoE and fiber uplinks
-
Data center edge switching with 10GbE uplinks
Comparison Angle
The NETGEAR GSM7228PS offers PoE support, stacking, and SFP+ uplinks, distinguishing it from entry-level NETGEAR managed switches like the GSM7224. Compared to unmanaged PoE switches, the GSM7228PS provides full management, VLAN segmentation, and advanced traffic controls. The inclusion of 2 SFP+ 10GbE uplinks makes it more future-proof for high-performance backbones.
