Description

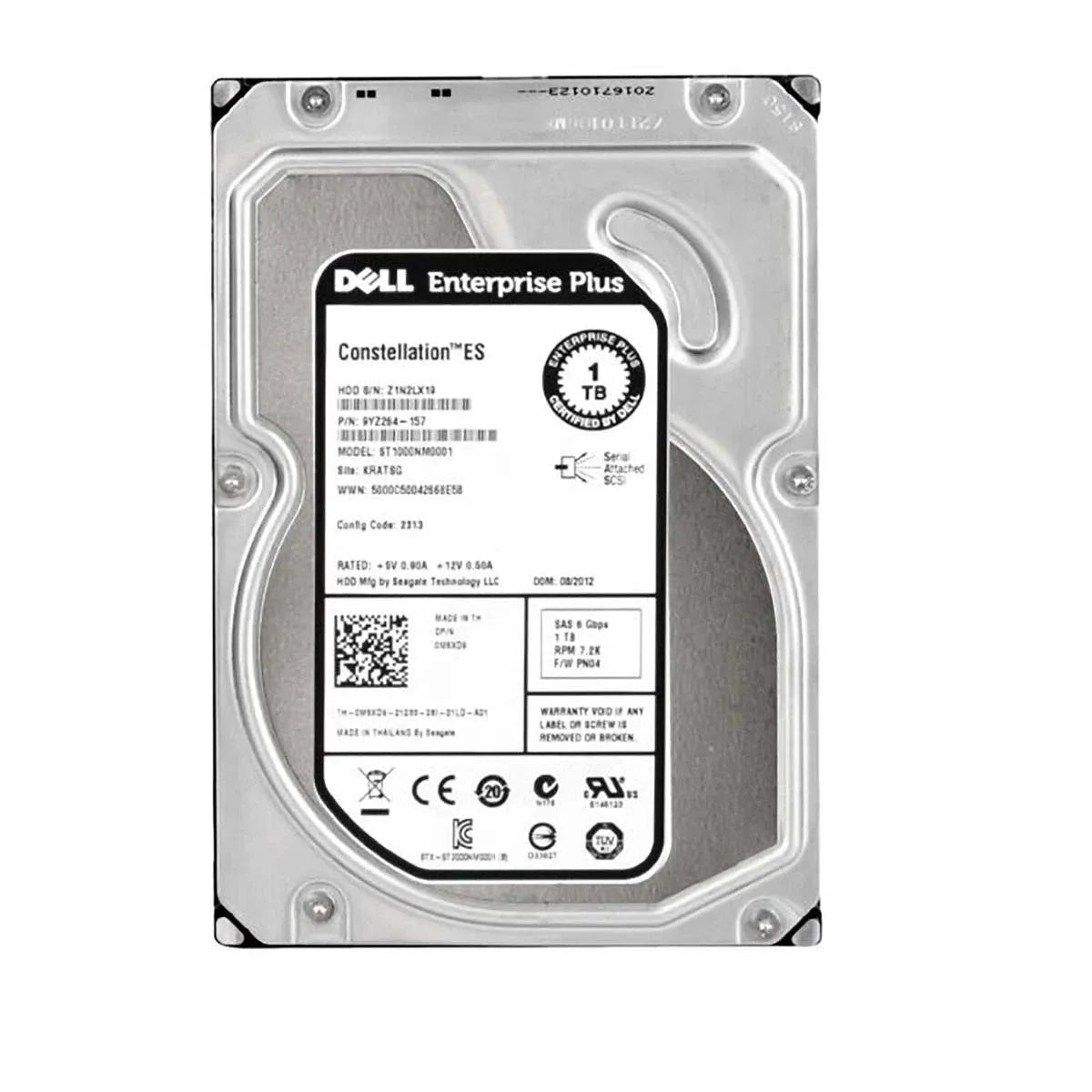

Dell 1TB 3.5" SAS HDD 0M5XD9. Enterprise-class 7200RPM hard drive with SAS 6Gb/s interface, designed for Dell servers & storage arrays.
| Specification | Details |
|---|---|
| Brand | Dell (Enterprise Plus) |
| Model | ST1000NM0001 (Constellation ES) |
| Part Number (P/N) | 0M5XD9 / 9YZ224-157 |
| Capacity | 1TB |
| Form Factor | 3.5-inch |
| Interface | SAS 6Gb/s |
| Rotational Speed | 7200 RPM |
| Firmware | PN04 |
| Voltage/Power | +5V 0.90A / +12V 0.50A |
| Date of Manufacture | 2012 |
| Country of Manufacture | Thailand |
| Certifications | CE, UL, TUV, KC, RoHS |
| Caddy | Not included (bare drive) |
Product Features
-
1TB storage capacity – ideal for enterprise workloads
-
Enterprise-class SAS HDD certified by Dell
-
7200 RPM spindle speed for reliable performance
-
3.5-inch form factor – designed for Dell servers & arrays
-
Hot-swap capable (requires tray/caddy)
-
Durable design for 24/7 data center use
-
Manufactured by Seagate for Dell Enterprise Plus
General Product Information
The Dell 1TB 3.5" SAS HDD (0M5XD9 / ST1000NM0001) is a high-performance enterprise hard drive built for Dell PowerEdge servers and storage arrays. With 1TB of capacity, a 7200 RPM spindle speed, and a SAS 6Gb/s interface, it delivers the perfect balance of storage, performance, and reliability for demanding IT environments.
Part of the Dell Enterprise Plus lineup, this drive is certified for continuous 24/7 workloads, offering superior durability and uptime compared to standard desktop HDDs. It is manufactured by Seagate (Constellation ES series) and optimized for Dell systems, ensuring seamless compatibility and firmware integration.
Whether you need scalable storage for data centers, backup arrays, or business-critical applications, the Dell 0M5XD9 provides dependable enterprise-class performance.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand | Dell |
| Manufacturer | Seagate Technology (Constellation ES Series) |
| Model | ST1000NM0001 |
| Part Number (P/N) | 0M5XD9 / 9YZ224-157 |
| Capacity | 1TB |
| Form Factor | 3.5-inch |
| Interface | SAS 6Gb/s |
| Rotational Speed | 7200 RPM |
| Cache | 64MB (typical for this model) |
| Firmware | PN04 |
| Power Requirements | +5V 0.90A / +12V 0.50A |
| Hot-Swap Support | Yes (with tray) |
| MTBF | 1.2 million hours |
| Workload Rating | 550TB/year |
| Operating Temperature | 5°C – 55°C |
| Country of Manufacture | Thailand |
| Dimensions (HxWxD) | 26.1mm × 101.6mm × 147mm |
| Weight | ~700g |
Compatible Products
-
Dell PowerEdge Servers – R510, R610, R710, R720, R730, R810
-
Dell PowerVault Storage Arrays
-
Dell EqualLogic SAN systems
-
SAS-enabled servers from HP, IBM, Lenovo, Supermicro
-
Compatible with Dell PERC RAID controllers
-
OS support: Windows Server, Linux, VMware ESXi, UNIX
Ideal Use Cases
-
Enterprise servers & storage arrays
-
Data backup & archiving
-
Virtualization platforms
-
High-availability applications
-
RAID configurations for redundancy and performance
-
Data center expansion projects
Comparison Angle
Compared to desktop-class SATA drives, the Dell 0M5XD9 SAS HDD offers better error correction, enterprise durability, and faster sustained performance. With Dell firmware optimization and Seagate Constellation ES enterprise-grade build, it stands out as a reliable solution for mission-critical applications.
Cross-Sell / Upsell Suggestions
-
Dell 2TB & 4TB SAS HDDs – for higher storage capacity
-
Dell Enterprise SSDs – hybrid solutions for speed and reliability
-
Dell PowerEdge servers – fully scalable IT hardware
-
Dell PERC RAID controllers – enhance redundancy & I/O
-
Hot-swap trays & caddies – for quick deployment
