Description

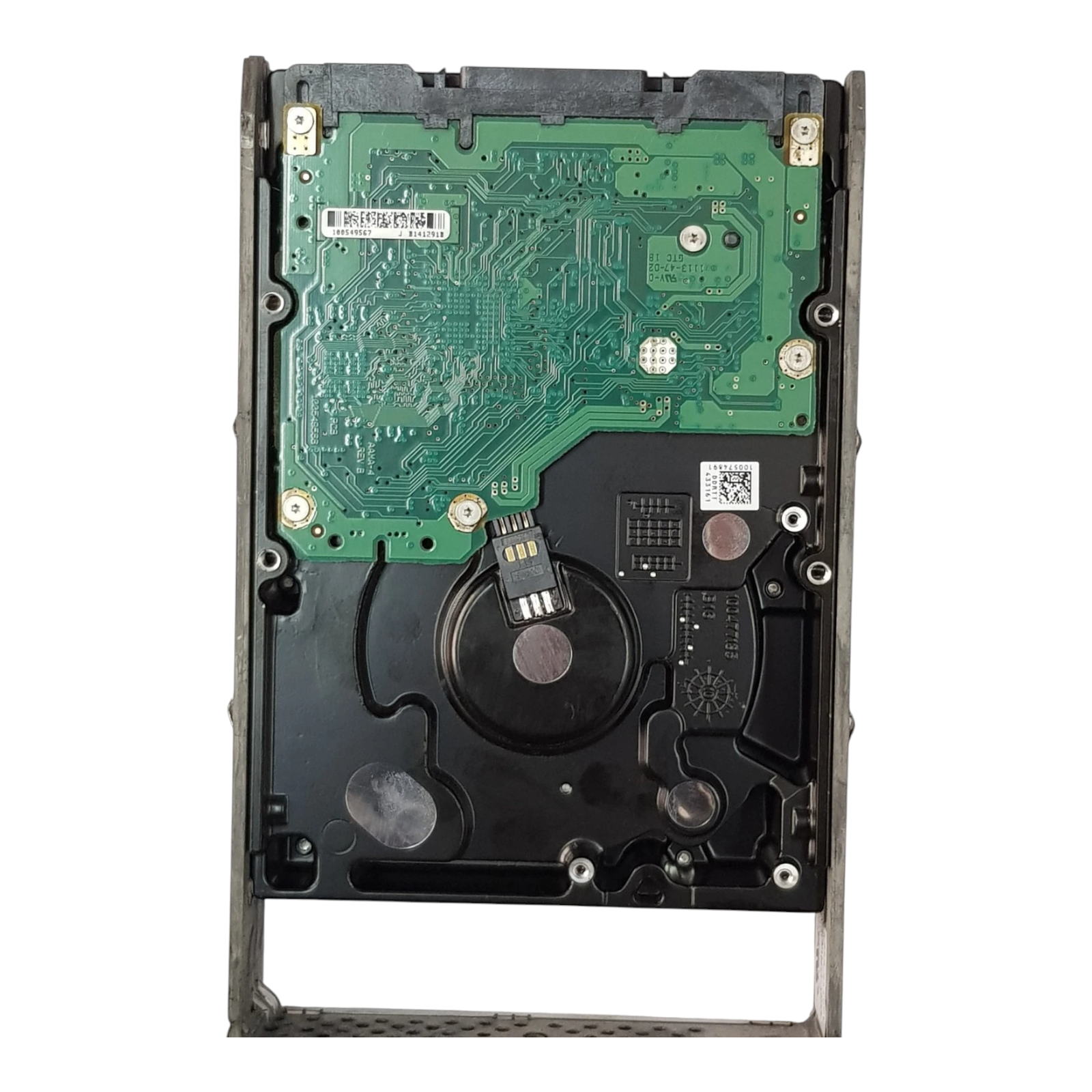

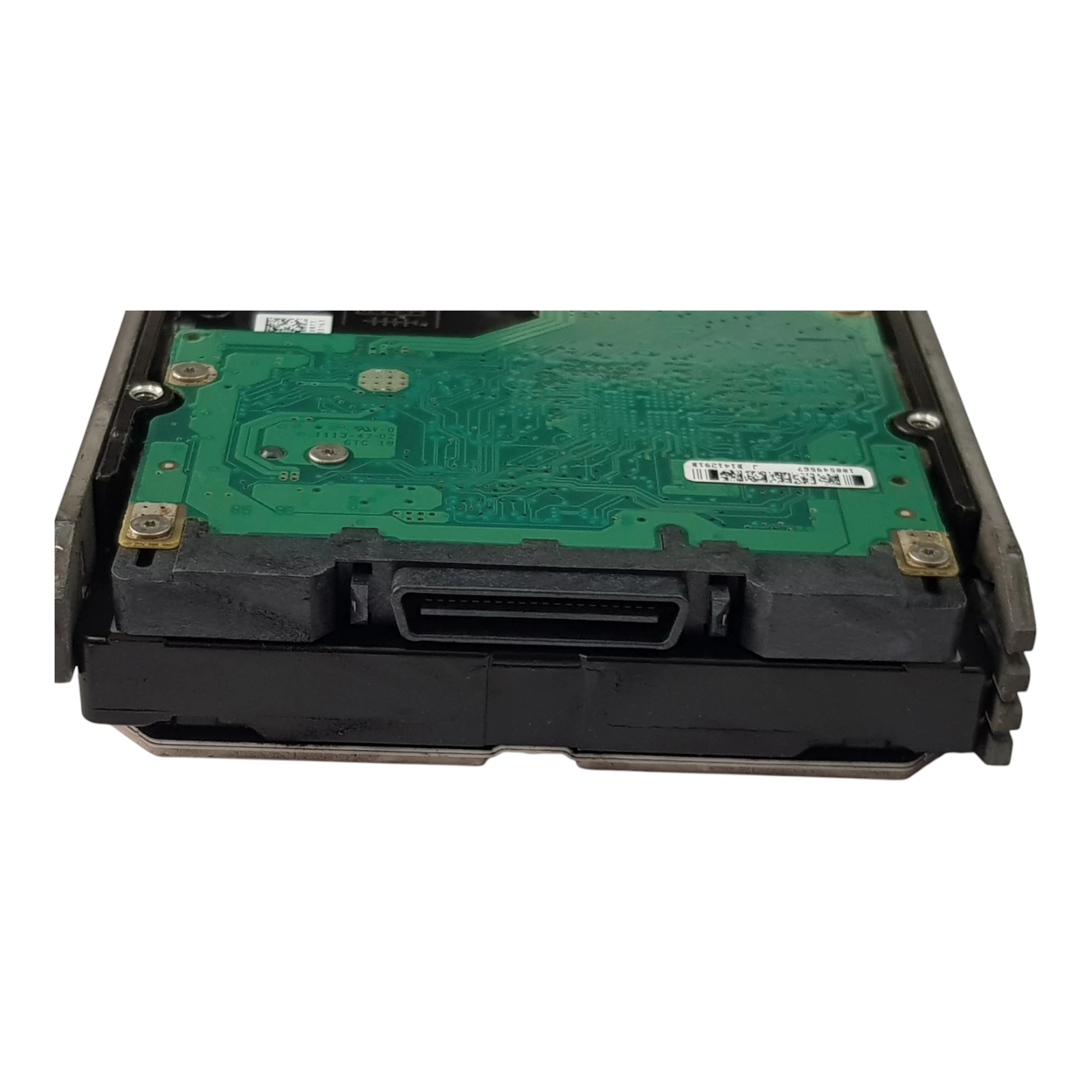

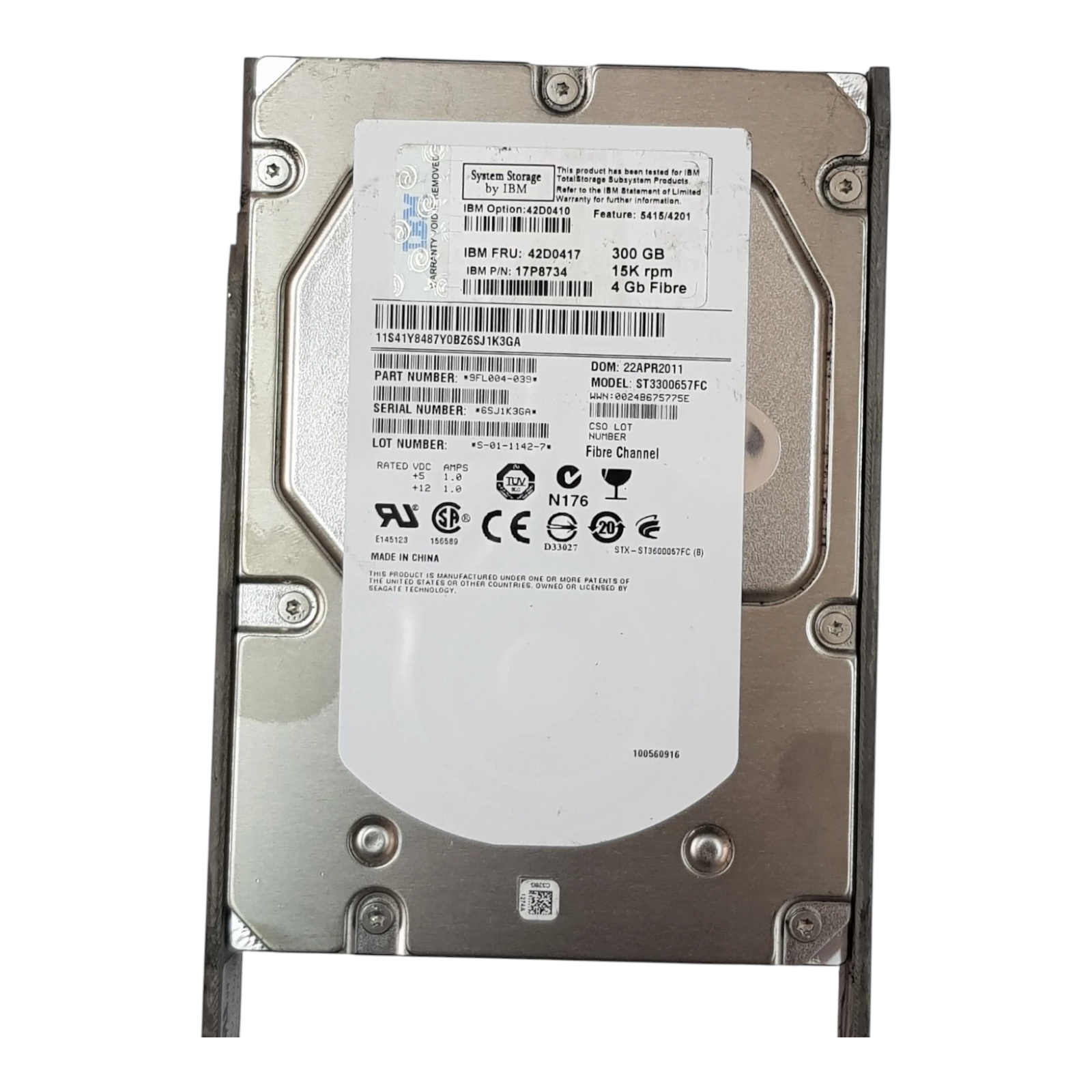

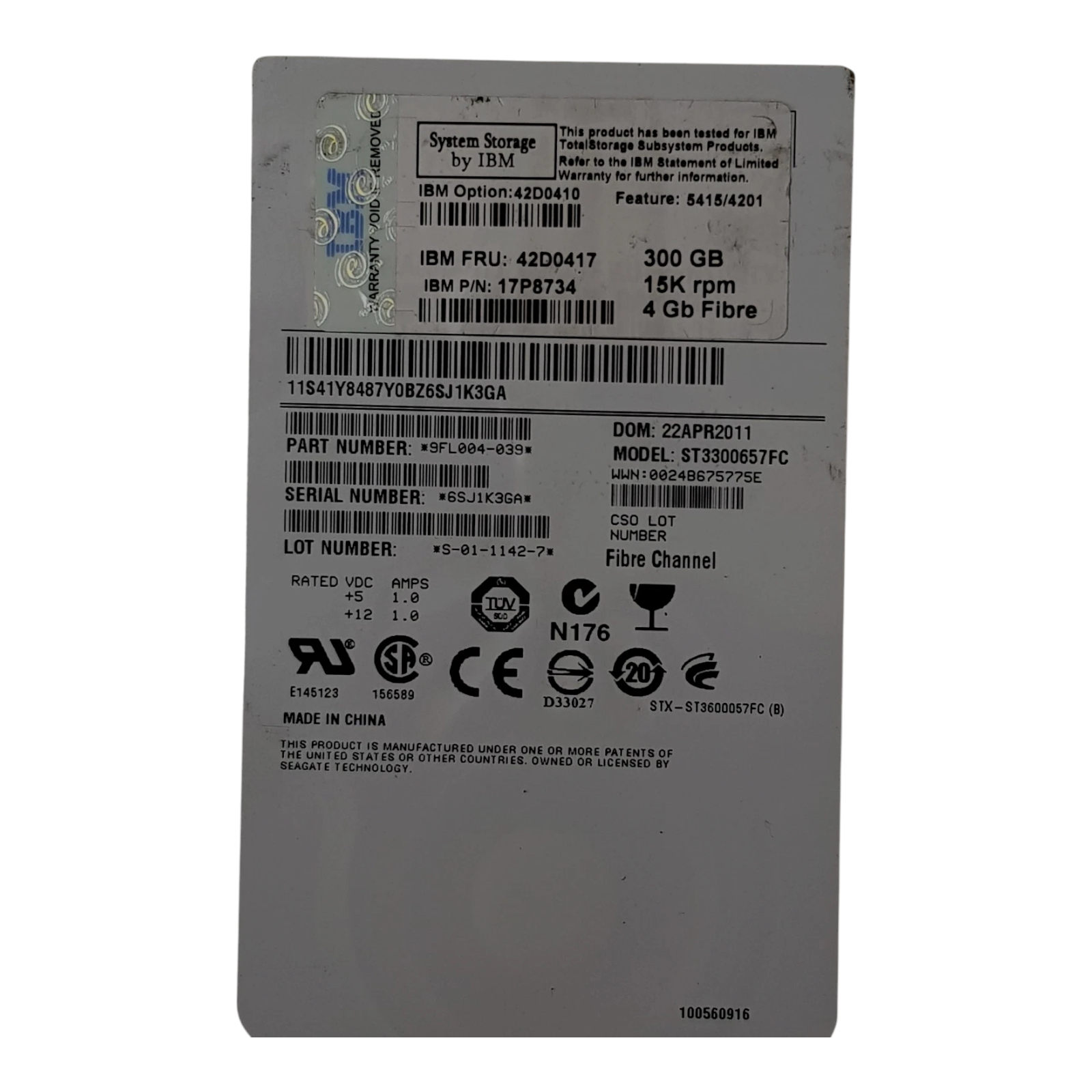

IBM 300GB 15K RPM 3.5" FC HDD ST3300657FC / 17P8734. Enterprise-class Fibre Channel hard drive for IBM servers & storage arrays. High performance & reliable.
| Specification | Details |
|---|---|
| Brand | IBM |
| Model | ST3300657FC |
| Part Number (P/N) | 17P8734 |
| FRU Number | 42D0417 |
| Option Number | 42D0410 |
| Capacity | 300GB |
| Form Factor | 3.5-inch |
| Interface | Fibre Channel (FC) 4Gb |
| Rotational Speed | 15,000 RPM |
| Firmware | Feature 5415/4201 |
| Voltage/Power | +5V 1.0A / +12V 1.0A |
| Date of Manufacture | April 2011 |
| Country of Manufacture | China |
| Certifications | CE, UL, TUV, KC, FCC |
| Caddy | Not included (bare drive) |
Product Features
-
300GB enterprise storage capacity
-
15,000 RPM spindle speed for maximum performance
-
4Gb Fibre Channel interface – high-speed, reliable connectivity
-
3.5-inch form factor – fits IBM servers & storage systems
-
IBM-certified for use in enterprise environments
-
Hot-swap capable in FC storage arrays (with caddy)
-
Manufactured by Seagate for IBM
-
Built for 24/7 mission-critical workloads
General Product Information
The IBM 300GB 3.5" FC HDD (ST3300657FC / P/N 17P8734) is an enterprise-class hard drive designed for high-performance data storage in IBM servers and storage arrays. With a 300GB capacity, 15K RPM rotational speed, and 4Gb Fibre Channel interface, this drive provides outstanding performance for transaction-heavy workloads, virtualization, and enterprise applications.
Manufactured by Seagate and certified by IBM, this drive ensures seamless integration into IBM storage systems. The 15K spindle speed reduces latency and accelerates data access, while the enterprise-grade Fibre Channel interface guarantees stable and high-bandwidth connectivity.
Engineered for 24/7 operation, the ST3300657FC is highly reliable for databases, SAN environments, and high-performance computing. Whether upgrading existing IBM arrays or replacing faulty drives, this model offers IBM-certified reliability and enterprise performance at a cost-effective value.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand | IBM |
| Manufacturer | Seagate (for IBM) |
| Model | ST3300657FC |
| Part Number (P/N) | 17P8734 |
| FRU Number | 42D0417 |
| Option Number | 42D0410 |
| Capacity | 300GB |
| Form Factor | 3.5-inch |
| Interface | Fibre Channel (4Gb/s) |
| Rotational Speed | 15,000 RPM |
| Cache | 16MB (typical for this model) |
| Power Requirements | +5V 1.0A / +12V 1.0A |
| Hot-Swap Support | Yes (with FC tray/caddy) |
| MTBF | 1.6 million hours |
| Workload Rating | 550TB/year |
| Operating Temperature | 5°C – 55°C |
| Country of Manufacture | China |
| Dimensions (HxWxD) | 26.1mm × 101.6mm × 147mm |
| Weight | ~700g |
Compatible Products
-
IBM System x Servers
-
IBM Storage Arrays – DS Series, FAStT, SAN systems
-
Enterprise Fibre Channel SAN/NAS solutions
-
Compatible with Fibre Channel HBAs
-
Operating systems: Windows Server, VMware ESXi, Linux, UNIX
Ideal Use Cases
-
Enterprise SAN storage arrays
-
Database hosting with high IOPS demand
-
Virtualization workloads (VMware, Hyper-V)
-
High-performance computing environments
-
RAID arrays requiring fast access
-
24/7 mission-critical business operations
Comparison Angle
Compared to traditional SATA or SAS drives, the IBM ST3300657FC Fibre Channel HDD delivers higher bandwidth, lower latency, and superior reliability. Its 15K RPM speed makes it significantly faster than 10K and 7.2K drives, making it ideal for mission-critical enterprise workloads. As an IBM-certified drive, it provides better integration, stability, and support than generic alternatives.
Cross-Sell / Upsell Suggestions
-
IBM 600GB 15K RPM FC HDDs – higher capacity upgrades
-
IBM SAS HDDs & SSDs – hybrid storage setups
-
IBM System x & BladeCenter Servers – compatible hardware
-
IBM Storage Arrays (DS, V7000) – scalable storage systems
-
Fibre Channel HBAs & switches – for SAN connectivity
