Description
Huawei S5735-L24P4S-A1 24-port Gigabit PoE switch with 4 SFP uplinks and 1x PSU. Reliable, enterprise-grade Layer 3 switch for networks and data centers.
| specifications | Details |
|---|---|
| Brand | Huawei |
| Model | S5735-L24P4S-A1 |
| Type | Gigabit PoE Ethernet Switch |
| Ports | 24 × 10/100/1000 Mbps RJ45 PoE Ports, 4 × SFP uplink slots |
| Power Supply | 1 × PSU |
| Input Voltage | 100–240V ~ 50/60 Hz |
| Max Current | 0.6A |

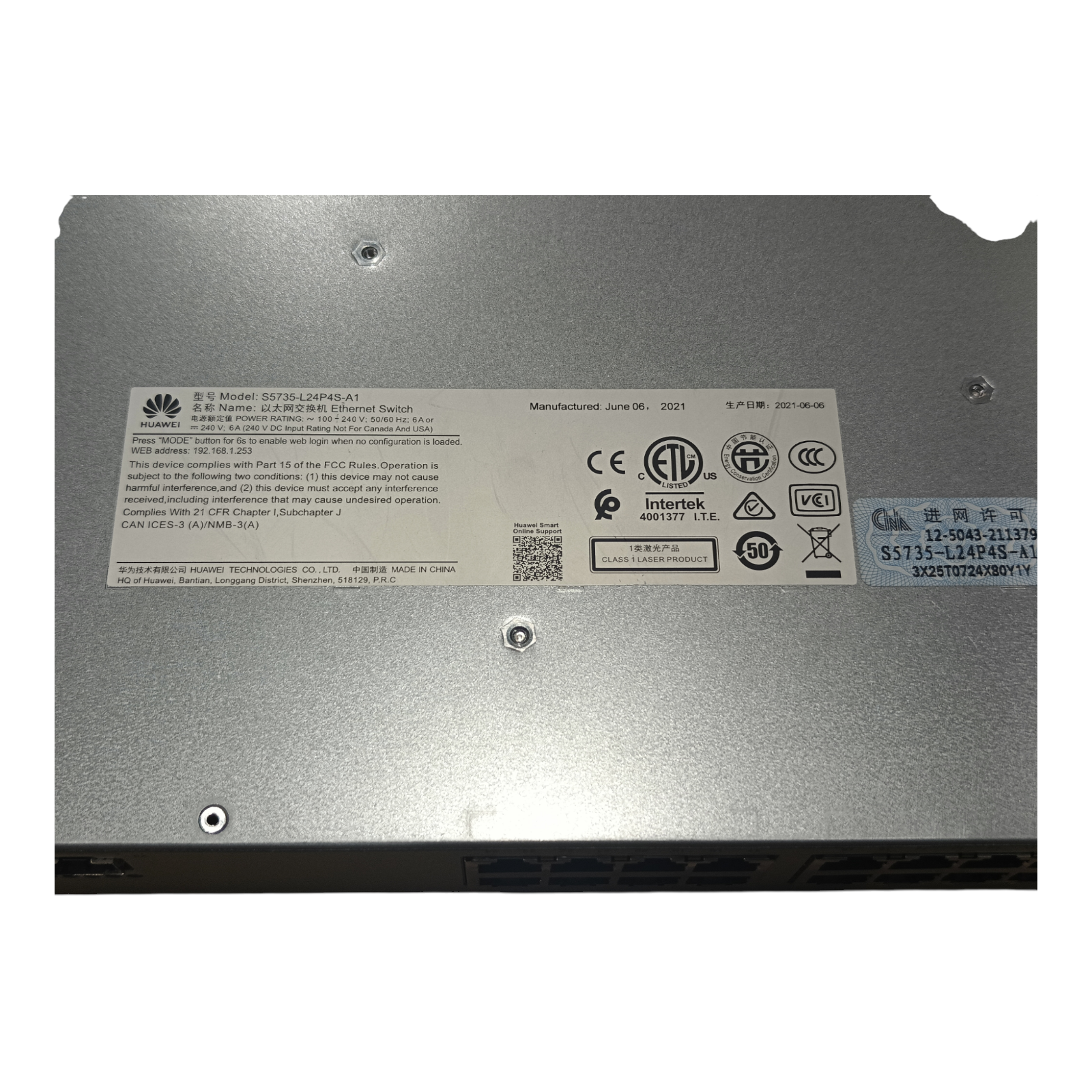

| Certifications | CE, UL, ETL, FCC, Intertek, EAC, CCC, VCCI |
| Compliance | CAN ICES-3 (A)/NMB-3(A), FCC Part 15 |
| Laser Safety | Class 1 Laser Product |
| Country of Origin | Made in China |
| Manufacturer | Huawei Technologies Co., Ltd. |
| Factory Location | Shenzhen, China |
| Manufacturing Date (Example) | June 6, 2021 |
Product Features
-

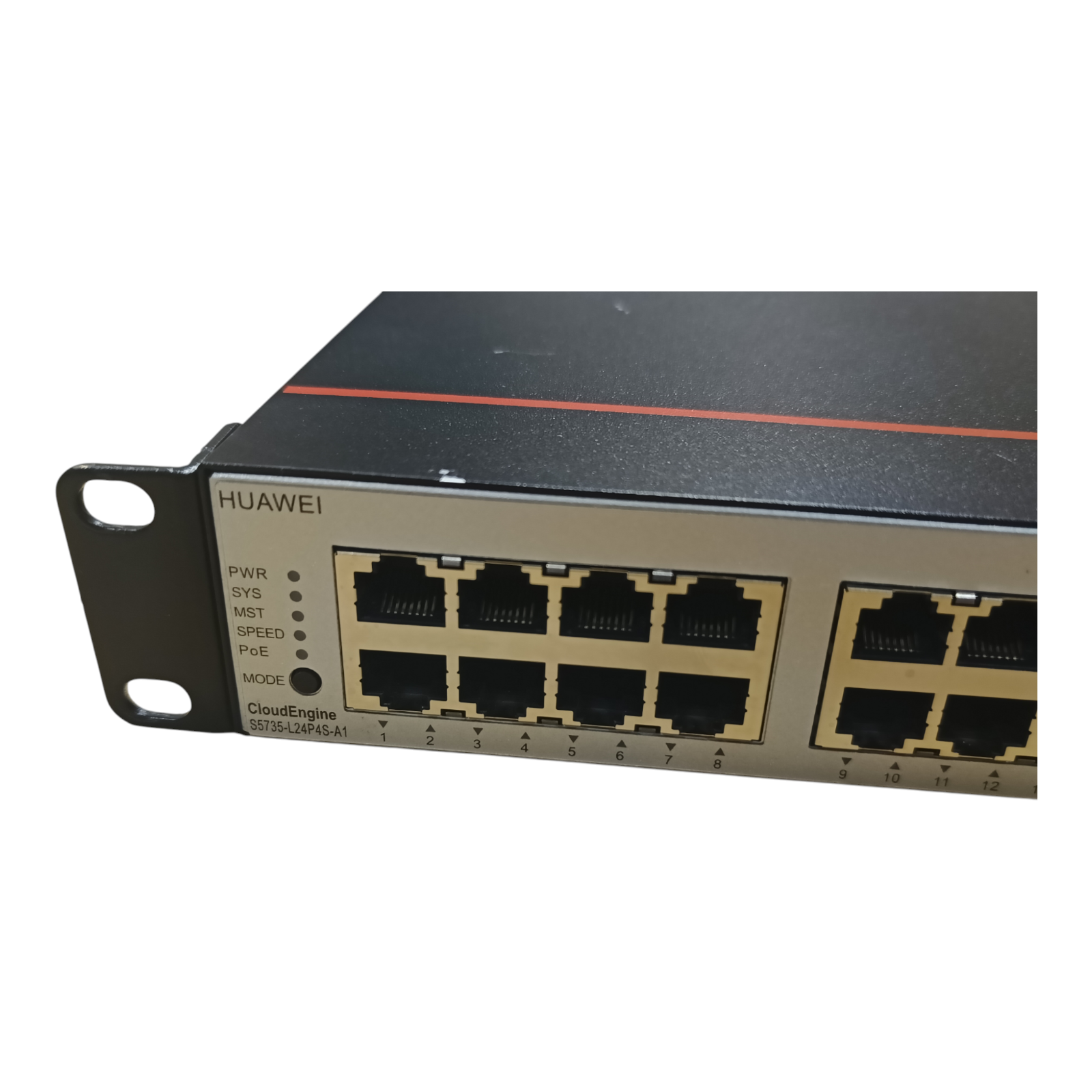

24 PoE-Enabled Gigabit Ports – Deliver power and data to IP phones, cameras, and APs.
-

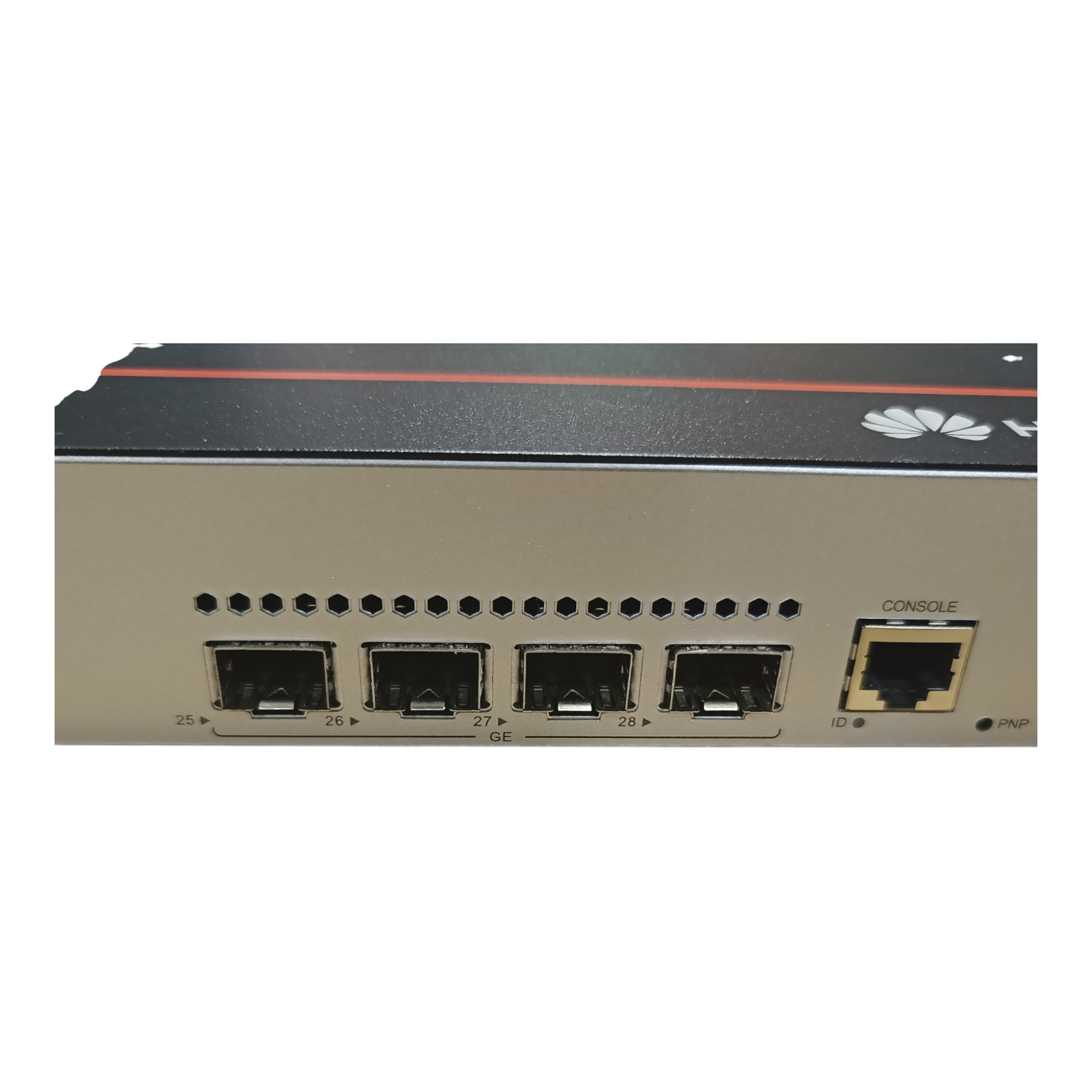

4 SFP Uplinks – High-speed fiber uplink support for aggregation and backbone networks.
-
Enterprise Performance – Reliable Layer 3 switching for demanding business networks.
-
1 × Hot-Swappable PSU – Ensures stable power delivery and easy replacement.
-
Certified & Compliant – CE, UL, FCC, Intertek, and global safety certifications.
-
Silent & Efficient Cooling – Designed for 24/7 data center and enterprise use.
-
Scalable Network Infrastructure – Perfect for expanding corporate or campus networks.
General Product Information
The Huawei S5735-L24P4S-A1 is a high-performance Gigabit PoE Ethernet switch engineered for enterprise, data center, and campus network environments. Featuring 24 × 10/100/1000 Mbps RJ45 PoE ports, it powers IP-based devices such as VoIP phones, access points, and surveillance cameras directly over Ethernet cables, reducing infrastructure complexity.
With 4 × SFP uplink slots, the switch supports high-speed fiber connectivity for aggregation or uplink to core switches. Built with enterprise-grade reliability, the S5735 delivers advanced Layer 3 switching, enabling smooth integration into complex, multi-layer network topologies.
The included 1× PSU ensures consistent power delivery, while redundant cooling and Huawei’s energy-efficient design allow for 24/7 continuous operation in mission-critical environments. Global certifications including CE, UL, FCC, ETL, EAC, and VCCI provide assurance of quality and safety.
Whether for business campuses, surveillance systems, hospitality networks, or enterprise data centers, the Huawei S5735-L24P4S-A1 offers a scalable, efficient, and cost-effective networking solution.
Technical Specifications Table
| Specification | Details |
|---|---|
| Model | Huawei S5735-L24P4S-A1 |
| Type | Gigabit PoE Switch |
| Form Factor | Rackmount (1U standard) |
| Ports | 24 × RJ45 Gigabit (PoE) |
| Uplink Ports | 4 × SFP slots |
| Switching Capacity | Up to 128 Gbps (typical for this model series) |
| PoE Support | IEEE 802.3af/at compliant |
| Power Supply | 1 × PSU included |
| Input Voltage | 100–240V ~, 50/60 Hz, 0.6A |
| Certifications | CE, UL, ETL, FCC, EAC, CCC, VCCI, Intertek |
| Compliance | CAN ICES-3 (A)/NMB-3(A), FCC Part 15 |
| Laser Classification | Class 1 Laser Product |
| Country of Origin | China |
| Manufacturer | Huawei Technologies Co., Ltd. |
Compatible Products
-
Servers: Huawei Fusion Server, Dell PowerEdge, HPE ProLiant
-
Networking: Huawei Cloud Engine, Cisco Catalyst, Dell EMC Networking switches
-
Wireless: Huawei AirEngine Wi-Fi 6 APs, Ubiquiti UniFi APs (via PoE)
-
Security: IP cameras, firewall appliances, and access control devices
-
Operating Systems: Works with Windows Server, VMware ESXi, Linux (RHEL, Ubuntu), and network monitoring platforms (Nagios, Zabbix, SolarWinds)
Ideal Use Cases
-
Enterprise Networks – Large-scale business connectivity with PoE-powered devices.
-
Data Centers – Aggregation or access-layer switch for high-density deployments.
-
Campus Networks – Universities, hospitals, and government offices.
-
Surveillance Systems – Powering IP security cameras via PoE.
-
Hospitality & Retail – Wi-Fi access point integration and digital signage support.
Comparison Angle
The Huawei S5735-L24P4S-A1 improves upon older Huawei S5720 models with higher switching capacity, lower latency, enhanced PoE performance, and stronger compliance certifications. Compared to Cisco Catalyst switches in the same class, Huawei’s S5735 offers better cost efficiency, simplified management, and strong integration with Huawei’s CloudEngine ecosystem.
Cross-Sell / Upsell Suggestions
-
Huawei S6720 Series Core Switches (aggregation/core layer)
-
Huawei AirEngine Wi-Fi 6 Access Points
-
Huawei CloudEngine switches for data center expansion
-
UPS systems (Eaton, APC) for network resilience
-
Compatible SFP/SFP+ optical modules & DAC cables
