Description
HP ProLiant DL380 Gen9 Server with dual Xeon E5-2630L v4 CPUs, 96GB DDR4, SSD + SAS storage, RAID & 10/40Gb networking. Reliable enterprise performance.
| Component | Details |
|---|---|
| Brand / Model | HP ProLiant DL380 Gen9 |
| Form Factor | Rack Mountable, 2U, 2.5" bays |
| Processor | 2 × Intel Xeon E5-2630L v4, 10 cores / 20 threads, 1.8 GHz base, 2.9 GHz turbo, DDR4-2133, 55W TDP |
| Memory | 96 GB (6 × HPE 809082-091 SK Hynix 16GB DDR4-2400 ECC Registered DIMMs) |
| Storage | 2 × 480GB SATA 2.5" SSD (RAID 0) + 1 × 300GB 10K 6G SAS HDD |
| RAID Controller | HP Smart Array P440AR / 2GB FBWC (12Gb SAS, 749796-001) |
| HBA Card | HPE 764737-001 10Gb/40Gb Dual-Port 544+FLR-QSFP Adapter |
| PCIe Riser | HP 777281-001 DL380 Gen9 3-Slot PCIe Riser Card |

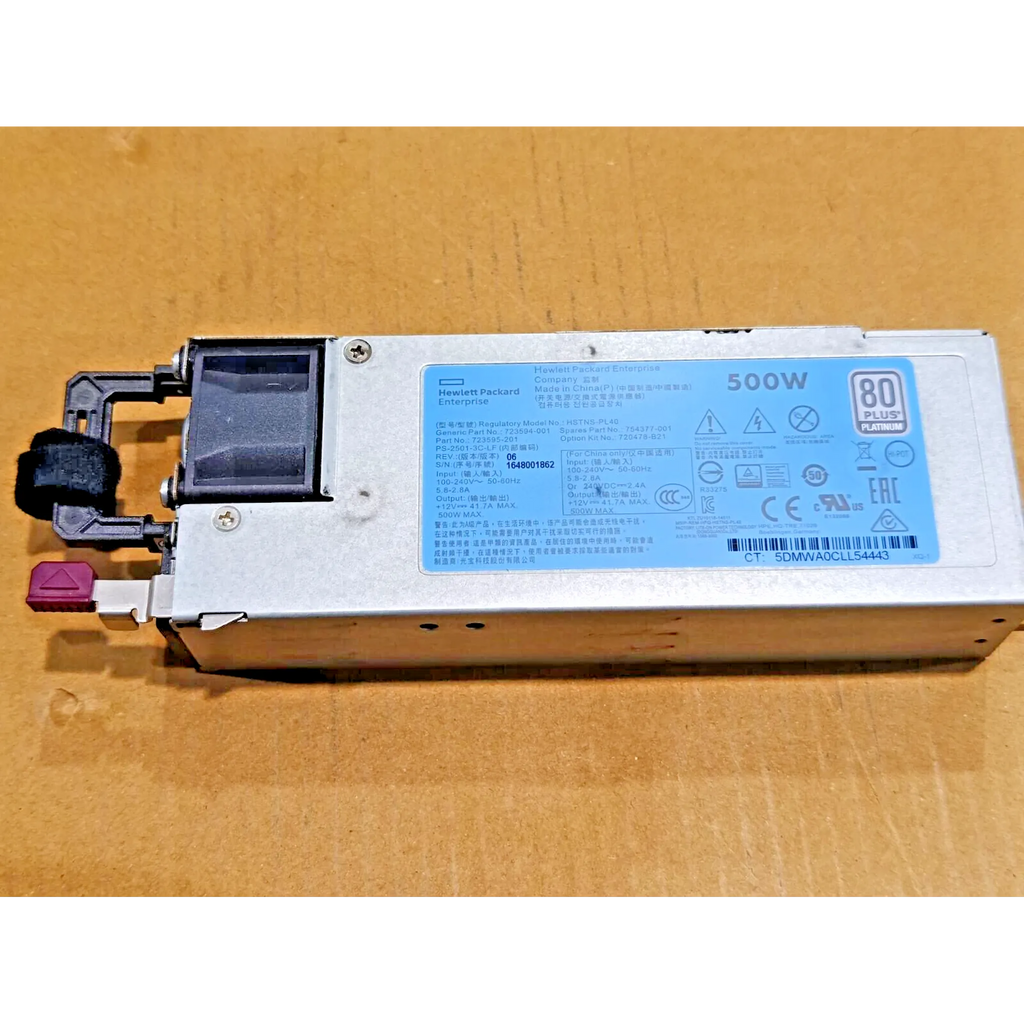

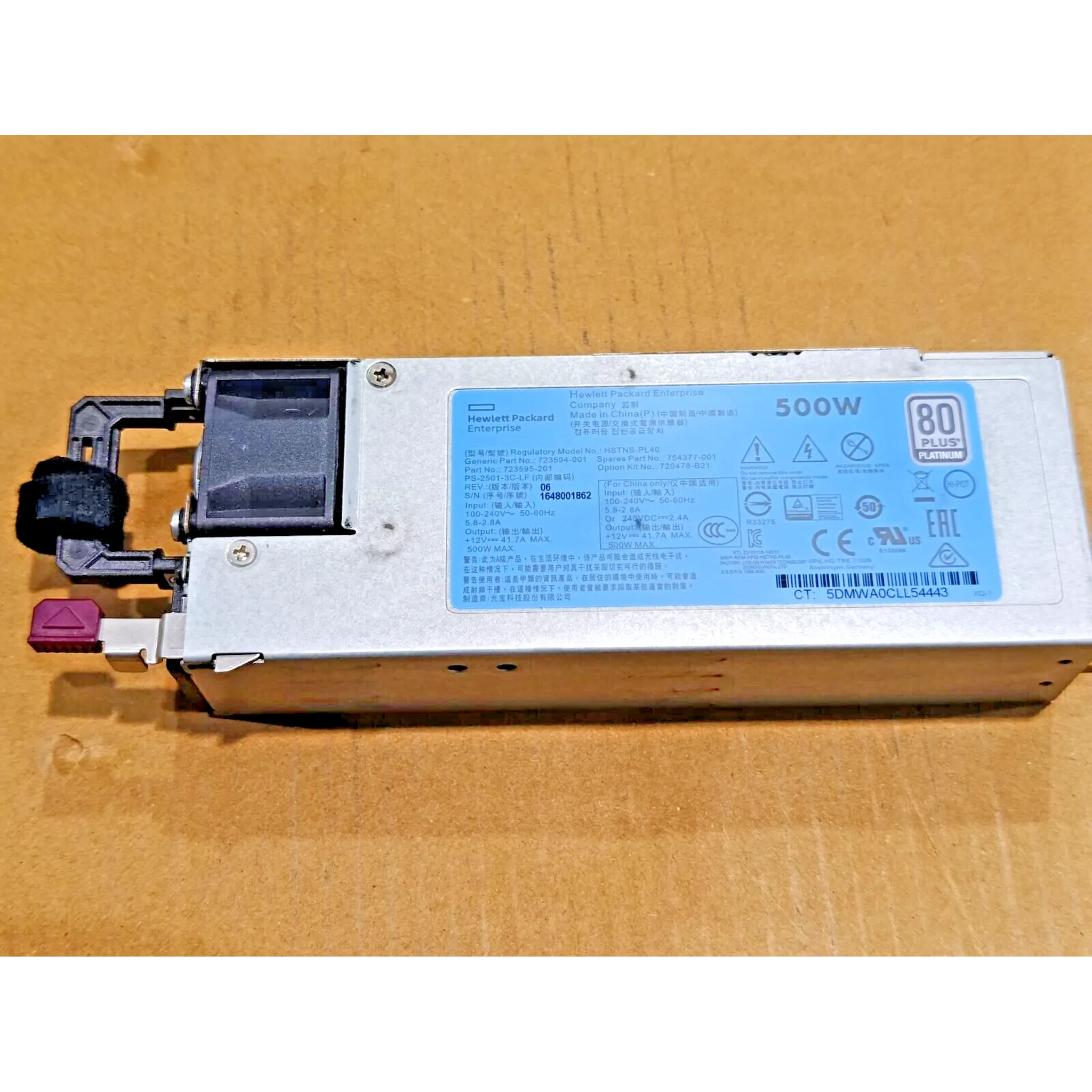

| Power Supply | 2 × HP 723595-001 500W FS Platinum Hot-Plug PSU |
| Cooling | HP High Performance Heatsink (747608-001) |
Product Features
-
Dual Intel Xeon E5-2630L v4 processors with 20 cores / 40 threads total
-
96GB DDR4 ECC Registered Memory for reliable performance
-
Hybrid storage: SSD + SAS HDD for speed and capacity balance
-
Enterprise RAID with HP Smart Array P440AR/2GB FBWC
-
High-speed networking via 10Gb/40Gb Dual-Port QSFP Adapter
-
Dual 500W Platinum PSUs for redundancy and efficiency
-
Designed for scalable enterprise, virtualization, and database workloads
General Product Information
The HP ProLiant DL380 Gen9 Server is built for enterprise-class scalability, reliability, and performance. Equipped with two Intel Xeon E5-2630L v4 processors (20 cores / 40 threads), this system delivers powerful compute capabilities while maintaining energy efficiency with a low 55W TDP.
With 96GB of DDR4 ECC Registered memory, the server supports demanding workloads such as virtualization, cloud infrastructure, and high-performance computing. Its hybrid storage configuration combines fast 480GB SATA SSDs (RAID 0) for acceleration with a 300GB 10K SAS HDD for reliability and durability.
The integrated HP Smart Array P440AR RAID controller ensures data protection and performance optimization, while the HPE 10/40Gb Dual-Port Adapter enables high-speed networking, making it ideal for modern data centers.
Featuring dual 500W Platinum Hot-Plug PSUs and enterprise-grade cooling, the DL380 Gen9 ensures maximum uptime, efficiency, and scalability for mission-critical applications. Whether for virtualization, database hosting, or large-scale enterprise workloads, this server is engineered to deliver consistent results.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand | HP |
| Model | ProLiant DL380 Gen9 |
| Form Factor | Rackmount, 2U, 2.5" |
| CPUs | 2 × Intel Xeon E5-2630L v4, 10C/20T each, 1.8 GHz base, 2.9 GHz turbo |
| Total Cores/Threads | 20 cores / 40 threads |
| Memory | 96GB DDR4 ECC Registered (6 × 16GB HPE SK Hynix modules, PC4-2400T) |
| Storage | 2 × 480GB SATA SSD + 1 × 300GB 10K SAS HDD |
| RAID Controller | HP Smart Array P440AR, 2GB FBWC |
| HBA Adapter | HPE 764737-001 Dual-Port 10Gb/40Gb QSFP |
| PCIe Expansion | HP 777281-001 3-Slot PCIe Riser |
| PSU | 2 × 500W Platinum Hot-Plug (723595-001) |
| Cooling | High Performance Heatsinks (747608-001) |
| Operating Systems | Windows Server, VMware ESXi, Linux (RHEL, SUSE, Ubuntu, CentOS) |
Compatible Products
-
HP ProLiant Gen9 ecosystem (DL380, DL360, ML350, etc.)
-
Supports Windows Server 2012 / 2016 / 2019, VMware ESXi 6.x & 7.x, major Linux distros
-
Compatible with additional HPE RAID controllers, NICs, storage arrays, and SAN solutions
-
Networking optimized for 10GbE / 40GbE data centers
Ideal Use Cases
-
Data centers & enterprise IT infrastructure
-
Virtualization (VMware, Hyper-V, KVM)
-
Database hosting & analytics
-
Cloud computing & private cloud nodes
-
High-performance computing (HPC) clusters
-
Business-critical workloads requiring redundancy & scalability
Comparison Angle
Compared to earlier DL380 Gen8 models, the Gen9 introduces support for DDR4 ECC Registered memory, higher core-count Intel Xeon v4 CPUs, and 12Gb/s Smart Array RAID controllers, delivering faster I/O, better virtualization density, and reduced energy consumption. This makes it a cost-effective upgrade for enterprises still running legacy Gen8 servers.
Cross-Sell / Upsell Suggestions
-
HPE 2TB / 4TB SAS Enterprise HDDs
-
Additional DDR4 ECC Registered RAM kits
-
HPE FlexibleLOM networking adapters (10/25GbE)
-
HP Smart Array Advanced RAID Controllers
-
Rack accessories: rails, bezels, and cable management kits
