Description
Dell PowerEdge R630 server with 2x Xeon E5-2630 V3, 64GB DDR4 RAM, 960GB SSD storage & dual 750W PSU. Optimized for virtualization, databases & enterprise IT.
Product Features
-
Dual Intel Xeon E5-2630 V3 CPUs (16 cores / 32 threads total)
-
64GB DDR4 ECC Registered Memory (8x 8GB SK Hynix 2400T DIMMs)
-
960GB Enterprise SSD Storage (2x Dell 480GB SSDs)
-
RAID controller installed for redundancy & performance
-
Redundant 750W Platinum Hot-Plug Power Supplies for uptime reliability
-
Compact 1U rackmount form factor for datacenters & enterprise use
-
Expandable with PCIe cards & NIC for networking and storage flexibility
-
Fully cleaned, tested, and enterprise ready
General Product Information

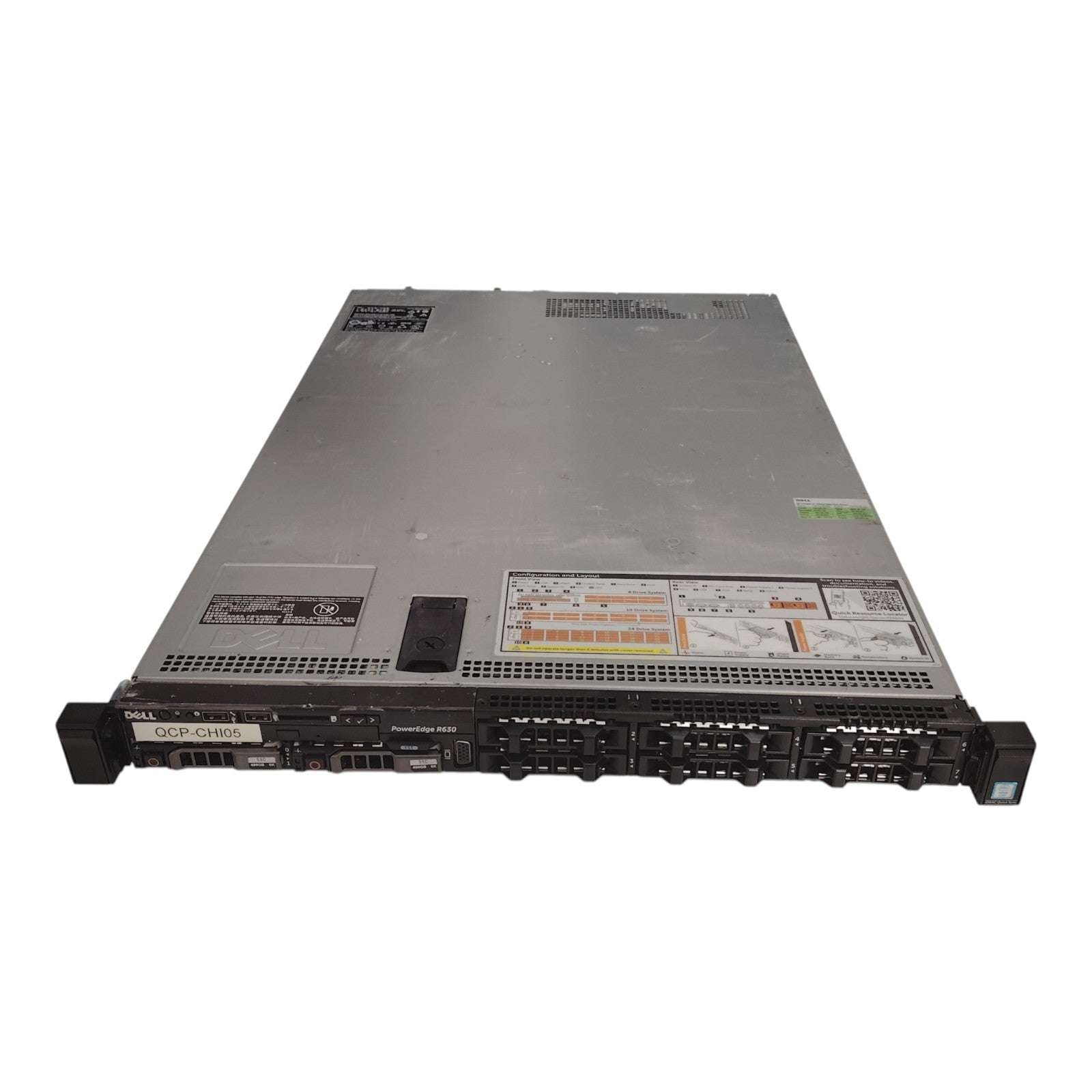

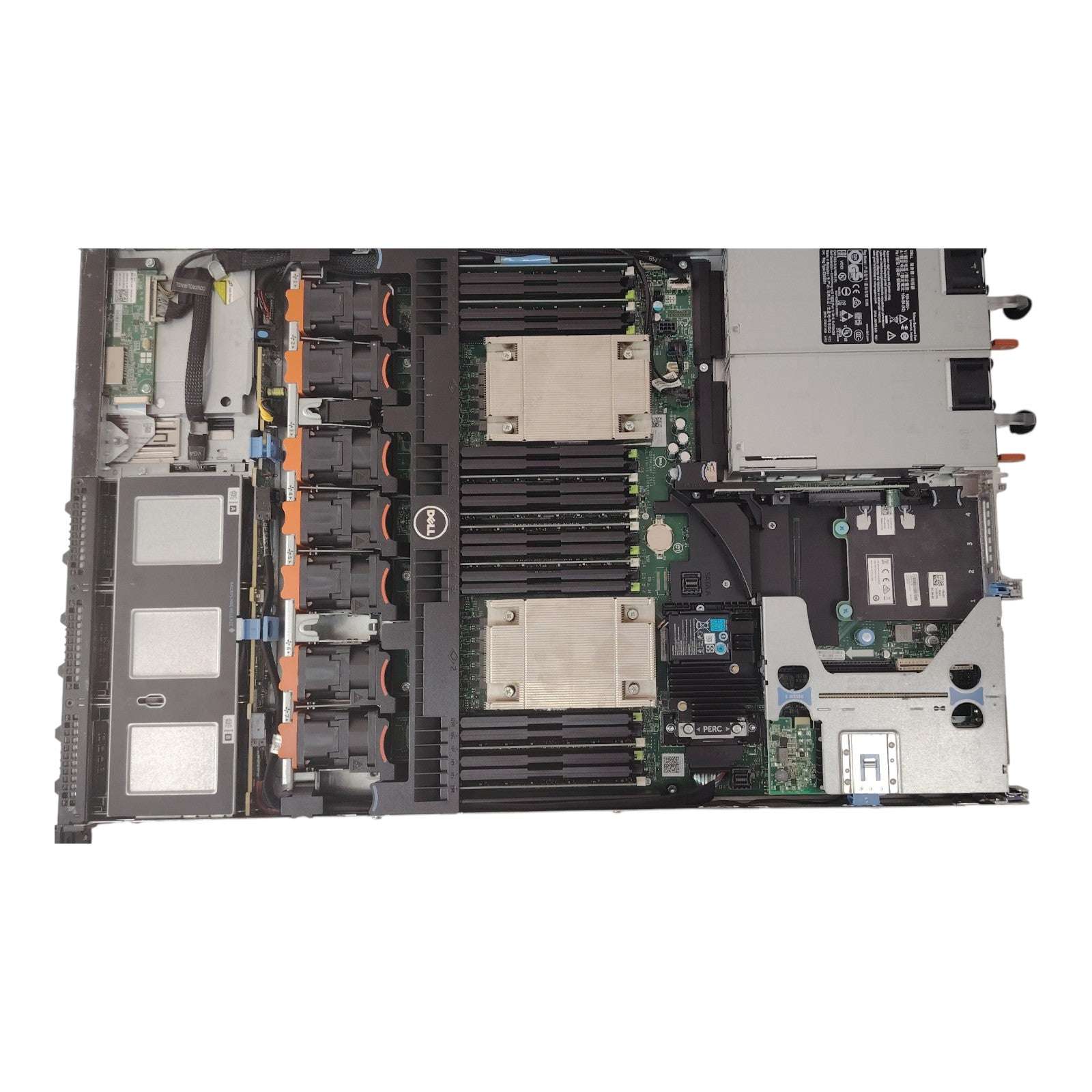

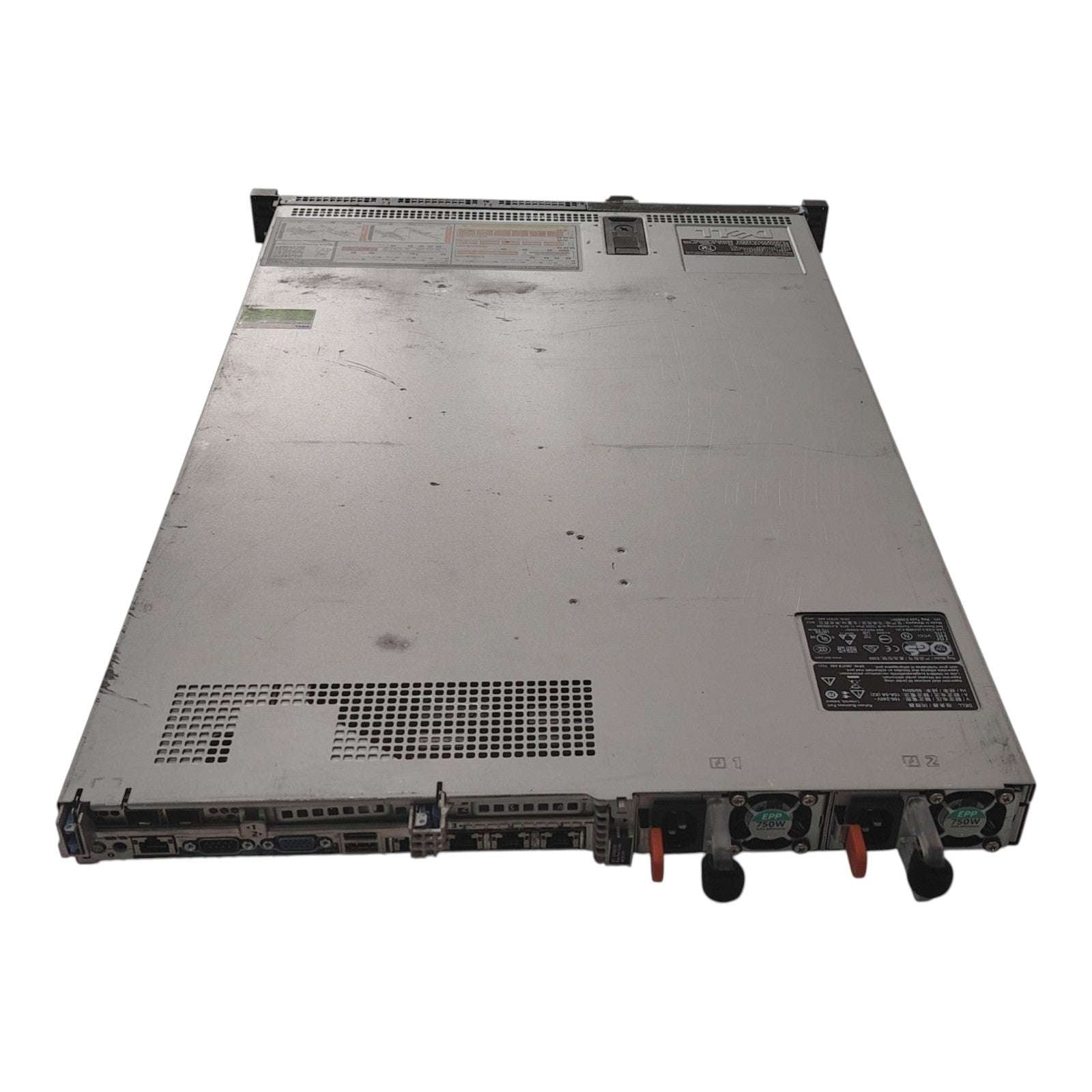

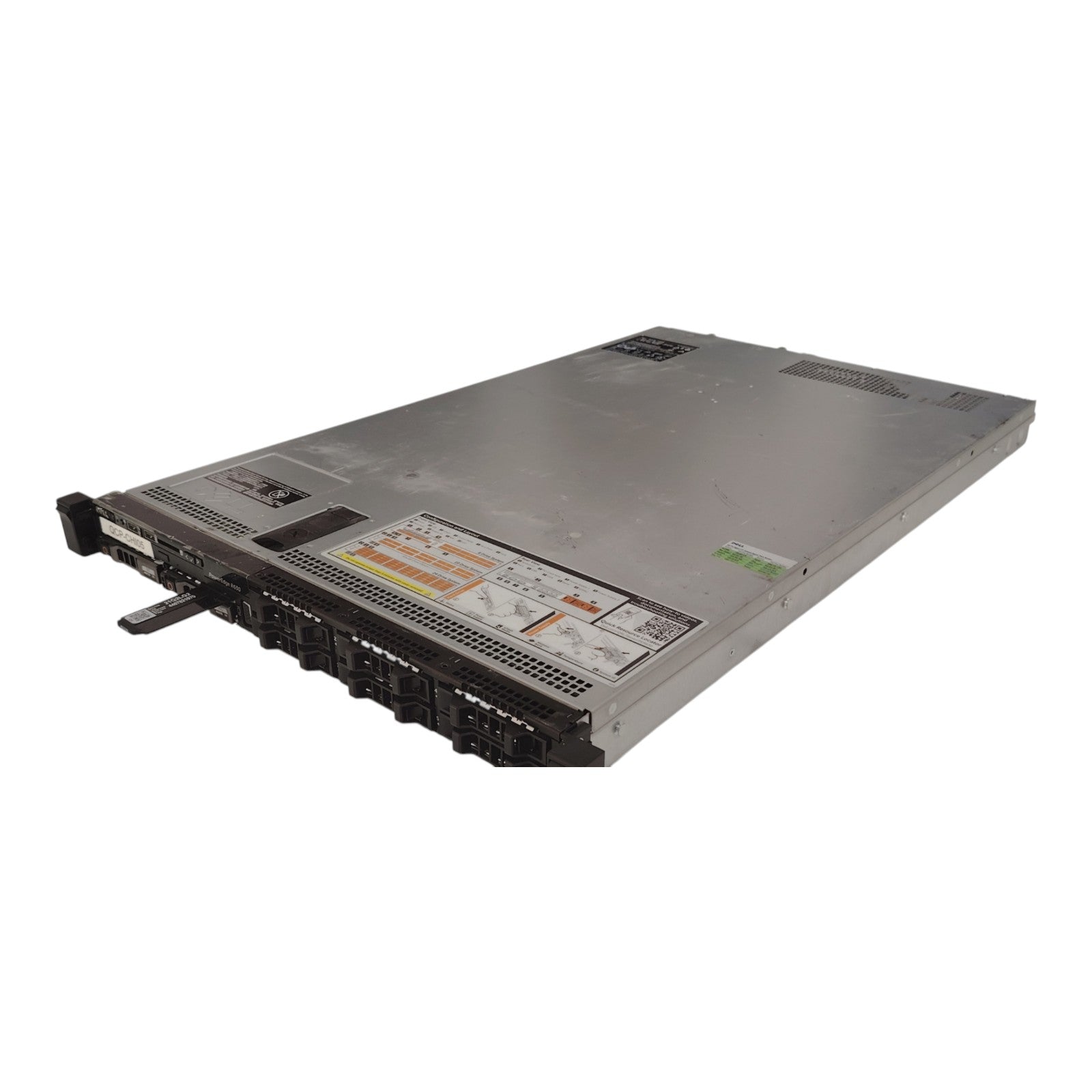

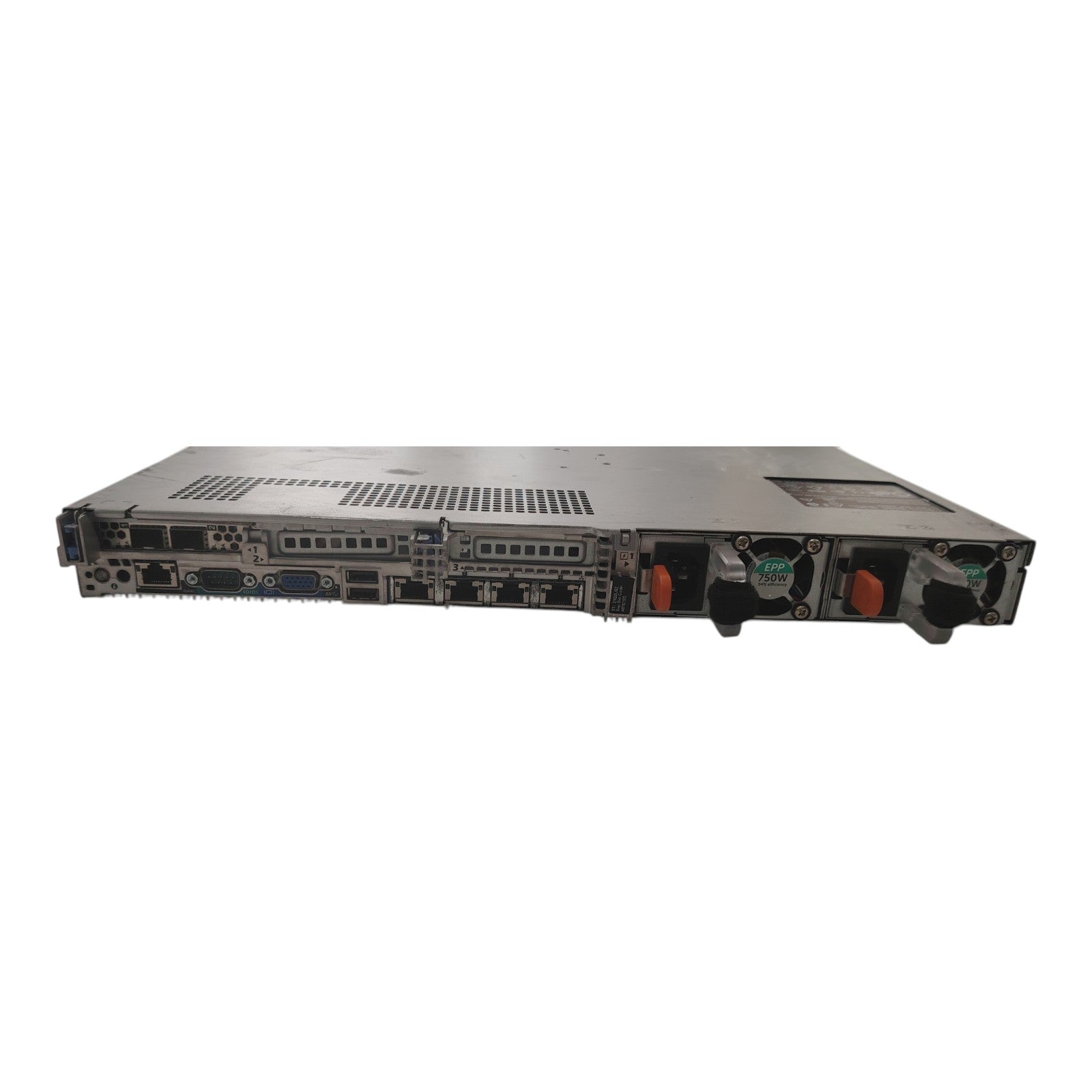

The Dell PowerEdge R630 is a performance-packed 1U rackmount server, built to deliver speed, scalability, and reliability for modern enterprise workloads. Featuring dual Intel Xeon E5-2630 V3 processors with a combined 16 cores / 32 threads, this system offers the computing power required for virtualization, cloud applications, and data-intensive databases.
Configured with 64GB DDR4 ECC Registered memory, the R630 ensures fast response times and stability under high workloads. Storage includes 2x Dell 480GB enterprise SSDs (total 960GB), providing fast data access and reliability. The integrated RAID controller enhances both performance and data protection, making it ideal for mission-critical tasks.
Designed with efficiency in mind, the server is equipped with dual 750W Platinum hot-plug power supplies, delivering energy-efficient redundancy for continuous uptime. Its 1U rackmount design makes it ideal for space-conscious datacenters without compromising on expandability, offering PCIe slots and networking options.
Whether you need a virtualization host, cloud server, or enterprise database solution, the Dell PowerEdge R630 is a proven platform trusted by IT professionals worldwide.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand / Model | Dell PowerEdge R630 |
| Form Factor | 1U Rack Server |
| Processor | 2x Intel Xeon E5-2630 V3 (8 cores / 16 threads each, 2.40GHz base, 3.20GHz turbo, 20MB cache) |
| Total Cores/Threads | 16 cores / 32 threads |
| Socket Type | LGA2011-v3 |
| Memory | 64GB DDR4 ECC Registered (8x 8GB SK Hynix 2400T) |
| Memory Capacity | Expandable up to 768GB |
| Storage | 2x Dell 0N5Y85 480GB SSDs (total 960GB) |
| Storage Bays Supported | Up to 10x 2.5" SAS/SATA SSDs or HDDs |
| RAID Support | Yes – RAID controller installed |
| Expansion Slots | 2x PCIe |
| Networking | Integrated NIC |

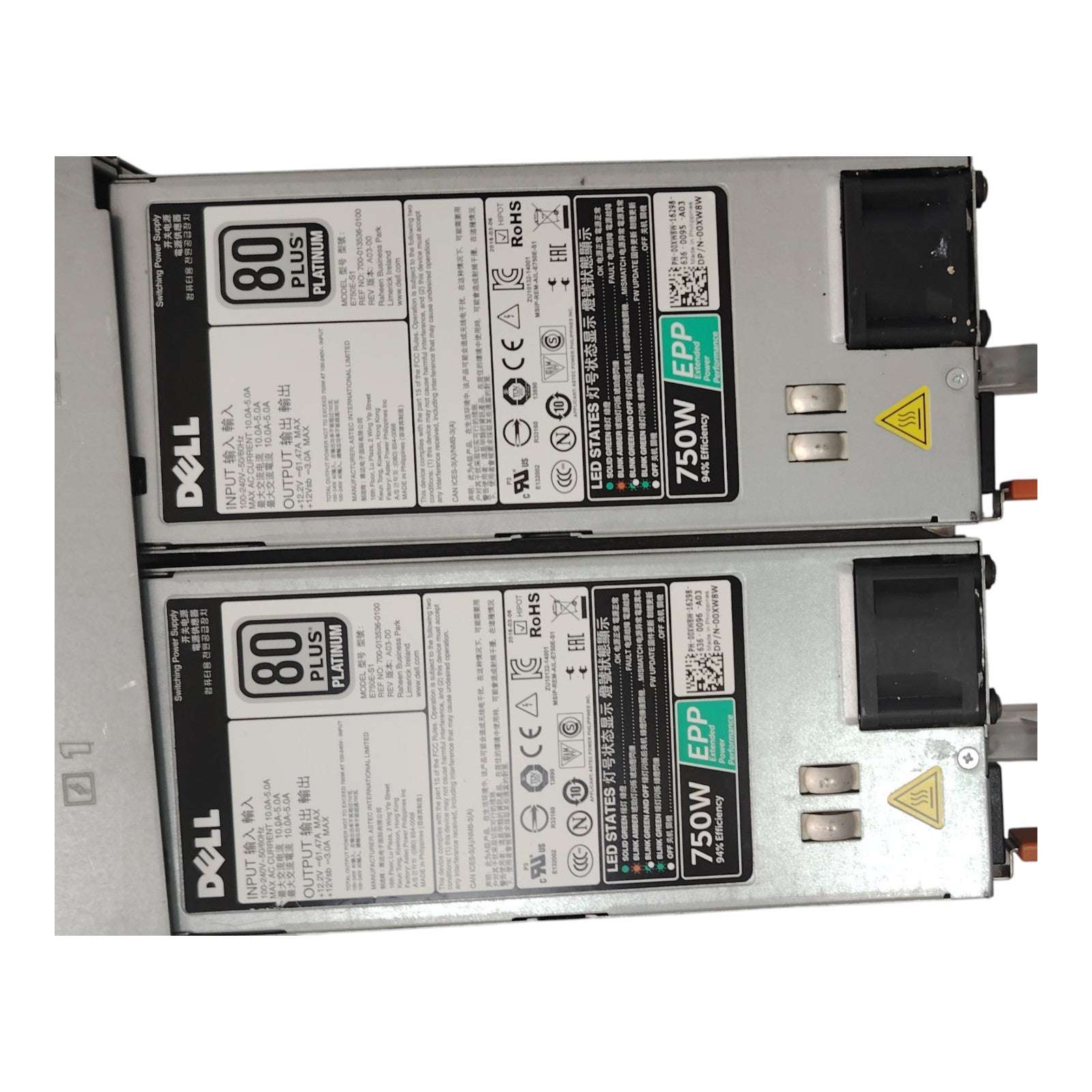

| Power Supply | 2x 750W Platinum Hot-Plug Redundant PSU |

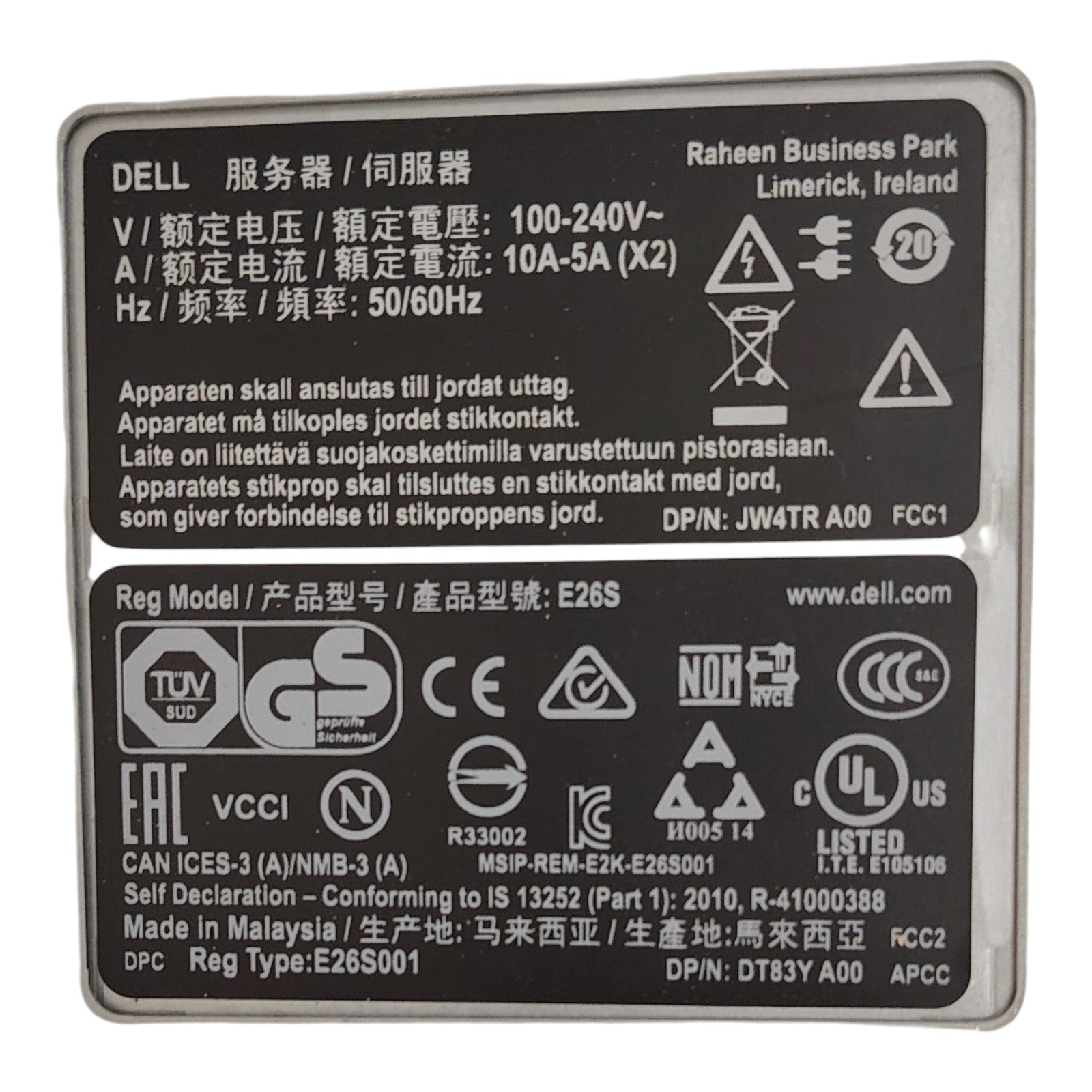

| Voltage / Current | 100–240V AC, 10A–5A |
| Frequency | 50/60Hz |
| Condition | Cleaned and working |
Compatible Products
-
Intel C610 chipset-based motherboards
-
DDR4 ECC Registered memory (16GB / 32GB / 64GB modules)
-
SAS/SATA enterprise SSDs & HDDs (2.5")
-
VMware ESXi, Microsoft Hyper-V, Citrix XenServer, Proxmox VE
-
Windows Server (2012, 2016, 2019, 2022)
-
Linux distros (Ubuntu, RHEL, CentOS, Debian)
-
Dell iDRAC Enterprise remote management tools
Ideal Use Cases
-
Virtualization & hypervisors (VMware, Proxmox, Hyper-V)
-
Cloud computing & private datacenter infrastructure
-
Enterprise applications (ERP, CRM, Oracle, SAP)
-
High-performance database hosting (SQL, MongoDB, etc.)
-
Web hosting & SaaS platforms
-
Development & staging environments
Comparison Angle
Compared to the PowerEdge R620, the R630 offers DDR4 memory support, Xeon E5 v3 CPUs, higher efficiency Platinum PSUs, and increased storage scalability. These upgrades make the R630 an excellent choice for businesses needing faster performance, improved efficiency, and denser compute power.
Cross-Sell / Upsell Suggestions
-
Additional DDR4 ECC Registered memory kits (16GB / 32GB / 64GB)
-
Enterprise-grade SAS/SATA SSDs & HDDs (1TB, 2TB, 4TB options)
-
Dell iDRAC Enterprise remote access licenses
-
Rack rails & cable management kits
-
Spare 750W Platinum redundant PSUs
