Description
Dell PowerEdge R630 1U server with dual Xeon E5-2630 V3, 128GB RAM, RAID & dual 750W PSU. Optimized for virtualization, cloud & enterprise workloads.

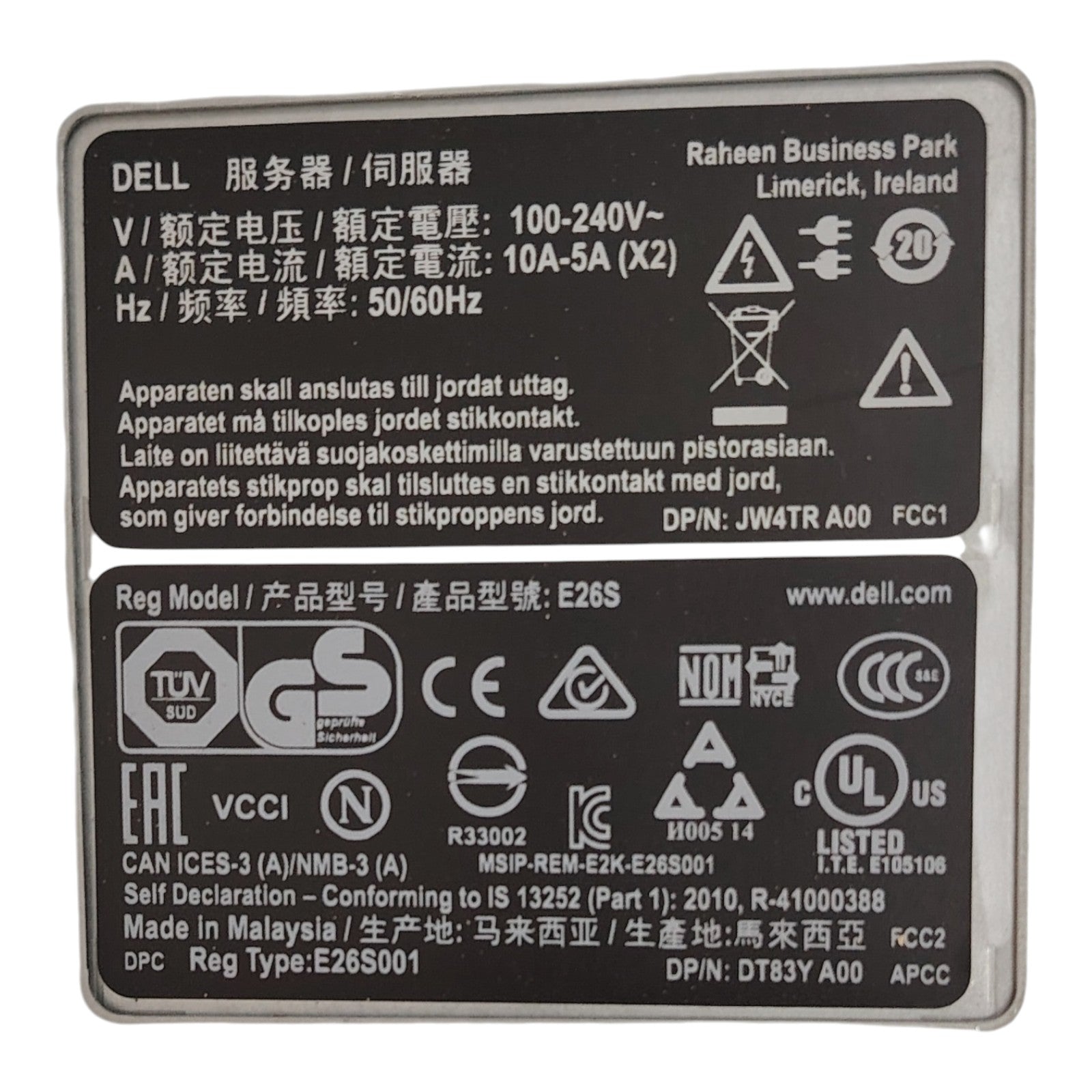

| Attribute | Details |
|---|---|
| Regulatory Model | E26S |
| Regulatory Type | E26S001 |
| Voltage Range | 100–240V AC |
| Current Rating | 10A–5A (x2) |
| Frequency | 50/60Hz |
| Safety Certifications | TÜV SÜD, GS (Geprüfte Sicherheit), UL Listed (E105106), CE, VCCI, EAC, NOM NYCE, FCC |
| Compliance Codes | CAN ICES-3 (A)/NMB-3 (A), MSIP-REM-E2K-E26S001 |
| Standard Conformance | IS 13252 (Part 1): 2010 |
| RoHS / Environmental | RoHS Compliant |
| Manufacturing Location | Made in Malaysia |
| Dell PN (Parts) | JW4TR A00 / DT83Y A00 |
| Manufacturer Address | Raheen Business Park, Limerick, Ireland |
Product Features
-

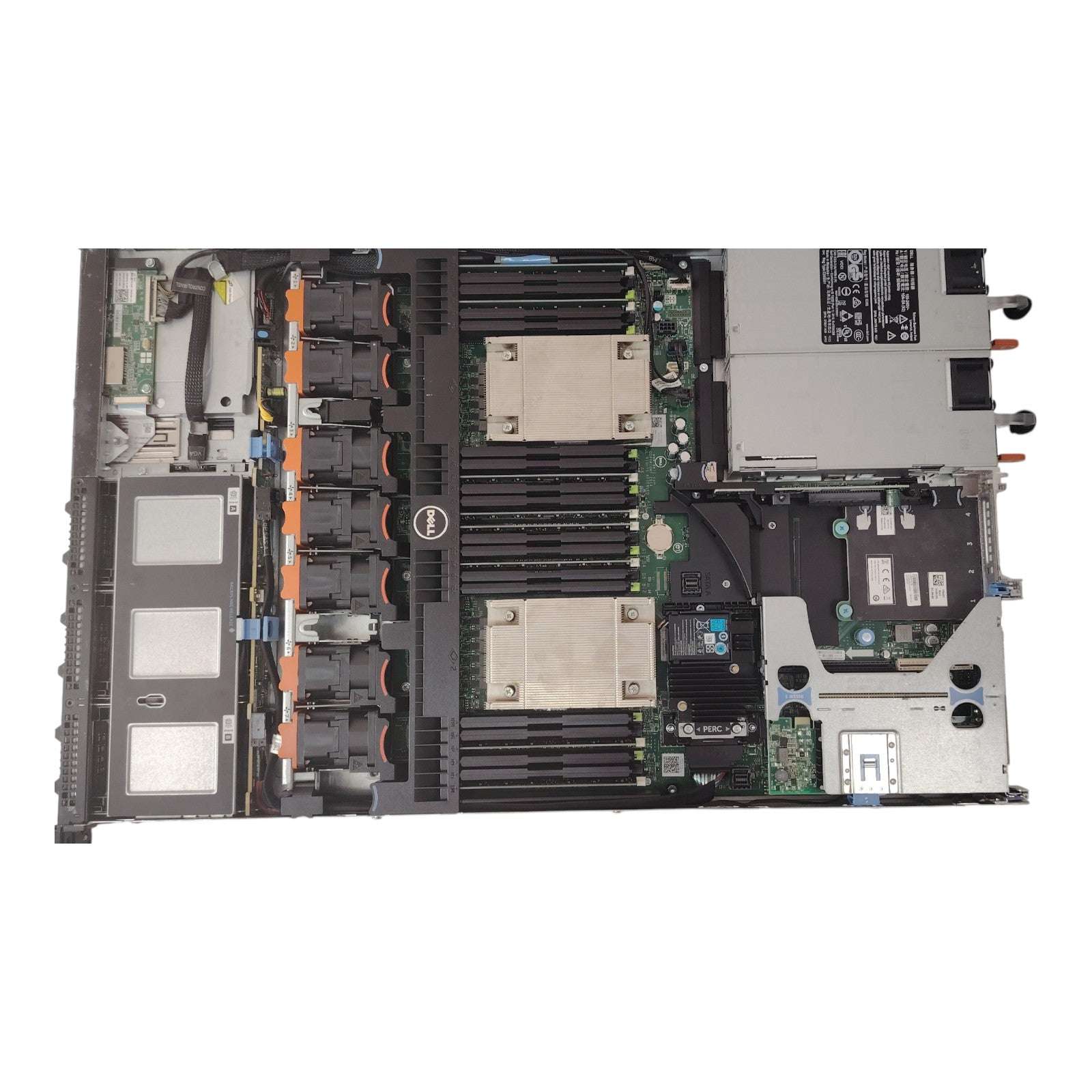

Dual Intel Xeon E5-2630 V3 CPUs (16 cores / 32 threads total)
-
Massive 128GB DDR4 ECC Registered Memory (8x 16GB Samsung DIMMs)
-

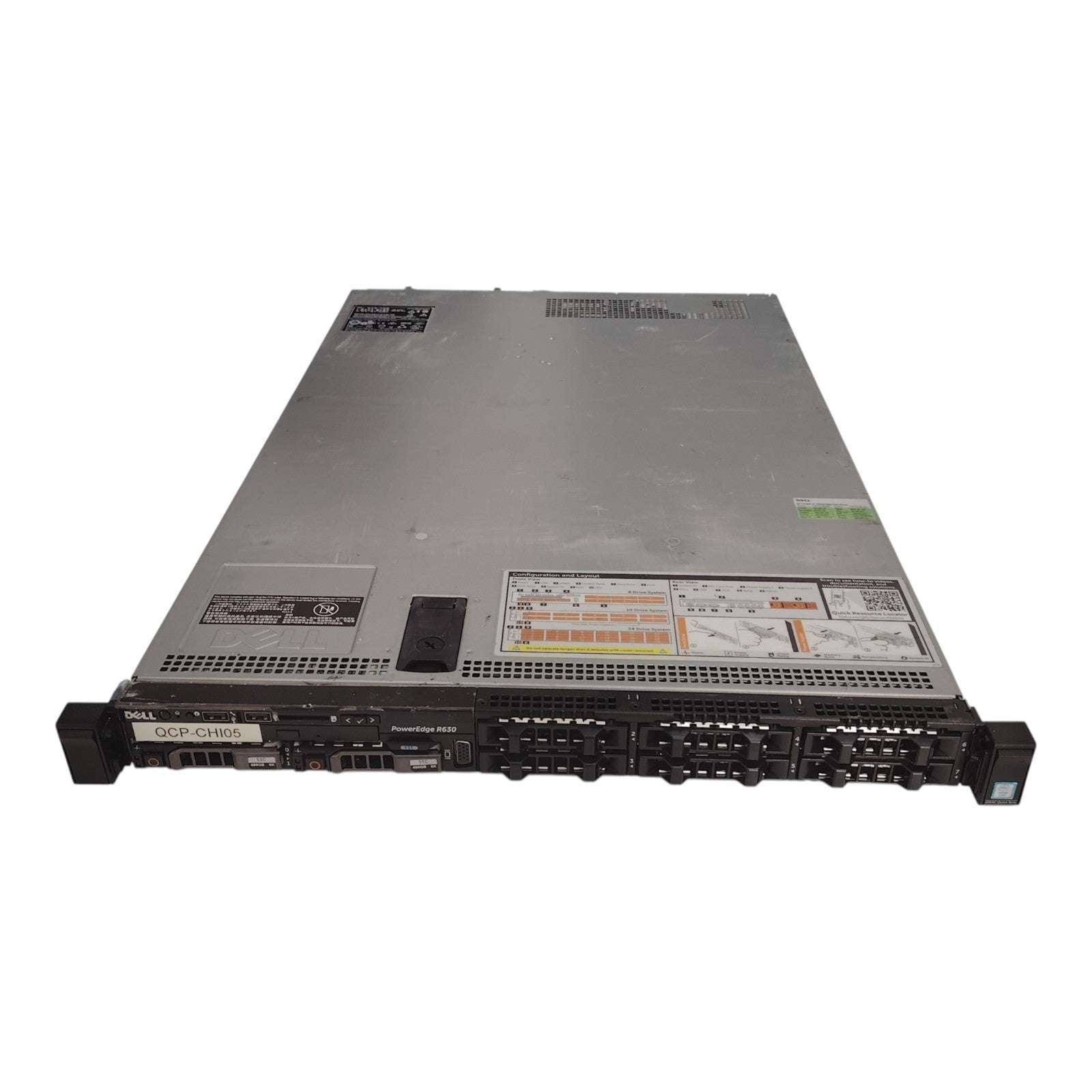

Configurable storage bays (up to 10x 2.5" SAS/SATA SSDs/HDDs)
-
Hardware RAID controller installed for data protection & performance
-

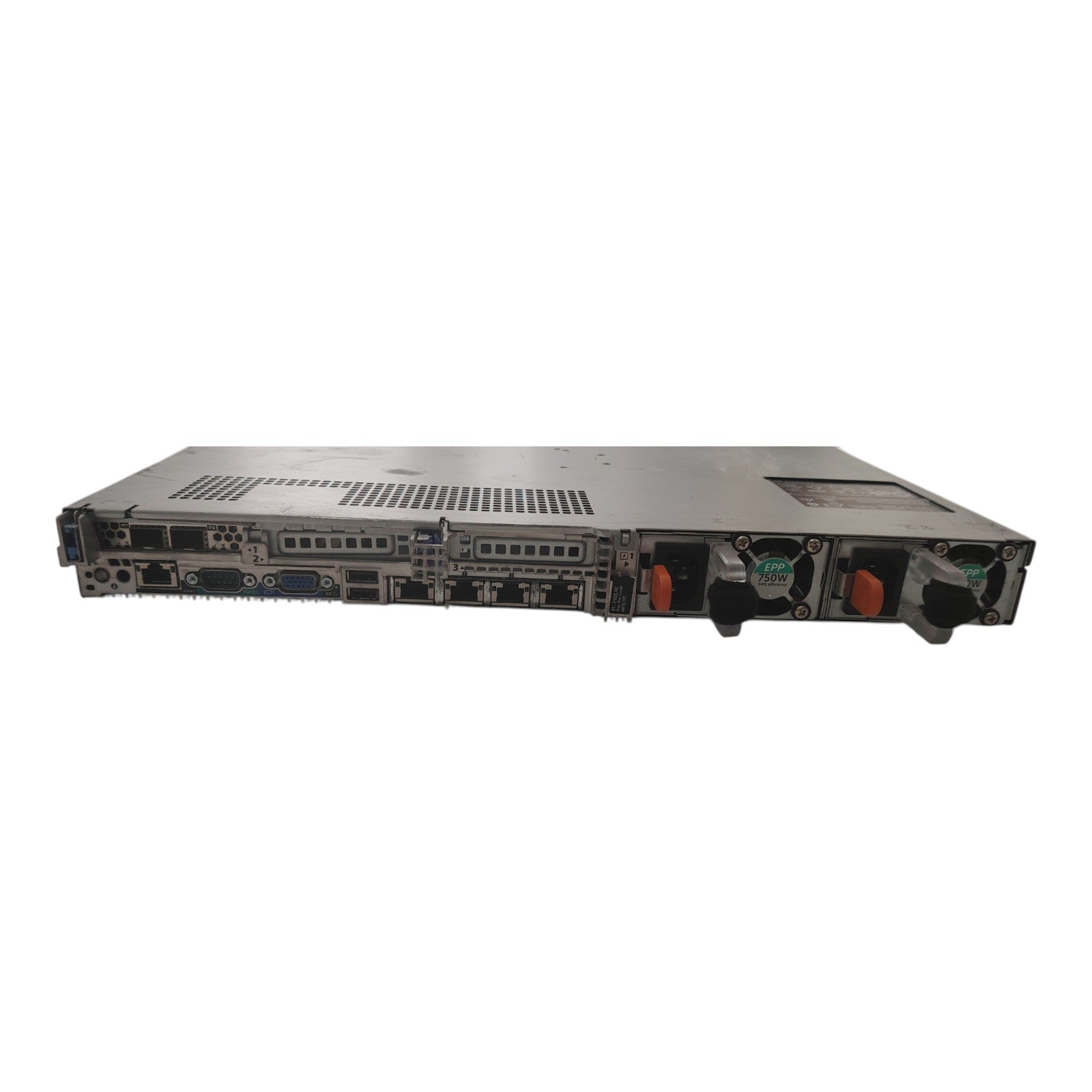

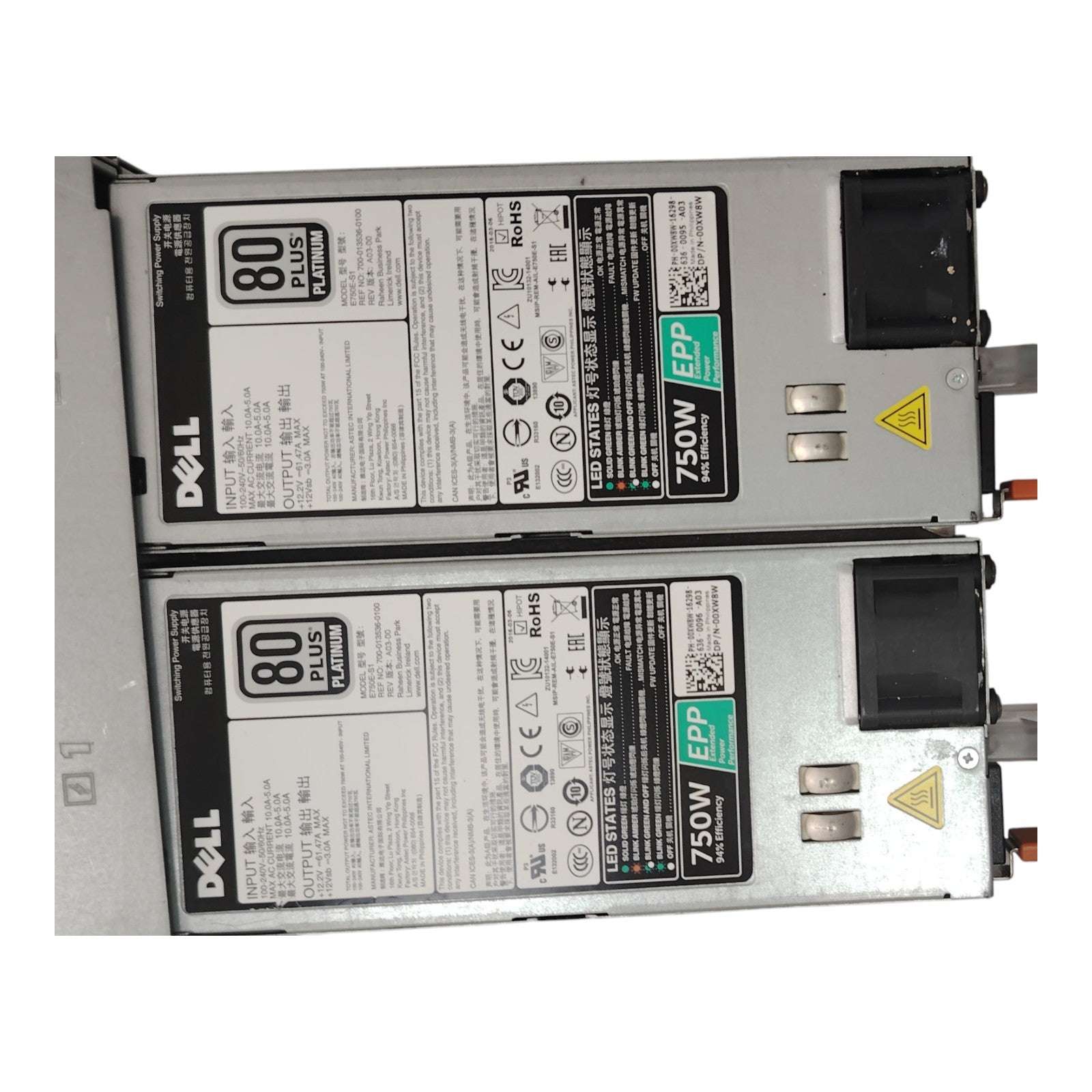

Redundant 750W Platinum PSUs for enterprise-grade uptime
-

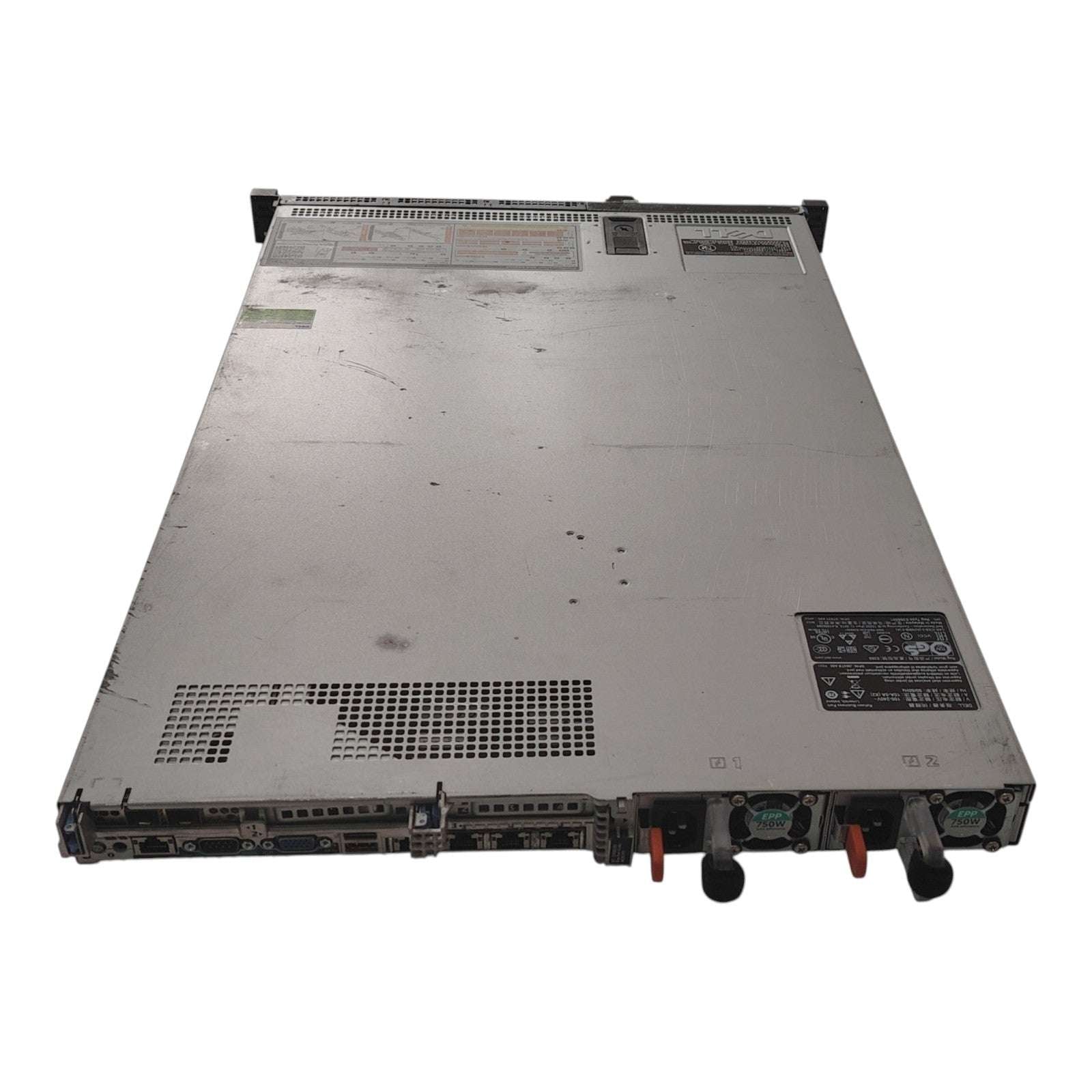

Compact 1U rackmount form factor optimized for datacenters
-
Multiple PCIe slots and NIC for expandability
-
Fully tested, cleaned, and in excellent working condition
General Product Information

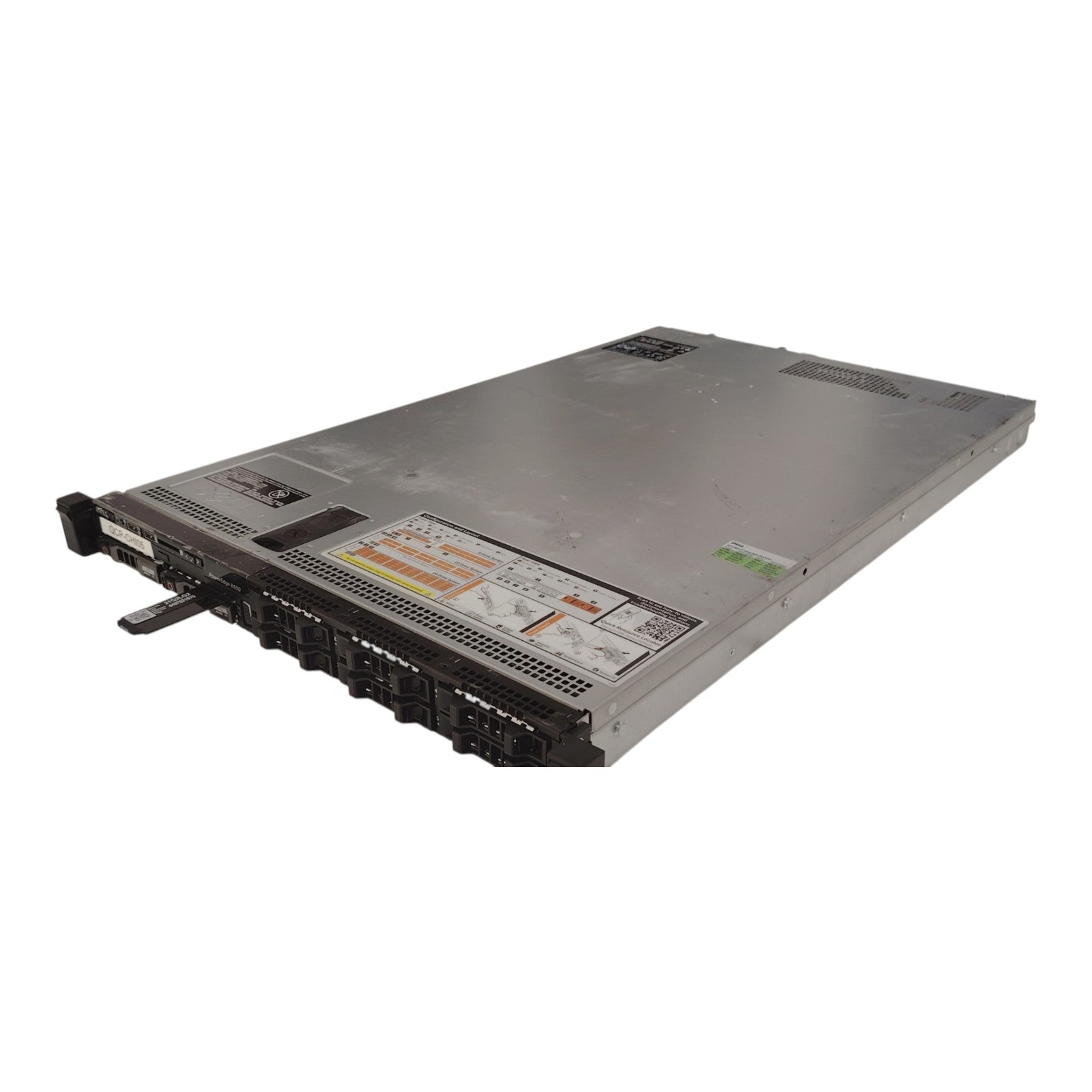

The Dell PowerEdge R630 is a performance-driven 1U rackmount enterprise server designed for environments that demand high density, scalability, and reliability. Powered by two Intel Xeon E5-2630 V3 processors with a combined 16 cores / 32 threads, this system delivers the processing power needed for virtualization, cloud computing, and data-intensive applications.
With 128GB of DDR4 ECC Registered memory (8x 16GB Samsung modules), the R630 ensures stability and responsiveness, even under heavy workloads. The system includes a hardware RAID controller, giving you the flexibility to configure storage with both performance and redundancy in mind. Supporting up to 10x 2.5" SAS or SATA drives, this server can be tailored to meet your storage and performance needs.
Equipped with dual 750W hot-plug Platinum power supplies, the R630 provides exceptional energy efficiency and ensures continuous uptime with failover redundancy. Its 1U form factor makes it an ideal solution for space-conscious datacenters and enterprise deployments.
Whether you’re deploying virtual machines, hosting critical databases, or building cloud infrastructure, the Dell PowerEdge R630 is a proven platform trusted by IT professionals for its balance of performance, density, and reliability.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand / Model | Dell PowerEdge R630 |
| Form Factor | 1U Rack Server |
| Processor | 2x Intel Xeon E5-2630 V3 (8 cores / 16 threads each, 2.40GHz base, 3.20GHz turbo) |
| Total Cores/Threads | 16 cores / 32 threads |
| Cache | 20MB per CPU |
| Socket Type | LGA2011-v3 |
| Memory | 128GB DDR4 ECC Registered (8x 16GB Samsung PC4 modules) |
| Memory Speed | DDR4-2133 / DDR4-2400 (dependent on DIMM/CPU support) |
| Storage Bays | Supports up to 10x 2.5" SAS/SATA SSDs or HDDs (configurable) |
| RAID Controller | Yes – hardware RAID card installed |

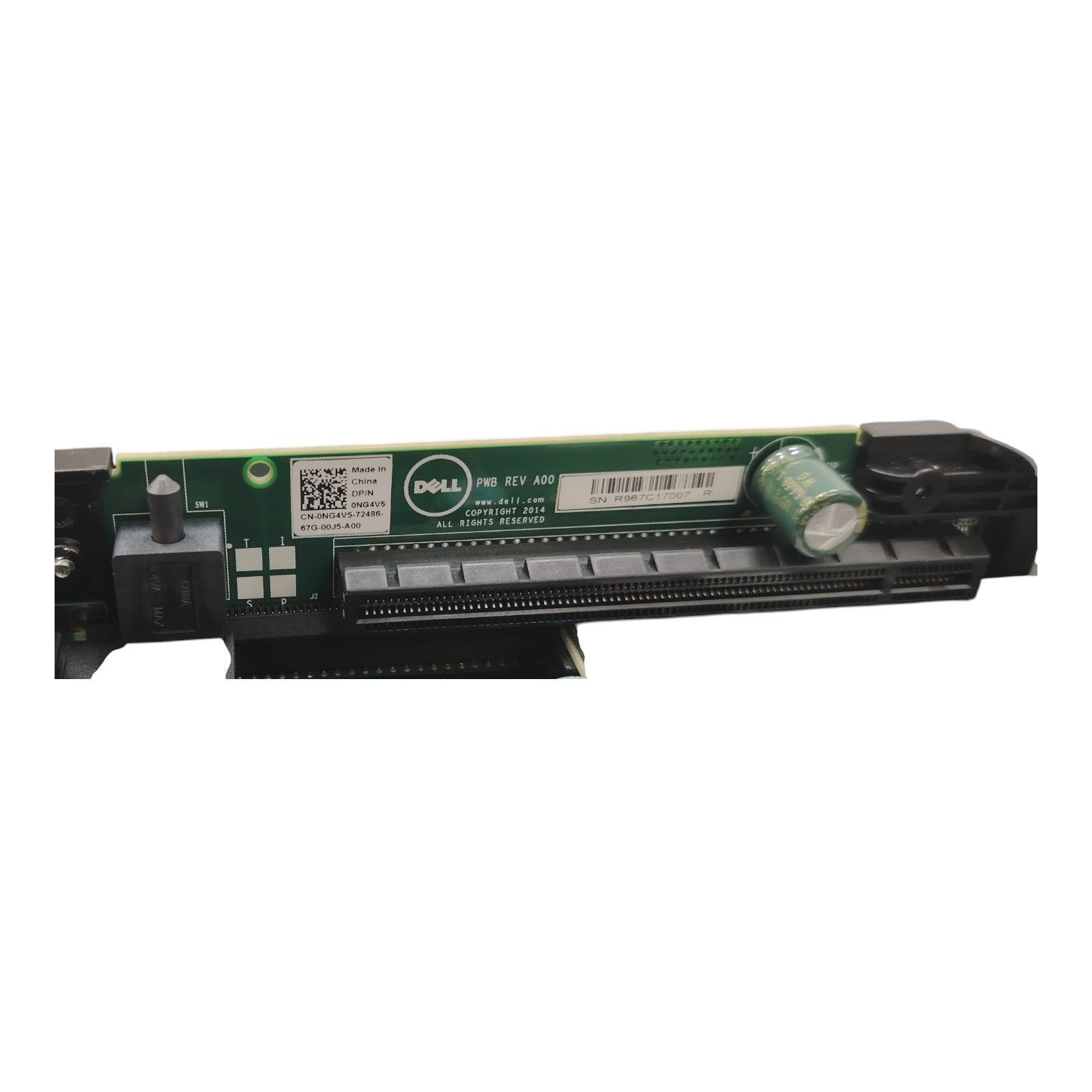

| Expansion Slots | 2x PCIe |
| Networking | Integrated Network Interface Card (NIC) |
| Power Supply | 2x 750W Hot-Plug Platinum Redundant PSU |
| Voltage / Current | 100–240V AC, 10A–5A |
| Frequency | 50/60Hz |
| Certifications | TÜV, GS, UL, CE, VCCI, FCC, EAC, NOM, RoHS |
| Manufacturing Location | Malaysia |
| Condition | Cleaned, working |
Compatible Products
-
Intel C610 chipset-based motherboards
-
DDR4 ECC Registered DIMMs (16GB, 32GB, 64GB)
-
SAS/SATA SSDs and HDDs (Dell-certified enterprise drives recommended)
-
VMware ESXi, Microsoft Hyper-V, Citrix XenServer, Proxmox VE
-
Microsoft Windows Server (2012, 2016, 2019, 2022)
-
Linux (Ubuntu, RHEL, CentOS, Debian)
-
Dell iDRAC remote management modules
Ideal Use Cases
-
Virtualization & Hypervisors (VMware, Proxmox, Hyper-V)
-
Cloud computing & datacenter deployments
-
Enterprise-level storage & ERP systems
-
Web hosting & SaaS platforms
-
Database hosting (SQL, Oracle, SAP)
-
Development, staging & testing environments
Comparison Angle
Compared to the PowerEdge R620, the R630 offers support for DDR4 memory, newer Xeon E5 v3 processors, higher-density storage (up to 10x 2.5"), and improved energy efficiency with Platinum-rated PSUs. This makes it a stronger choice for organizations needing better performance in a compact 1U form factor.
Cross-Sell / Upsell Suggestions
-
Additional DDR4 ECC Registered RAM kits
-
Dell-certified SAS/SATA enterprise SSDs & HDDs
-
Dell iDRAC Enterprise license for remote management
-
Rack rails and cable management arms
-
Spare 750W redundant PSUs
