Description
Dell PowerEdge R630 with dual Xeon E5-2630 V3, 192GB DDR4 ECC RAM, 2.88TB SSD storage & dual 1100W PSU. Optimized for virtualization & enterprise workloads.
Product Features
-
Dual Intel Xeon E5-2630 V3 CPUs (16 cores / 32 threads total)
-
192GB DDR4 ECC Registered Memory (12x Samsung 16GB DIMMs)
-
High-speed enterprise storage: 3x 960GB SSDs (total 2.88TB)
-
Hardware RAID controller installed for redundancy & performance
-
Redundant 1100W Platinum hot-plug power supplies for maximum uptime
-
1U rackmount design – compact, scalable, and datacenter-ready
-
Expandable via PCIe slots and NIC for custom networking/storage upgrades
-
Fully cleaned, tested, and in excellent working condition
General Product Information
The Dell PowerEdge R630 is a high-performance 1U rackmount server designed for datacenters and enterprises requiring dense compute power in a compact form. With two Intel Xeon E5-2630 V3 processors, this configuration delivers 16 cores and 32 threads of reliable processing power, optimized for virtualization, private cloud, ERP systems, and enterprise applications.
Packed with 192GB of DDR4 ECC Registered memory (12x 16GB Samsung modules), the R630 ensures fast response times and stability for resource-heavy workloads. Its 2.88TB of enterprise SSD storage (3x Dell 960GB SSDs) provides the perfect balance of speed and reliability, with an included hardware RAID controller to maximize performance and data protection.
With dual 1100W Platinum hot-plug redundant power supplies, this server is engineered for continuous uptime and energy efficiency. The 1U rackmount form factor makes it ideal for space-constrained environments, while still offering expansion flexibility with PCIe slots and integrated networking.
Whether for cloud computing, enterprise virtualization, high-speed databases, or large-scale IT environments, the Dell PowerEdge R630 is a trusted enterprise solution built to deliver performance, efficiency, and reliability.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand / Model | Dell PowerEdge R630 |
| Form Factor | 1U Rack Server |
| Processor | 2x Intel Xeon E5-2630 V3 (8 cores / 16 threads each, 2.40GHz base, 3.20GHz turbo, 20MB cache) |
| Total Cores/Threads | 16 cores / 32 threads |
| Socket Type | LGA2011-v3 |
| Memory | 192GB DDR4 ECC Registered (12x 16GB Samsung 2666V DIMMs) |
| Max Memory Capacity | Up to 768GB DDR4 |
| Storage | 3x Dell 0503M7 960GB SSDs (total 2.88TB) |
| Storage Bays Supported | Up to 10x 2.5" SAS/SATA SSDs or HDDs |
| RAID Support | Yes – hardware RAID card installed |
| Expansion Slots | 2x PCIe |
| Networking | Integrated Network Interface Card (NIC) |
| Power Supply | 2x 1100W Platinum Hot-Plug Redundant PSU |

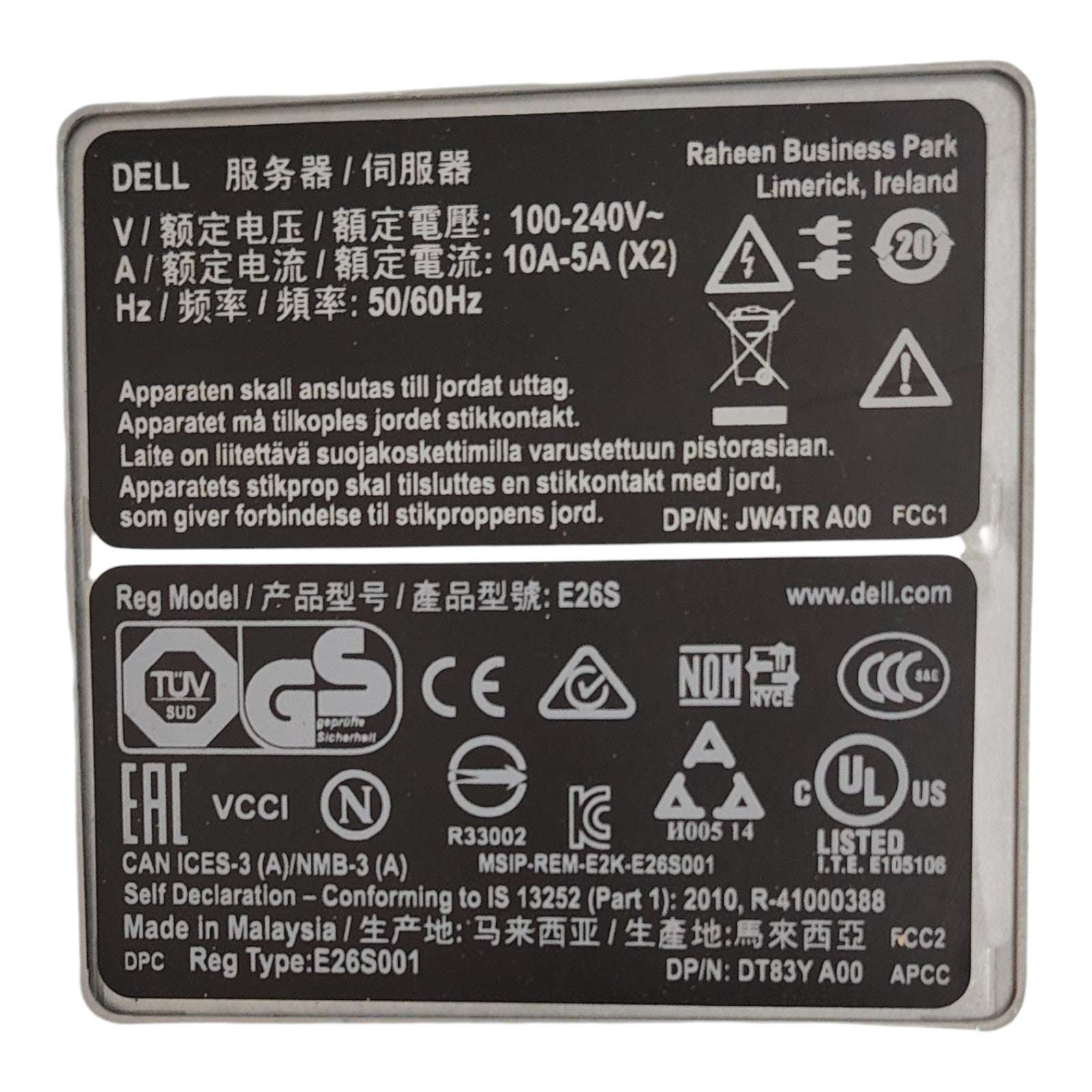

| Voltage / Current | 100–240V AC, 10A–5A |
| Frequency | 50/60Hz |
| Certifications | TÜV, GS, UL, CE, VCCI, FCC, EAC, NOM, RoHS |
| Condition | Cleaned and working |
Compatible Products
-
Intel C610 chipset-based motherboards
-
DDR4 ECC Registered memory kits (16GB, 32GB, 64GB modules)
-
Enterprise SAS/SATA SSDs & HDDs (2.5")
-
VMware ESXi, Microsoft Hyper-V, Citrix XenServer, Proxmox VE
-
Microsoft Windows Server (2012, 2016, 2019, 2022)
-
Linux (Ubuntu, RHEL, CentOS, Debian)
-
Dell iDRAC Enterprise remote management solutions
Ideal Use Cases
-
Virtualization & Hypervisor hosting
-
Cloud computing infrastructure
-
High-performance database servers (SQL, Oracle, SAP)
-
Enterprise applications (ERP, CRM, BI platforms)
-
SaaS hosting & web platforms
-
Development, staging & testing environments
Comparison Angle
Compared to the PowerEdge R620, the R630 delivers support for DDR4 memory, Intel Xeon E5 v3 processors, higher storage density (up to 10x 2.5”), and energy-efficient Platinum-rated power supplies. This makes it more powerful, scalable, and efficient for modern datacenter workloads.
Cross-Sell / Upsell Suggestions
-
Additional DDR4 ECC Registered memory kits (32GB / 64GB)
-
Enterprise-grade SSDs & SAS drives (1TB / 2TB / 4TB options)
-
Dell iDRAC Enterprise remote management licenses
-
Rack rails & cable management kits
-
Spare 1100W redundant Platinum PSUs
