Description
Dell PowerEdge M1000e with 3× M620 blades, 2× Xeon E5-2697 v2 CPUs, 192GB RAM, redundant PSUs & advanced networking. Built for enterprise & virtualization.
| specifications | Details |
|---|---|
| Model | Dell PowerEdge M1000e with M620 Blades |
| Form Factor | 10U Rackmount Blade Enclosure |
| Blades Included | 3 × Dell PowerEdge M620 |
| CPU Configuration | 2 × Intel Xeon E5-2697 v2 (12 cores each, 2.7GHz) per blade |
| Total CPU Cores | 72 cores across 3 blades |
| Memory Installed | 12 × 16GB DDR3 ECC Registered DIMMs (192GB total) |
| Storage | Not Installed (HDD/SSD N/A) |
| Expansion | 1 × Dual-Port 10GbE Mezzanine Adapter 1 × Broadcom 57810S-K Dual-Port 10GbE Adapter 1 × Dual-Slot SD/Media Card Reader |
| Management Modules | 2 × Chassis Management Controllers (CMC) |
| I/O Modules | 1 × iKVM/Analog KVM Switch 4 × 10/40GbE Blade Switch Modules (8× SFP each) |
| Power Supply Units | 6 × 2700W Redundant PSUs |
| Cooling | High-efficiency redundant cooling integrated |
Product Features
-

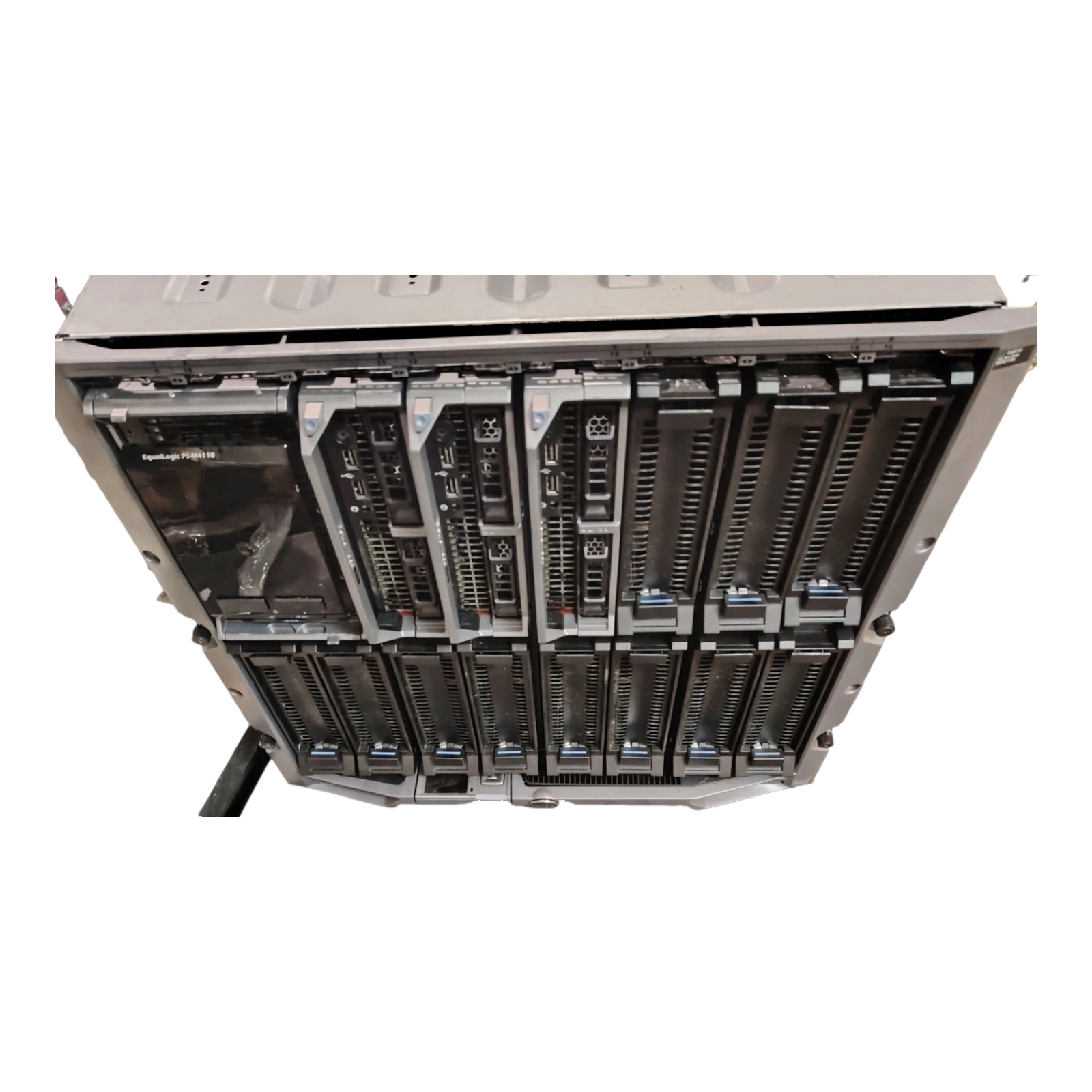

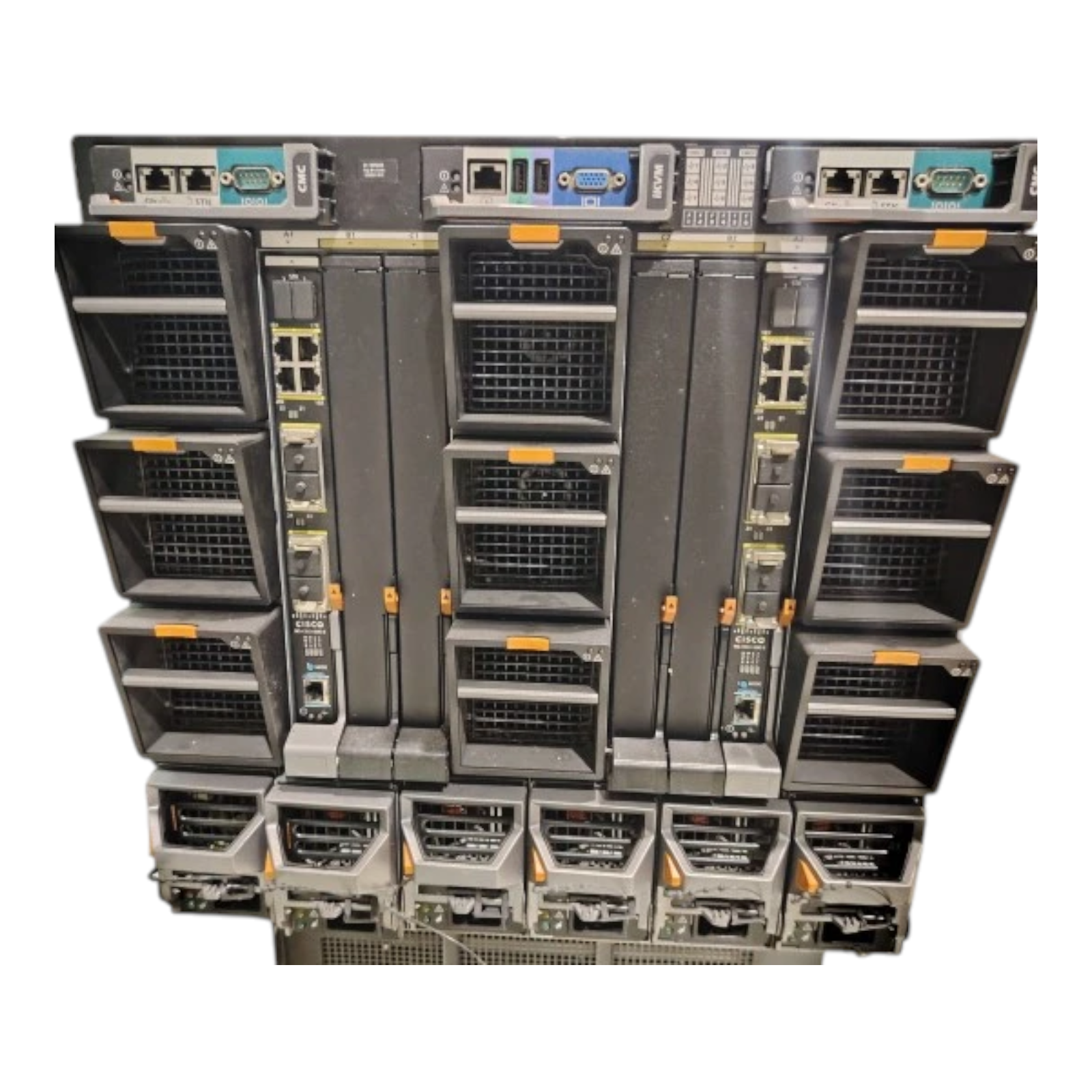

Enterprise-class Dell M1000e blade enclosure with 3× M620 blades pre-installed.
-
Each blade powered by dual Intel Xeon E5-2697 v2 CPUs (12 cores each, 24 cores per blade).
-
192GB DDR3 ECC Registered memory installed (12× 16GB DIMMs).
-
High-speed connectivity with dual-port 10GbE mezzanine and Broadcom 57810S-K dual-port adapter.
-
Redundant 6× 2700W PSUs and advanced cooling for maximum uptime.
-

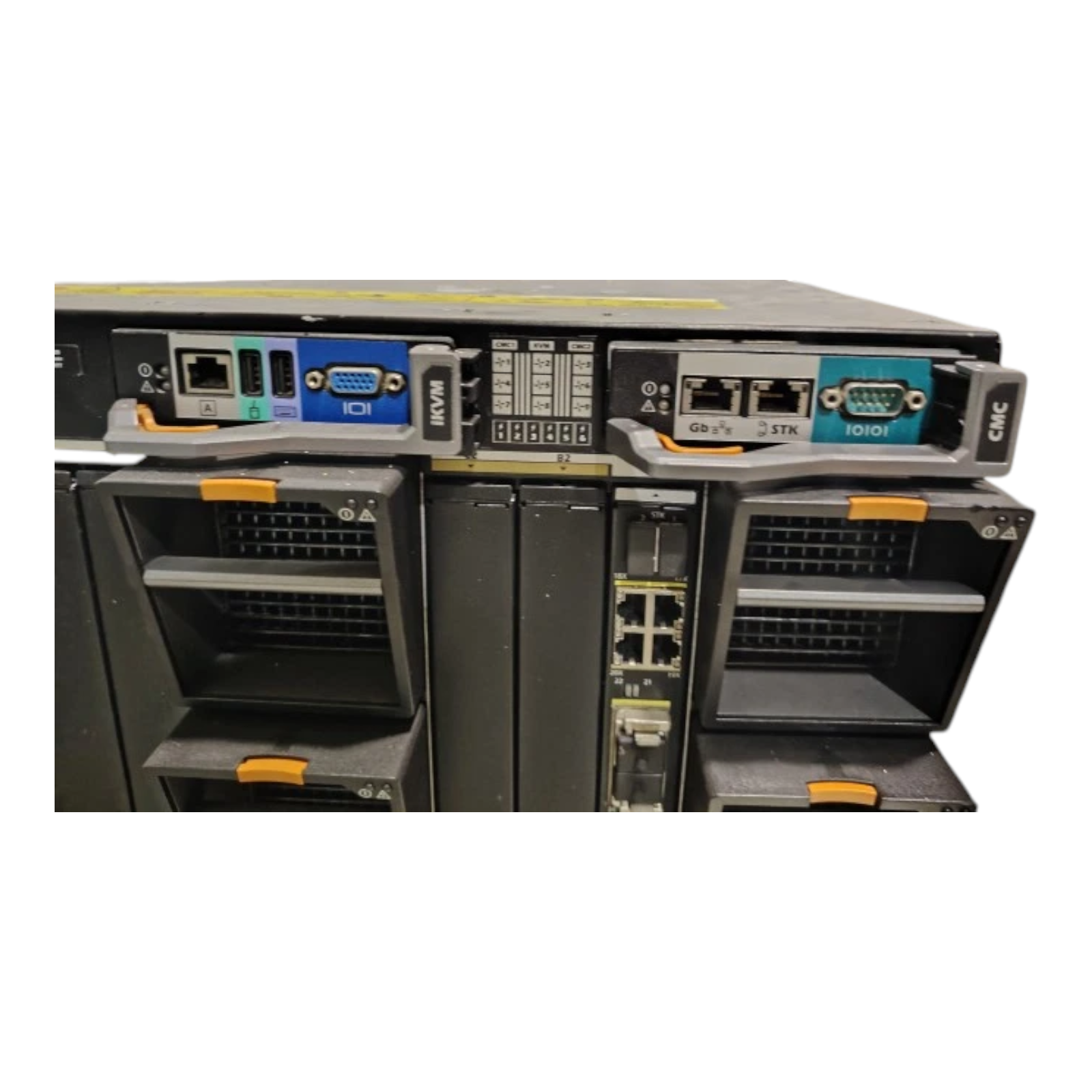

Integrated CMC management controllers and KVM/iKVM modules for easy administration.
-
Scalable & modular design, ideal for enterprise IT environments and virtualization.
General Product Information
The Dell PowerEdge M1000e Blade Server with M620 blades is engineered for enterprises that demand scalability, performance, and efficiency in their IT infrastructure. This configuration includes 3× Dell PowerEdge M620 blades, each equipped with dual Intel Xeon E5-2697 v2 processors (12 cores each, 24 cores per blade), providing a total of 72 physical cores for massive compute power.
With 192GB DDR3 ECC Registered RAM pre-installed, this system is optimized for virtualization, database hosting, and high-performance computing. Expansion capabilities include dual-port 10GbE adapters and a Broadcom 57810S-K dual-port card, ensuring fast and reliable network throughput for demanding workloads.
The Dell M1000e chassis features redundant 2700W power supplies, integrated cooling, advanced chassis management controllers (CMC), KVM/iKVM access, and multiple 10/40GbE blade switch modules, delivering the reliability and uptime enterprises require.
Ideal for large-scale virtualization, private cloud, or HPC clusters, the Dell PowerEdge M1000e is a proven solution for businesses that need modular, efficient, and expandable compute infrastructure.
Technical Specifications Table
| Category | Details |
|---|---|
| Brand | Dell |
| Model | PowerEdge M1000e with M620 Blades |
| Form Factor | 10U Rackmount Blade Enclosure |
| Blades Included | 3 × Dell PowerEdge M620 |
| CPUs per Blade | 2 × Intel Xeon E5-2697 v2 (12 cores, 24 threads, 2.7GHz) |
| Total CPU Cores | 72 cores / 144 threads across all blades |
| Memory | 192GB DDR3 ECC Registered (12 × 16GB DIMMs) |
| Storage | Not installed (supports SAS/SATA/SSD options with trays) |
| Expansion | QLogic & Broadcom Dual-Port 10GbE cards, internal dual-slot SD module |
| Networking | 4 × 10/40GbE Blade Switch Modules with 8× SFP each |
| Management | 2 × Chassis Management Controller (CMC) modules, iKVM/Analog KVM |
| Power Supply | 6 × 2700W Redundant PSUs |
| Cooling | Integrated redundant high-efficiency cooling |
| OS Compatibility | Windows Server, VMware ESXi, Linux (RHEL, Ubuntu, CentOS), Hyper-V |
Compatible Products
-
Dell PowerEdge blade accessories (trays, rails, caddies).
-
VMware vSphere / Microsoft Hyper-V / Citrix XenServer.
-
Enterprise Linux distributions (RHEL, Ubuntu, CentOS).
-
Windows Server editions (2012R2, 2016, 2019).
-
Compatible with Dell EMC storage arrays and FC SANs.
Ideal Use Cases
-
Virtualization & cloud infrastructure.
-
Enterprise IT data centers.
-
High-performance computing (HPC).
-
Database hosting and analytics workloads.
-
Private cloud and lab testing environments.
Comparison Angle
Compared to standalone rack servers, the Dell M1000e Blade Enclosure offers higher density, scalability, and centralized management. Each M620 blade adds compute power without increasing physical footprint, making it far more efficient for data centers and large enterprises than previous-generation rackmounts.
Cross-Sell / Upsell Suggestions
-
Dell enterprise SAS/SSD drives for custom storage.
-
Additional Dell M620 or M630 blades for scaling compute.
-
Dell network adapters for advanced connectivity.
-
Dell EMC storage arrays for SAN/NAS integration.
-
Rack rails and mounting kits for deployment.
