Description

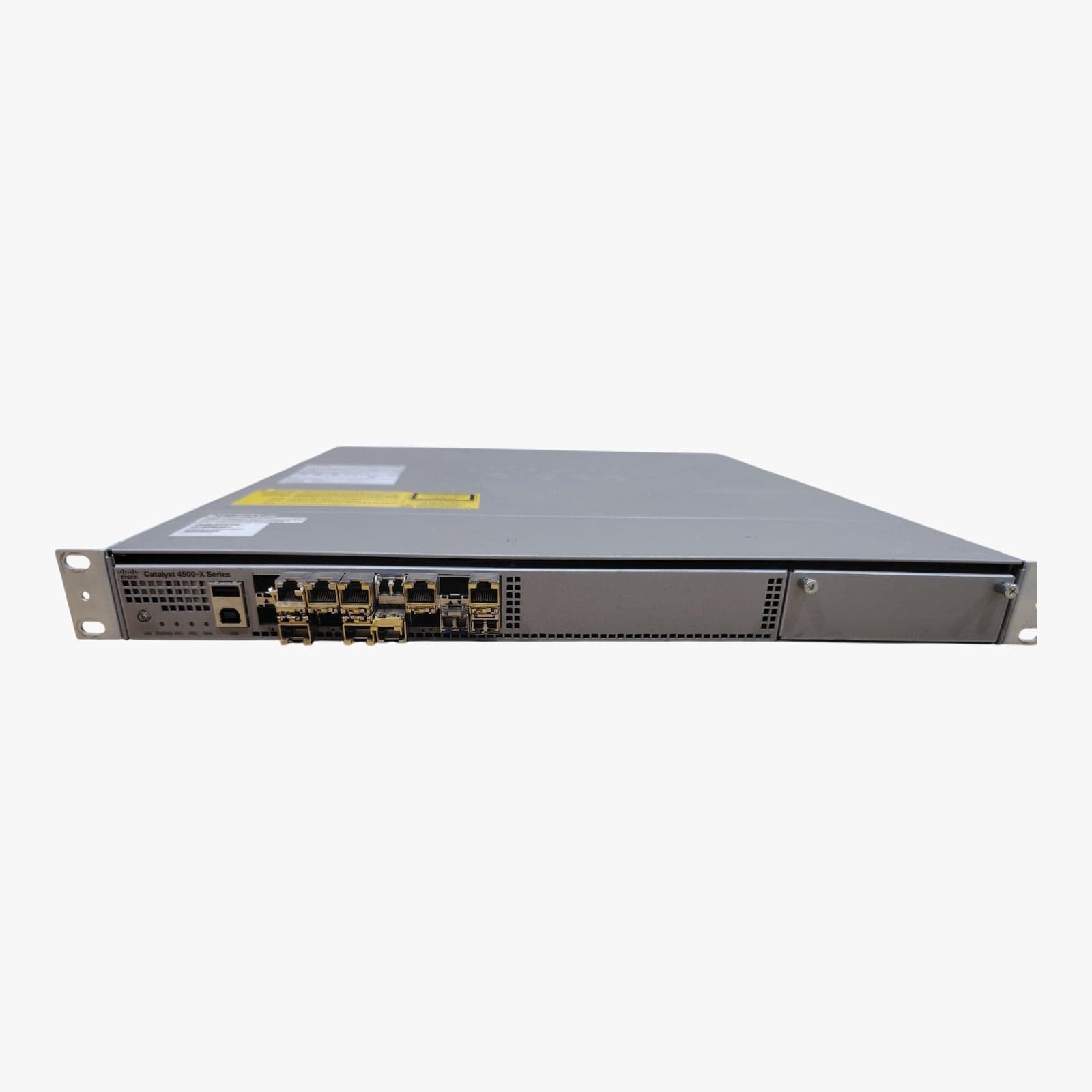

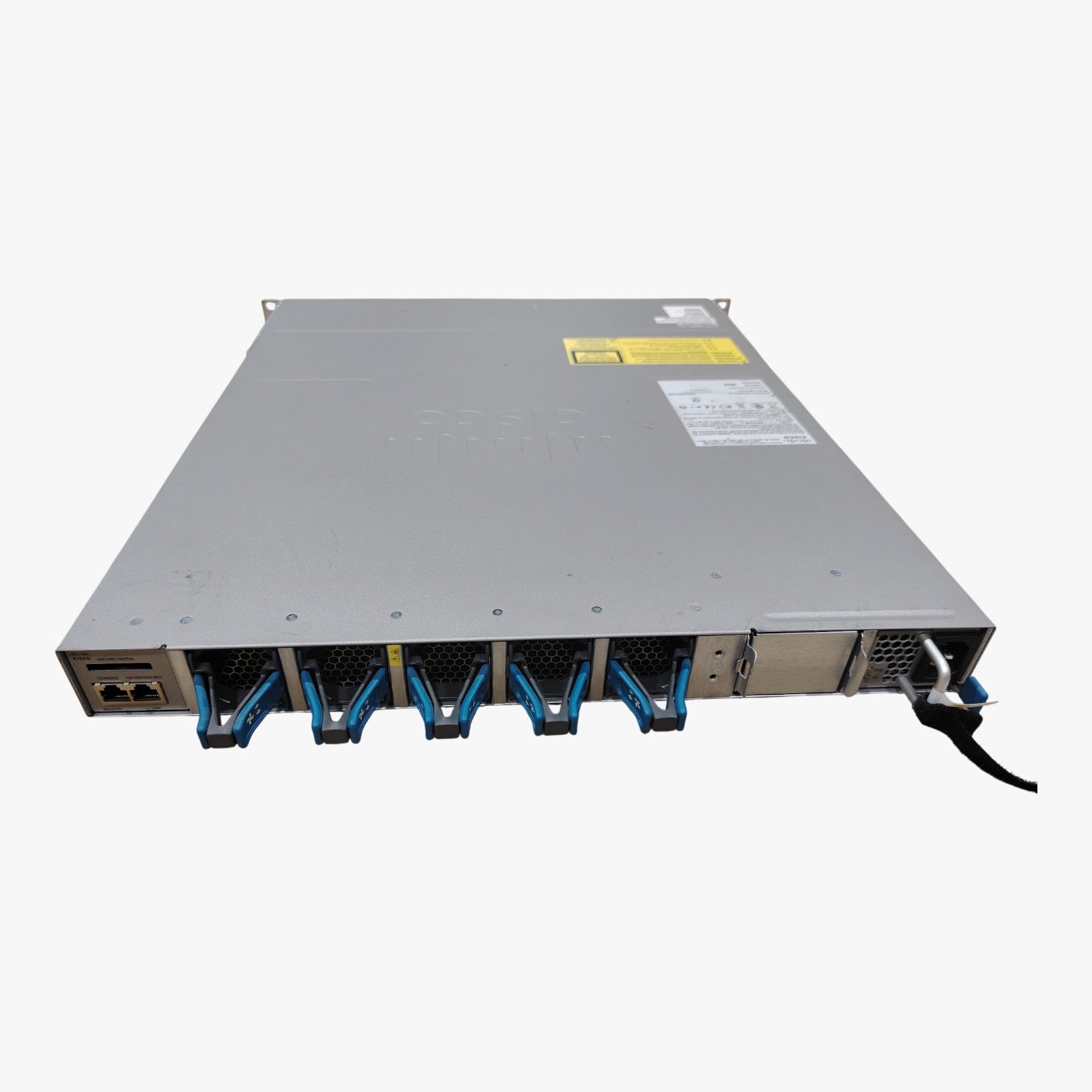

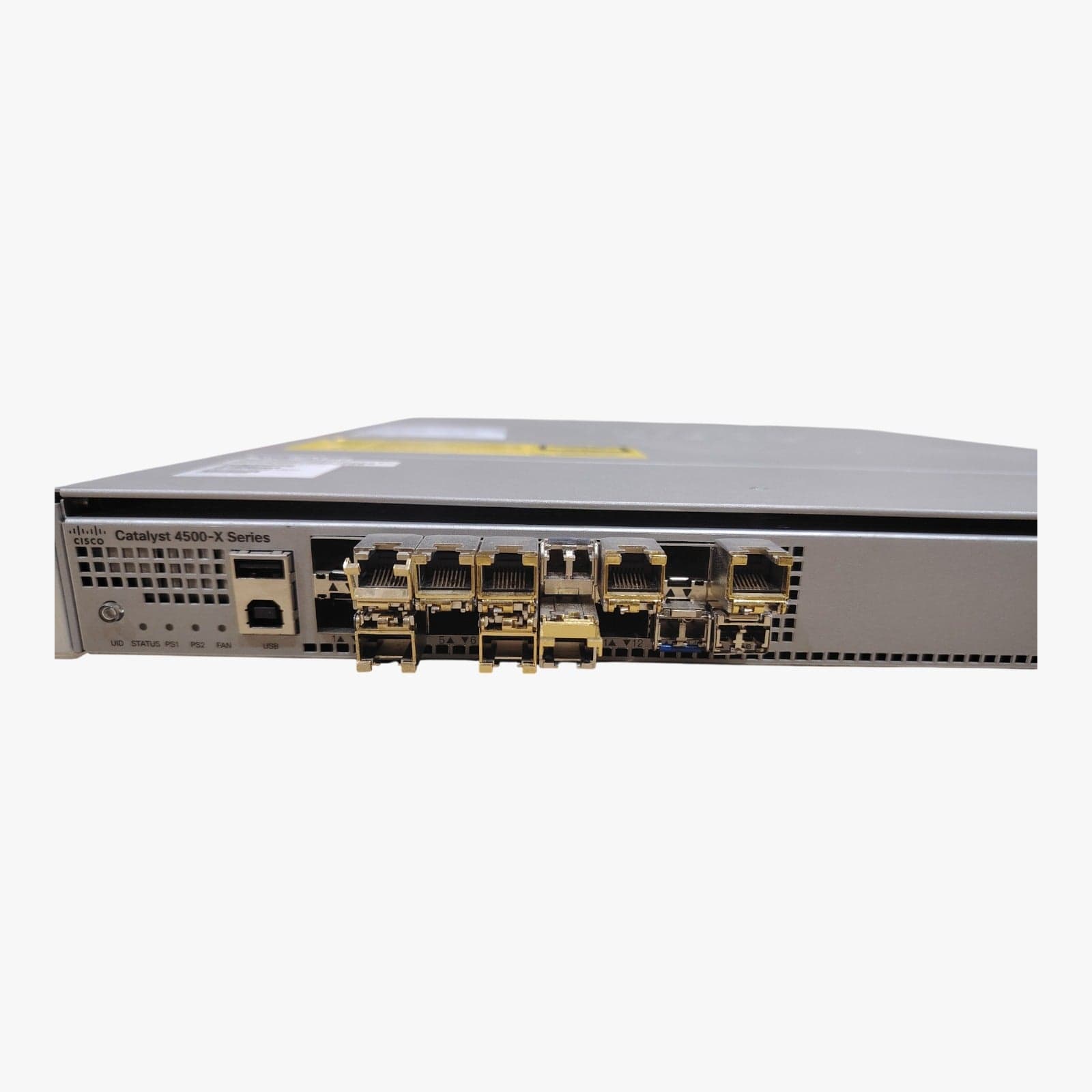

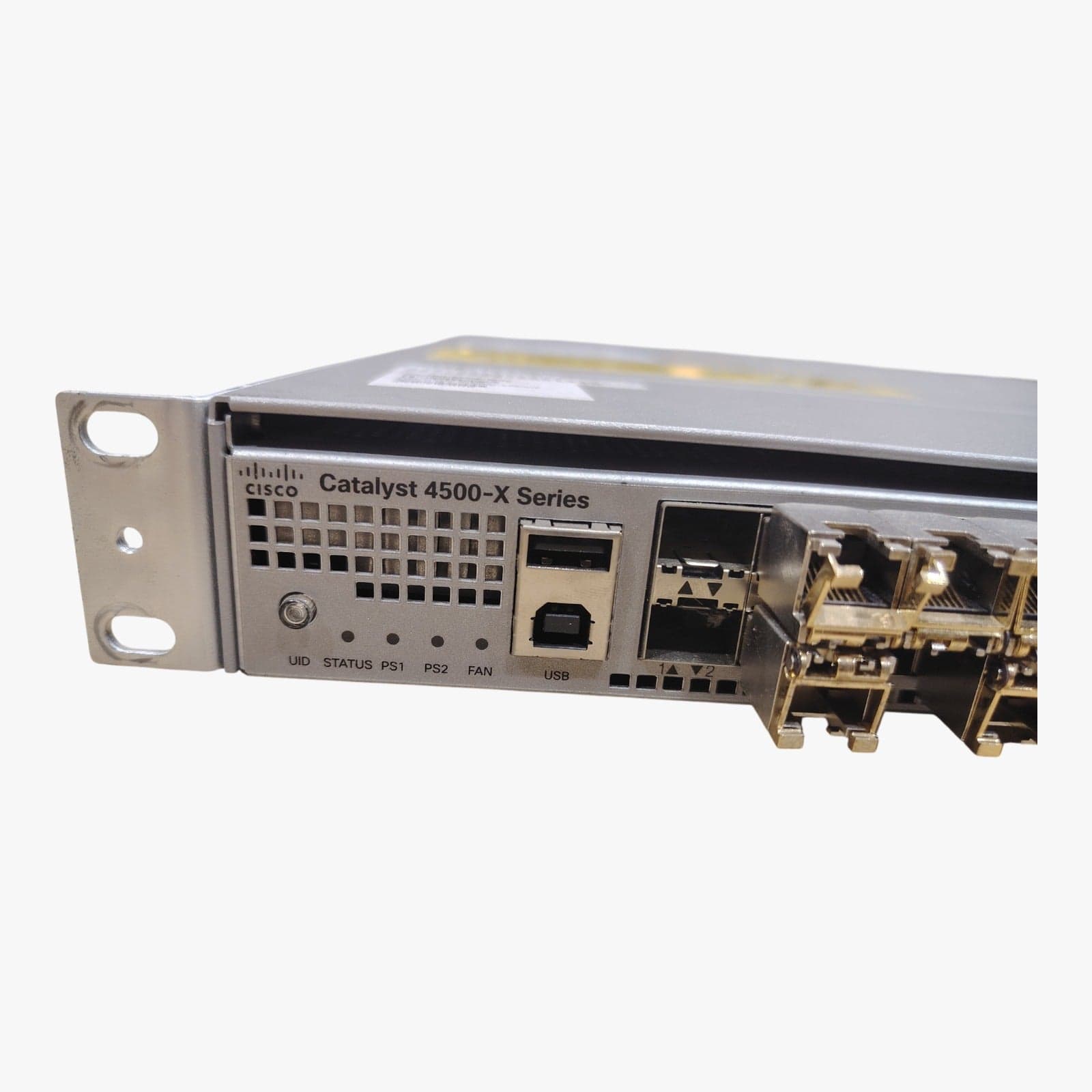

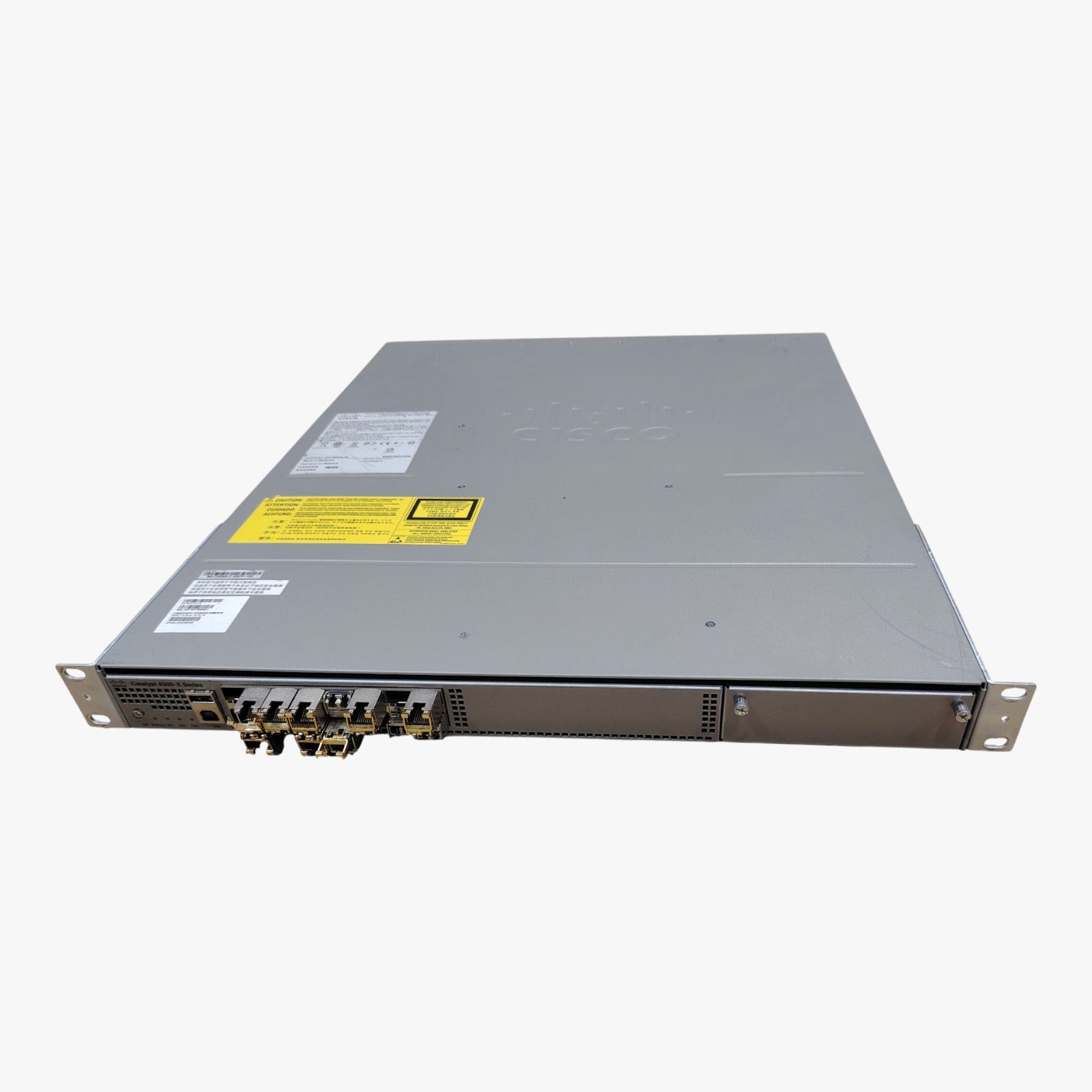

High-performance Cisco WS-C4500X-F-16SFP+ 16-Port 10GbE Switch with redundant PSU. Ideal for enterprise networking, data centers & high-speed connectivity.
| Specification | Details |
|---|---|
| Brand | Cisco Systems, Inc. |
| Model | WS-C4500X-F-16SFP+ |
| Product Name | Catalyst 4500-X Series Managed Switch |
| Form Factor | Fixed 1U Rackmount Switch |
| Ports | 16 × 10 Gigabit Ethernet SFP+ slots |
| Power Supply | 1 × Hot-swappable PSU included |
| Input Voltage | 100–240V AC, 50/60Hz |

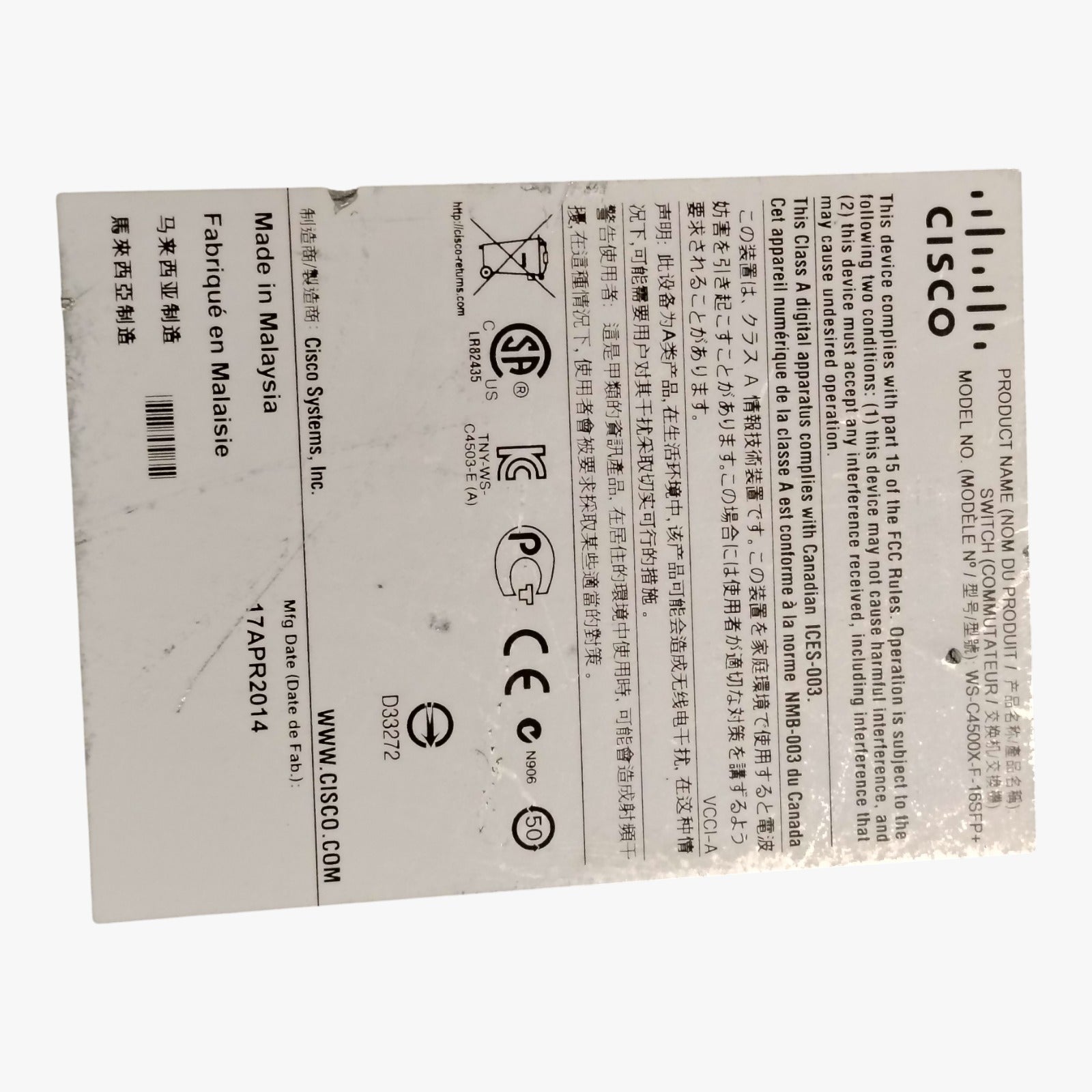

| Manufacturing Location | Made in Malaysia |
| Manufacture Date | 17-Apr-2014 |
| Compliance | FCC Part 15, ICES-003, EN55022 Class A, IEC 60950-1 |
Product Features:
-
16 × 10G SFP+ ports deliver ultra-fast connectivity for enterprise environments.
-
Advanced security and Layer 3 switching ensure safe, efficient data routing.
-
Hot-swappable redundant PSU enhances uptime and service continuity.
-
Energy-efficient design meets strict environmental and safety standards.
-
Stackable architecture enables scalability for growing network infrastructures.
-
Ideal for data centers, enterprise cores, and high-speed aggregation layers.
General Product Information:
The Cisco WS-C4500X-F-16SFP+ is a high-performance 1U managed switch from Cisco’s Catalyst 4500-X Series, designed to meet the demanding needs of enterprise and data center networks. Featuring 16 × 10 Gigabit SFP+ ports, it provides exceptional throughput, reliability, and scalability in a compact form factor.
Built for continuous operation, the WS-C4500X-F-16SFP+ includes a hot-swappable power supply unit (PSU) for redundancy and maximum uptime. Its advanced Layer 3 switching capabilities, security controls, and energy-efficient design make it ideal for critical network environments where uptime and performance matter most.
Certified with CE, UL, FCC, and RoHS, this Cisco switch guarantees global compliance and trusted enterprise reliability. Whether you’re upgrading an existing network or deploying a new infrastructure, the WS-C4500X-F-16SFP+ delivers dependable, high-speed performance at scale.
Technical Specifications Table
| Category | Specification |
|---|---|
| Brand | Cisco |
| Model Number | WS-C4500X-F-16SFP+ |
| Series | Catalyst 4500-X |
| Form Factor | Rackmount (1U) |
| Ports | 16 × 10G SFP+ |
| Switching Capacity | Up to 800 Gbps |
| Forwarding Rate | Up to 250 Mpps |
| Power Supply | 1 × 715W PSU (Hot-Swappable) |
| Voltage Input | 100–240V AC |
| Frequency | 50/60Hz |
| Operating Temp. | 0°C – 40°C |
| Dimensions (Approx.) | 1.72 × 17.5 × 18.1 inches |
| Weight | ~8 kg |
| Country of Origin | Malaysia |
Compatible Products
-
Cisco Catalyst 4500X Series expansion modules
-
Cisco SFP+ 10G transceivers (SR, LR, ER)
-
Cisco DNA Center, Prime Infrastructure, Network Assistant
-
Compatible with Cisco UCS servers, Catalyst 3850, and Nexus switches
-
Works with Windows Server, Linux, and VMware ESXi network setups
Ideal Use Cases
-
Enterprise data center core or distribution layer
-
Campus aggregation switch
-
Virtualization and cloud networking environments
-
High-speed 10G backbone networks
-
Redundant, scalable corporate infrastructure
Comparison Angle
Compared to older Cisco Catalyst models, the WS-C4500X-F-16SFP+ provides:
-
Higher throughput (10G per port)
-
Smaller form factor (1U) for dense rack deployments
-
Integrated Layer 3 functionality without external modules
-
Better efficiency & cooling performance
This makes it a superior upgrade for high-bandwidth, low-latency network environments.
Cross-Sell / Upsell Suggestions
-
Cisco 10G SFP+ SR/LR modules
-
Cisco redundant power supply (715W or 1100W)
-
Cisco compatible fiber cables (OM3/OM4)
-
Cisco Catalyst 3850 / 9300 access switches
-
Cisco rackmount kits and cooling fans
