Description
Cisco WS-C2950C-24 Catalyst switch with 24 Fast Ethernet ports. Reliable, Layer 2 managed networking for SMBs, enterprise branches & secure LAN setups.
| specifications | Details |
|---|---|
| Brand | Cisco Systems, Inc. |
| Model | WS-C2950C-24 |
| Product Type | 24-Port 10/100 Fast Ethernet Switch |
| Manufacture Code | E- E011-01-013323(A) |

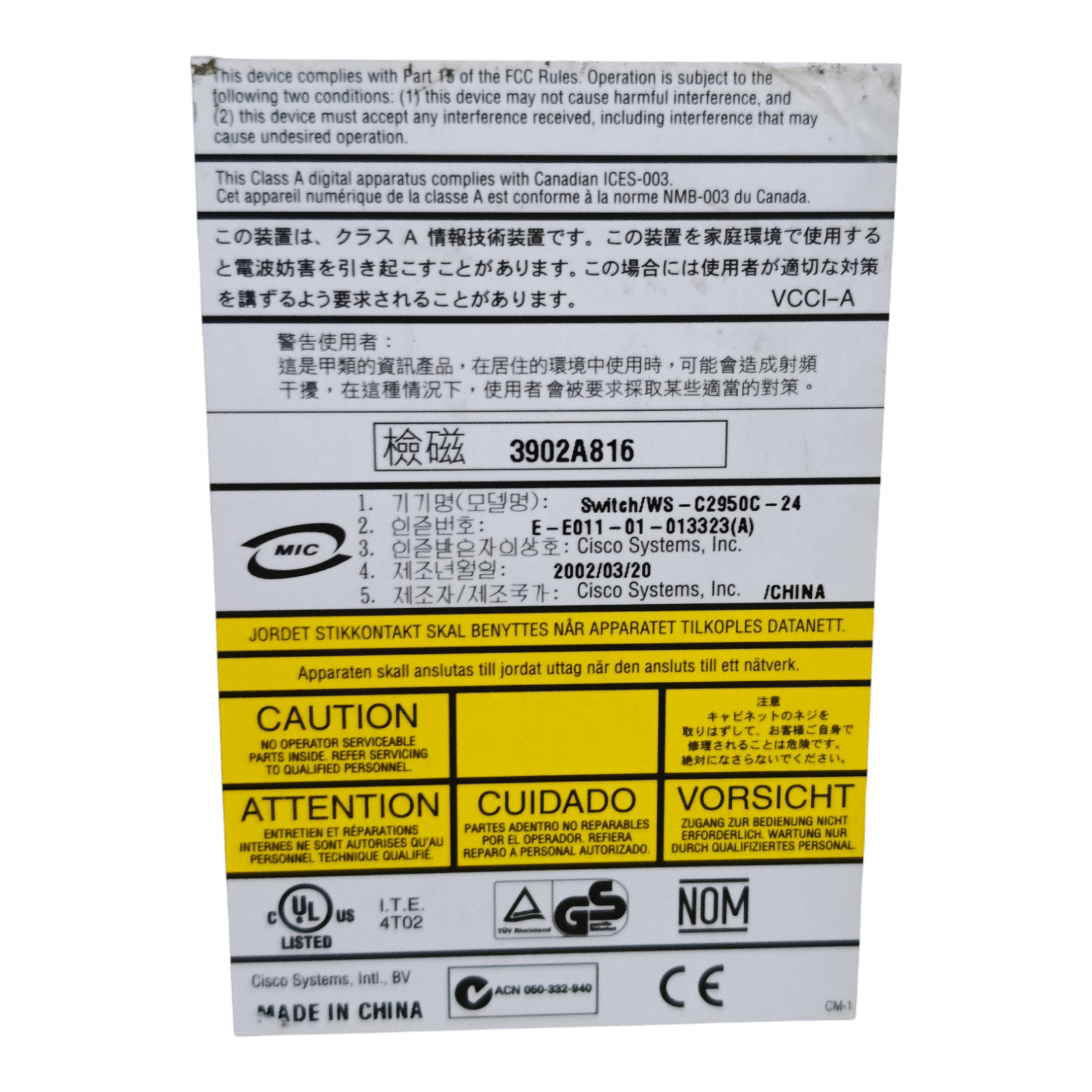

| Compliance | FCC Part 15, Canadian ICES-003, VCCI-A |
| Certifications | UL Listed (I.T.E 4T02), CE, NOM, GS |
| Safety Labels | Caution: No operator serviceable parts inside |
| Country of Origin | Made in China |
| Year Reference | 2002/03/20 (series compliance date) |
Product Features
-
24 × Fast Ethernet ports (10/100 Mbps) for reliable LAN connectivity
-
Cisco Catalyst 2950 Series Layer 2 switch with advanced management
-
Wire-speed performance with non-blocking architecture
-
QoS support for prioritizing critical traffic
-
Enterprise-grade security features including port-based authentication
-
Compact rackmount form factor for easy deployment
-
Certified & compliant (FCC, CE, UL, ICES-003, VCCI) for enterprise use
General Product Information
The Cisco WS-C2950C-24 24-Port Fast Ethernet Switch is a reliable and cost-effective managed Layer 2 switch, part of the renowned Cisco Catalyst 2950 Series. Designed for small-to-medium businesses, branch offices, and enterprise LANs, this switch delivers wire-speed performance across 24 Fast Ethernet ports, ensuring smooth and secure connectivity.
Built with Cisco IOS software, the WS-C2950C-24 provides advanced management, QoS (Quality of Service), and security features, enabling IT administrators to optimize network traffic and protect against unauthorized access. Its non-blocking architecture ensures consistent throughput, making it suitable for applications that require reliable data transmission.
Compact and rackmountable, this switch is easy to deploy in business environments where stability, compliance, and scalability are essential. With global certifications (FCC, CE, UL, NOM), the Cisco WS-C2950C-24 is a trusted solution for organizations that demand enterprise-grade networking at an affordable price point.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand | Cisco |
| Model | WS-C2950C-24 |
| Series | Catalyst 2950 |
| Ports | 24 × 10/100 Fast Ethernet |
| Switching Capacity | 8.8 Gbps |
| Forwarding Rate | 6.6 Mpps |
| Layer Support | Layer 2 managed |
| VLAN Support | Up to 4,096 VLAN IDs |
| QoS | Prioritization of voice, video, and data traffic |
| Security Features | Port-based authentication, ACLs |
| Software | Cisco IOS |
| Form Factor | Rackmount (1U) |
| Power Supply | Integrated AC (varies by region) |
| Compliance | FCC Part 15, ICES-003, VCCI-A |
| Certifications | CE, UL, NOM, GS |
| Dimensions | 1.73 × 17.5 × 9.5 in |
| Weight | ~9 lbs (4.1 kg) |
| Country of Origin | China |
Compatible Products
-
Cisco Catalyst 2900 Series family switches
-
Cisco routers & firewalls (ISR, ASA)
-
Cisco IOS management tools & accessories
-
Enterprise servers: Dell PowerEdge, HPE ProLiant, Cisco UCS
-
Compatible with Windows Server, Linux, VMware ESXi in LAN environments
Ideal Use Cases
-
Small-to-Medium Business LAN setups
-
Branch office networking infrastructure
-
Enterprise edge connectivity
-
Secure office & campus LAN deployments
-
VOIP, video conferencing, and IP surveillance networks
-
Affordable managed switch for budget-conscious IT environments
Comparison Angle
Compared to unmanaged or consumer-grade switches, the Cisco WS-C2950C-24 offers:
-
Enterprise-grade security (ACLs, port authentication)
-
Advanced management via Cisco IOS software
-
Wire-speed Fast Ethernet switching with non-blocking performance
-
Better VLAN/QoS support for converged networks
-
Proven reliability trusted in enterprises worldwide
Cross-Sell / Upsell Suggestions
-
Cisco Catalyst 2950G-24 (Gigabit version)
-
Cisco Catalyst 2960 Series (next-gen replacement)
-
Cisco console cables & rackmount kits
-
Cisco SFP uplink modules (for compatible Catalyst models)
-
Cisco ASA or Firepower firewalls for secure deployments
