Description

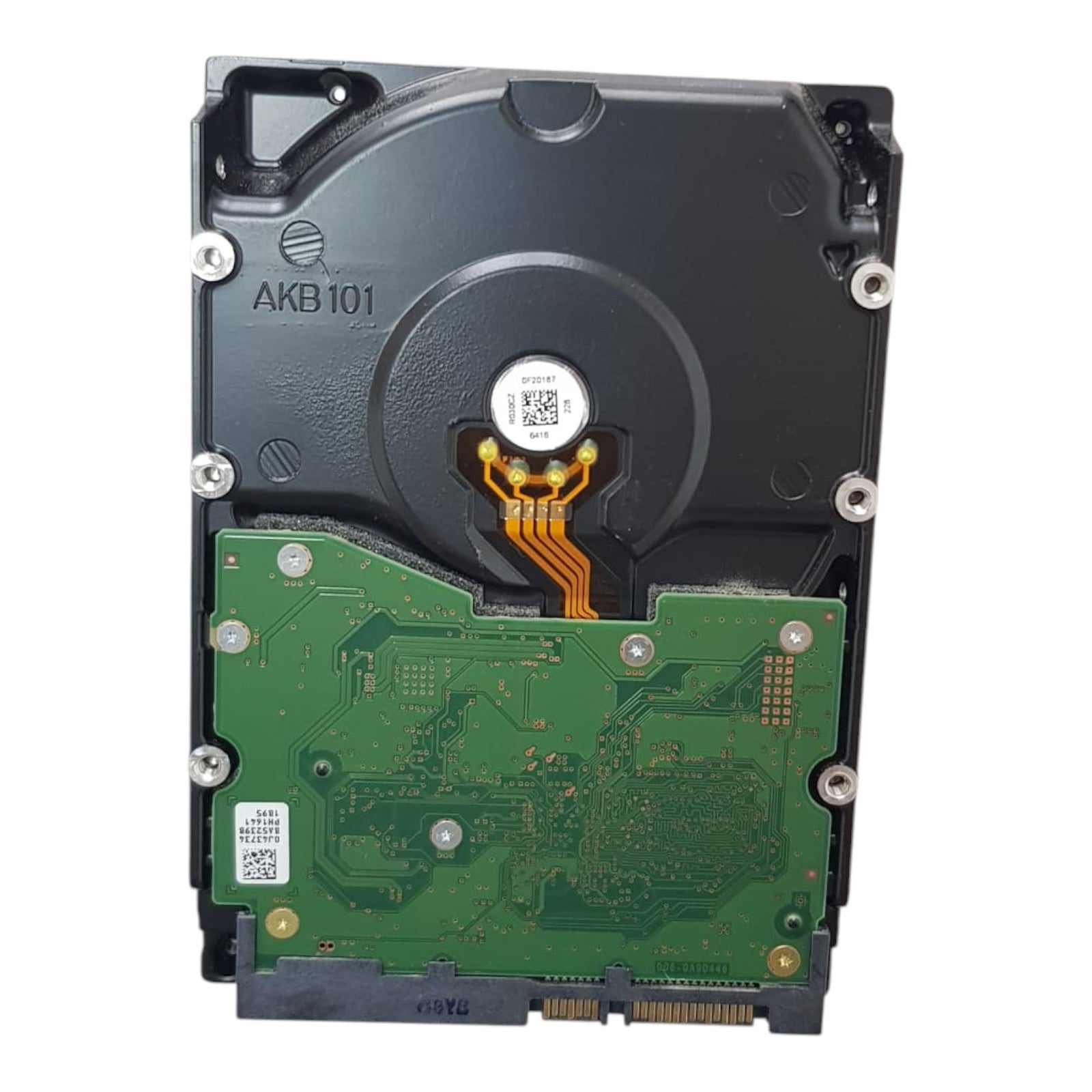

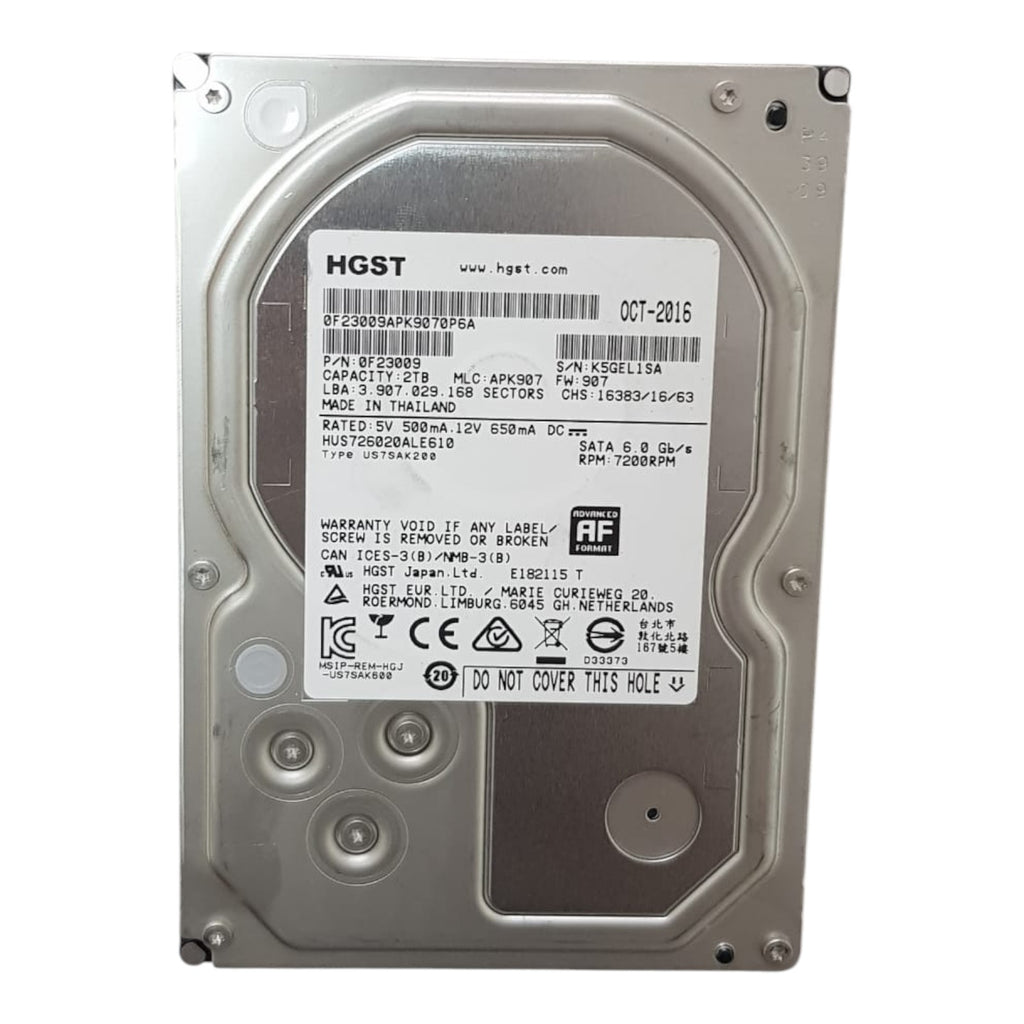

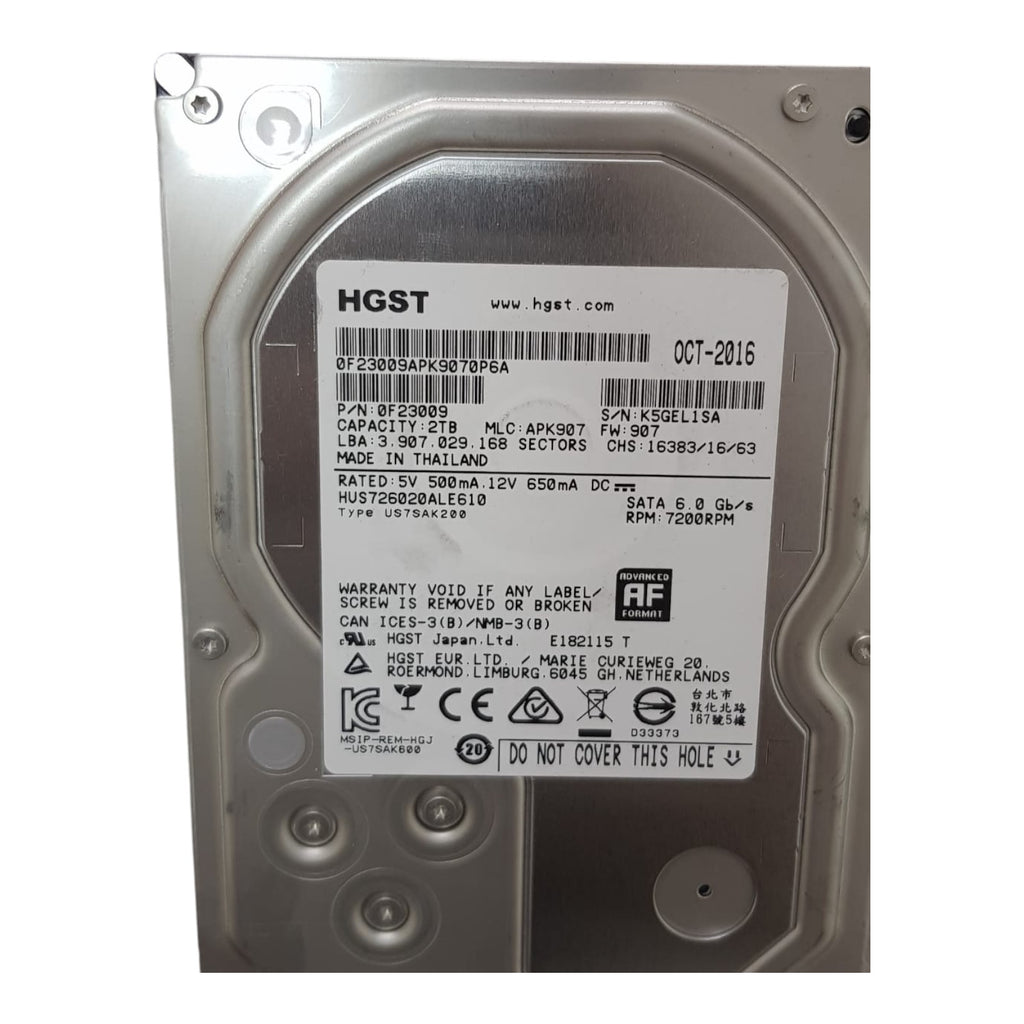

HGST 2TB Ultrastar 3.5" SATA HDDs (0F23009). 7200RPM, 6Gb/s speed, enterprise-grade reliability. Perfect for PCs, servers & storage arrays.
| Specification | Details |
|---|---|
| Brand | HGST |
| Part Number | 0F23009 |
| Model Number | HUS726020ALE610 |
| Serial Prefix | K5GEL1SA (example) |
| Capacity | 2TB |
| Interface | SATA 6.0 Gb/s |
| Form Factor | 3.5-inch |
| Speed (RPM) | 7200 RPM |
| LBA | 3,907,029,168 sectors |
| CHS | 16383/16/63 |
| Rated Power | +5V 500mA, +12V 650mA |
| Advanced Format | Yes (AF) |
| Firmware | FW: 907 |
| Country of Origin | Made in Thailand |
| Certifications | CE, KC, TUV, RoHS, VCCI, UL, FCC |
| Date Code | OCT-2016 |
Product Features
-
HGST 2TB Ultrastar HDDs
-
Enterprise-grade Ultrastar line built for durability and uptime
-
7200 RPM rotation speed for high performance
-
SATA III 6Gb/s interface for fast data transfer
-
3.5-inch form factor – standard for desktops & servers
-
Reliable HGST engineering, trusted in enterprise environments
-
Shock-resistant and power-efficient design
-
Compatible with a wide range of PCs, servers, and NAS devices
General Product Information
The HGST Ultrastar 2TB SATA HDD (0F23009 / HUS726020ALE610) delivers a powerful combination of performance, reliability, and storage capacity for both personal and enterprise use. This is perfect for building storage arrays, upgrading desktops, or enhancing server capacity.
With a 7200 RPM spindle speed and 6Gb/s SATA interface, these drives provide fast read/write performance suitable for demanding workloads, including virtualization, databases, and high-capacity file storage. The 3.5-inch standard form factor makes them compatible with most PCs, workstations, and enterprise servers.
Built as part of HGST’s renowned Ultrastar product line, these drives are engineered for 24/7 operation, offering long-term reliability and consistent uptime. Their Advanced Format technology ensures optimized storage efficiency and data protection, while the low power draw (5V/12V) makes them energy efficient.
Whether you’re expanding a data center, configuring a RAID array, or simply upgrading a desktop for high-capacity storage, the HGST 2TB Ultrastar HDD is a dependable choice trusted by IT professionals worldwide.
Technical Specifications Table
| Specification | Details |
|---|---|
| Brand | HGST |
| Series | Ultrastar |
| Part Number | 0F23009 |
| Model | HUS726020ALE610 |
| Capacity | 2TB |
| Form Factor | 3.5-inch |
| Interface | SATA III 6Gb/s |
| Rotational Speed | 7200 RPM |
| LBA | 3,907,029,168 sectors |
| CHS | 16383/16/63 |
| Rated Voltage/Current | +5V 500mA, +12V 650mA |
| Cache | 64MB (typical) |
| Advanced Format | Yes (AF) |
| Firmware Version | FW: 907 |
| Country of Manufacture | Thailand |
| Dimensions (HxWxD) | 26.1mm x 101.6mm x 147mm |
| Weight | ~700g each |
Compatible Products
-
Desktop PCs – Intel & AMD chipsets with SATA III support
-
Workstations & Servers – Dell PowerEdge, HP ProLiant, IBM, Lenovo servers
-
NAS Systems – Synology, QNAP, FreeNAS, TrueNAS
-
Operating Systems – Windows, Linux, VMware ESXi, FreeBSD
-
RAID controllers with SATA/SAS support
Ideal Use Cases
-
Data centers & enterprise servers
-
NAS & storage arrays for small/medium businesses
-
Workstations for design, rendering & content creation
-
Video editing & media storage requiring large fast drives
-
Gaming PCs for large libraries & fast load times
-
Backup & archival systems with long-term reliability
Comparison Angle
Compared to consumer-grade drives, the HGST Ultrastar series provides higher endurance, 24/7 operation capability, and superior reliability. Unlike older 5400 RPM models, these drives run at 7200 RPM, delivering faster data access and transfer speeds. The bundle of 3 drives adds further value for RAID arrays and multi-system upgrades.
Cross-Sell / Upsell Suggestions
-
HGST Ultrastar 4TB or 6TB HDDs – for larger storage needs
-
Enterprise SSDs – hybrid storage solutions for speed + capacity
-
RAID Controllers (LSI/Dell/HP) – for optimized array performance
-
NAS Enclosures – Synology, QNAP, or custom storage builds
-
Backup Solutions – tape drives or cloud integration for redundancy
